UPS IST7 (10KVA-40KVA)
User Manual 3 Installation
27

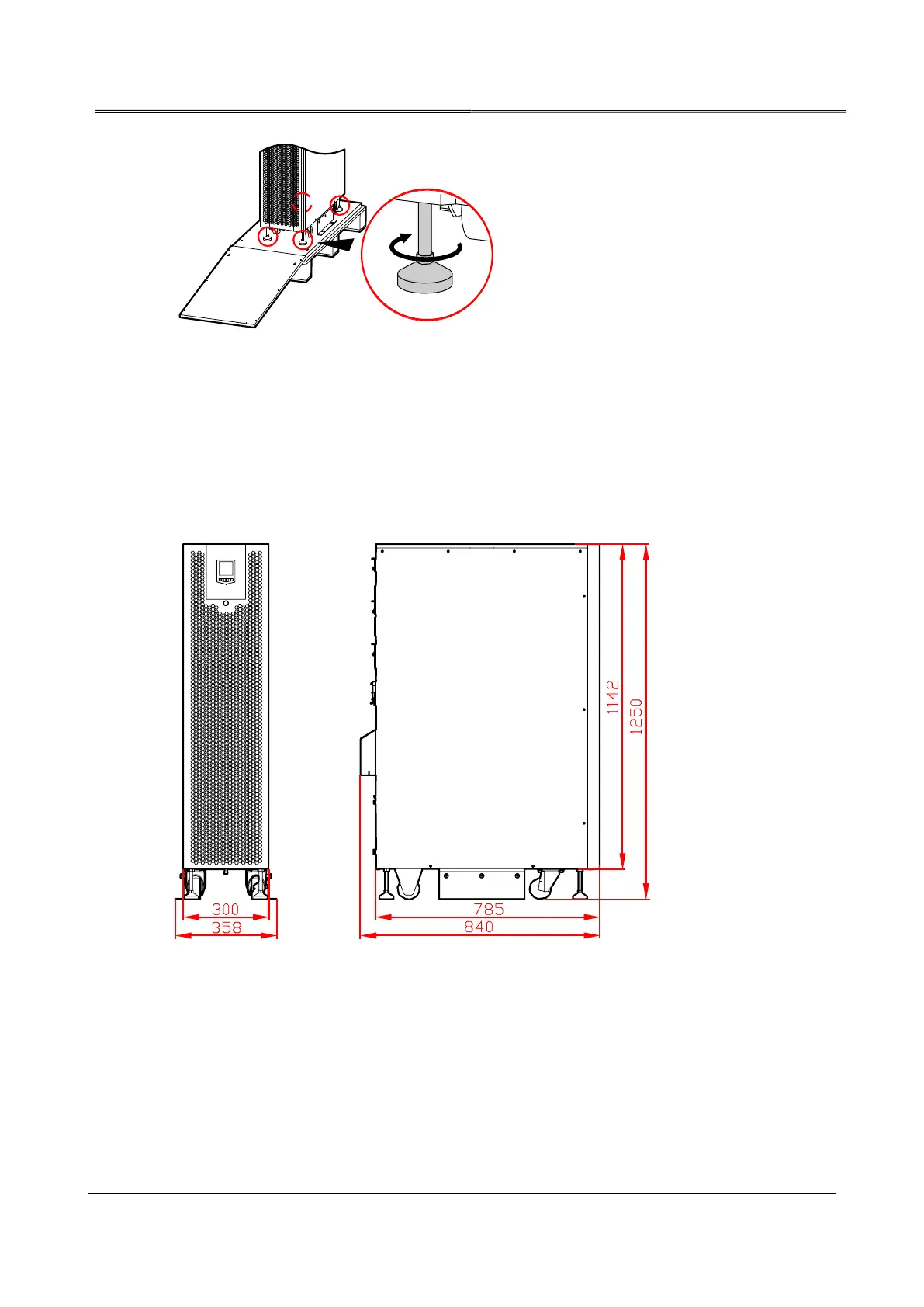

Screw up the supporting feet brackets
Then slip the UPS along the oblique board to ground slowly.
3.4 Mechanical Installation
Determine and plan the installation position according to the device and install space requirement.
Outer dimensions of UPS IST7 30-40 KVA (unit: mm)
