4 Touch Screen Operation
UPS IST7 (10KVA-40KVA)
User Manual
42

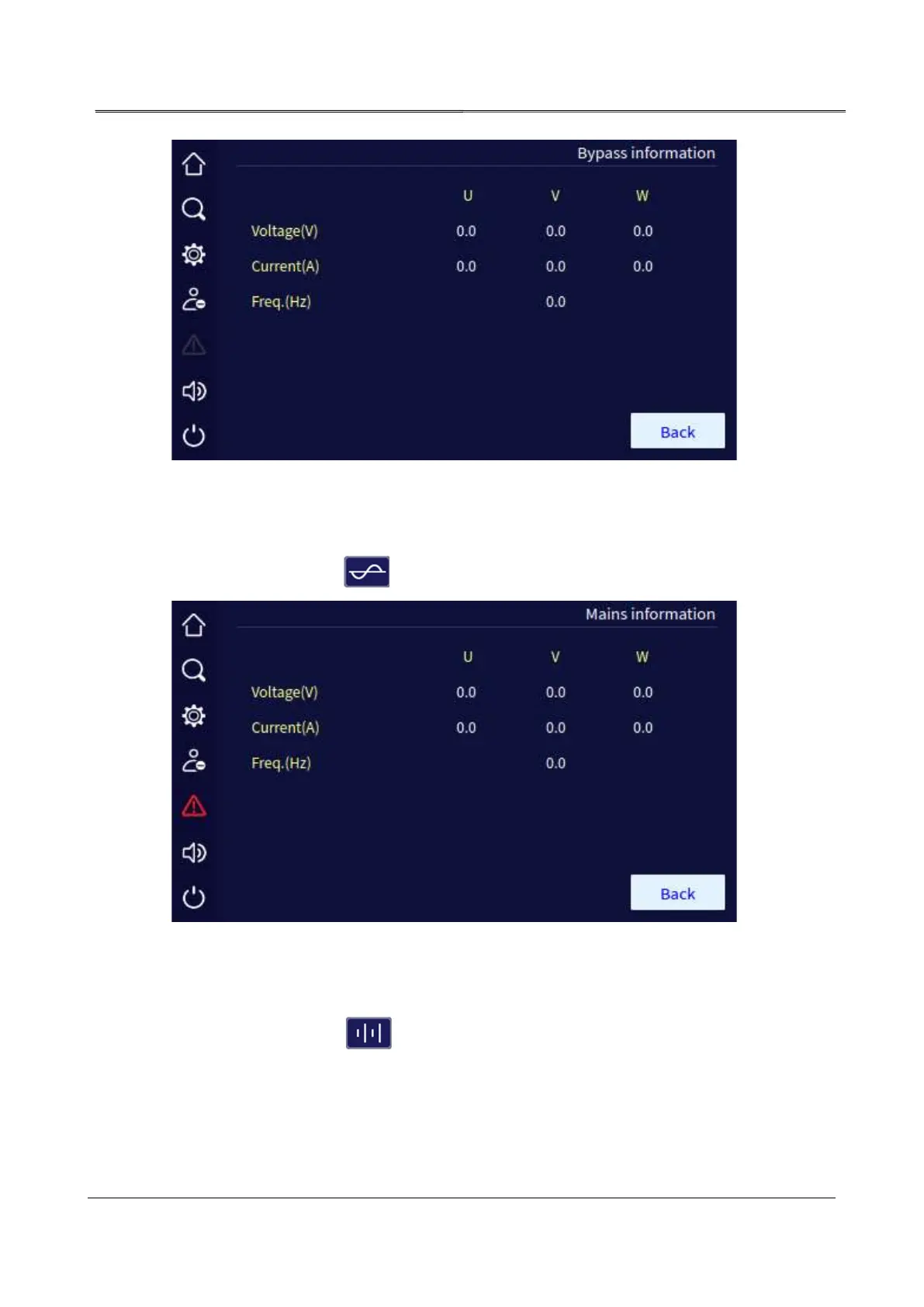

Bypass information page
4.2.3 Mains Information Page
In the main page, click " " icon, it will enter the mains information page.
Mains information page
4.2.4 Battery Information Page
In the main page, click " " icon, it will enter the battery information page. When battery
is discharging, it shows discharge current. When battery is equalizing charging or float
charging, it will show charge current. The battery status shows the current battery status:
discharge, equalized charge, floating charge. Besides, the page also includes the battery
remaining time capacity and remaining time, etc.
