UPS IST7 (10KVA-40KVA)
User Manual 3 Installation
29

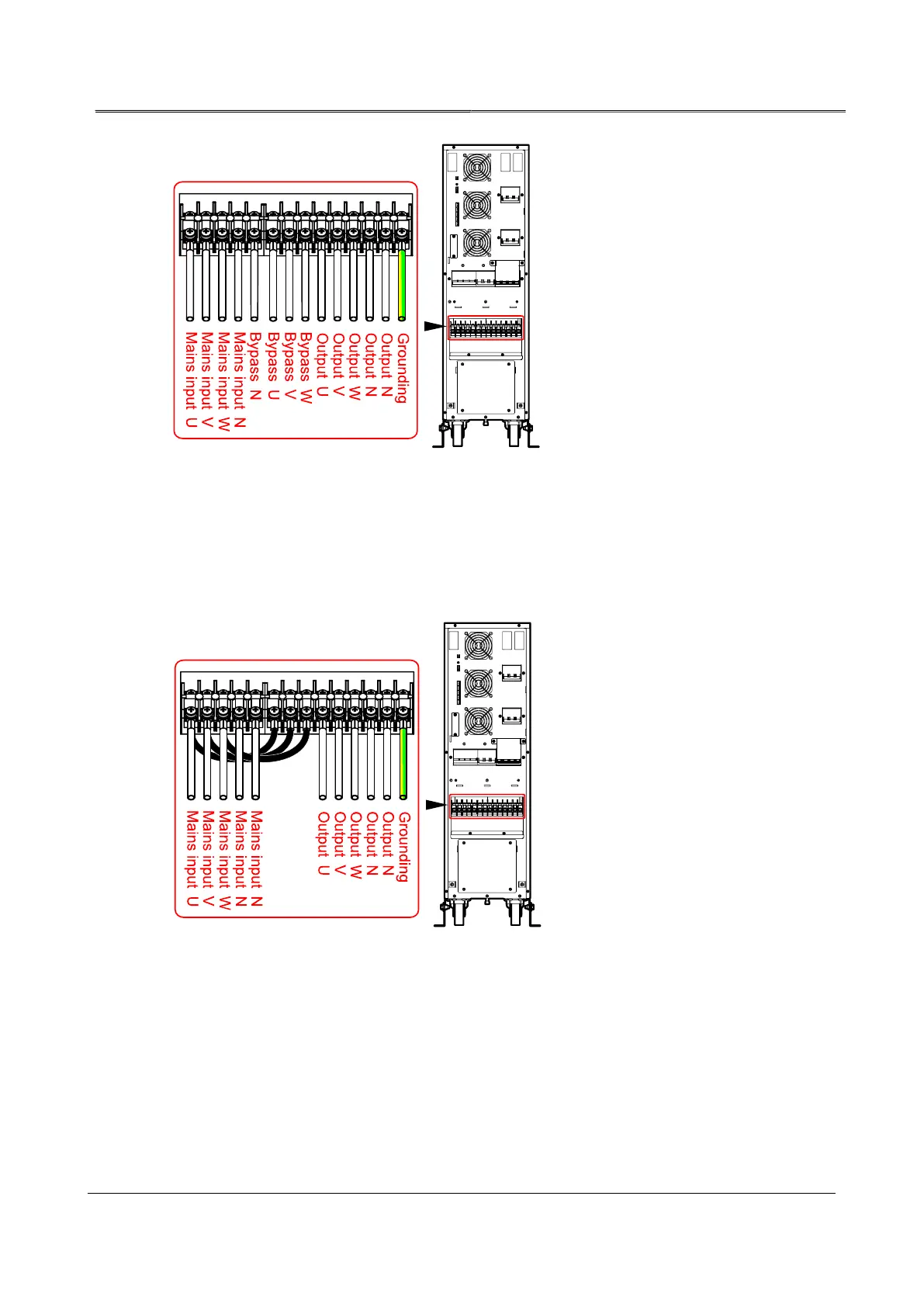

Wiring diagram of 33 mode
Wiring method 2: One input sources for mains and bypass
The bypass input is connected to the mains input by short circuit wire when the mains input
and bypass input are same sources.
Wiring diagram of 33 mode
31 mode
Take out a couple of 1# and 2# connector jumper (1# and 2# connector jumper is optional),
connect them to the wiring terminal of UPS. Then connect the wires to corresponding port
according to the wiring diagram.
