3 Installation
UPS IST7 (10KVA-40KVA)
User Manual
36
M
33 U V W N N U V W U V W N
31 U V W
INPUT OUTPU TBY PAS S
N
L
N
L
M
33 U V W N N U V W U V W N
31 U V W
INPUT OUTPU TBY PAS S
N
L
N
L

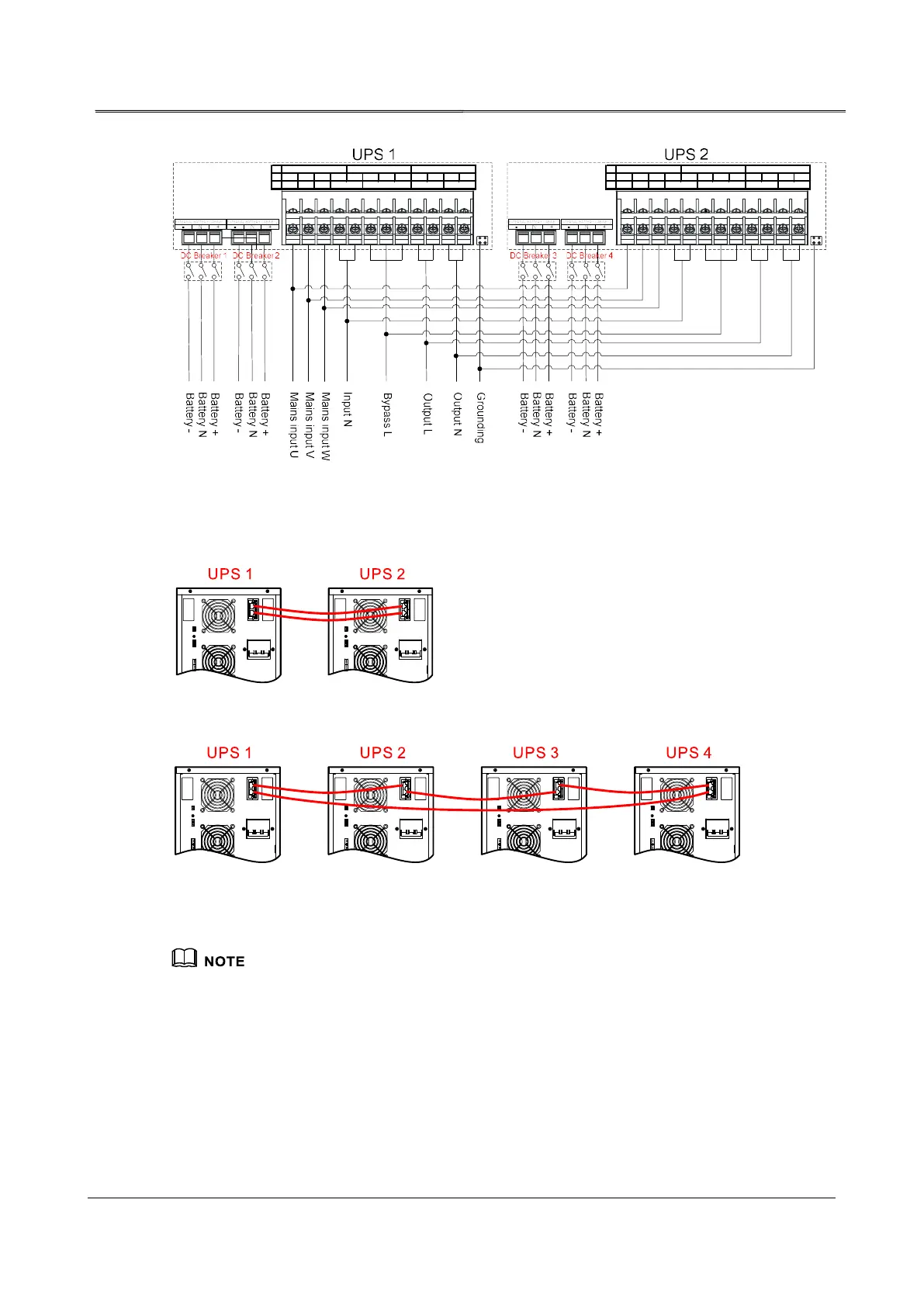

31 mode parallel system wiring diagram of IST7 30-40KVA
Connect the parallel port of each UPS in parallel by parallel wires.
Double parallel wiring diagram of IST7 10kVA
Four parallel wiring diagram of IST7 10KVA
The parallel wiring operation of IST7 series (10kVA-40kVA) is the same but the parallel port position of
IST7 series (30kVA-40kVA) is different with IST710, above we take IST710 as an example to illustrate.
When the battery pack is shared by UPS in the parallel system, please make sure that all battery
parameters of each UPS are consistent, such as battery capacity, battery number, charging voltage and
charging current.
