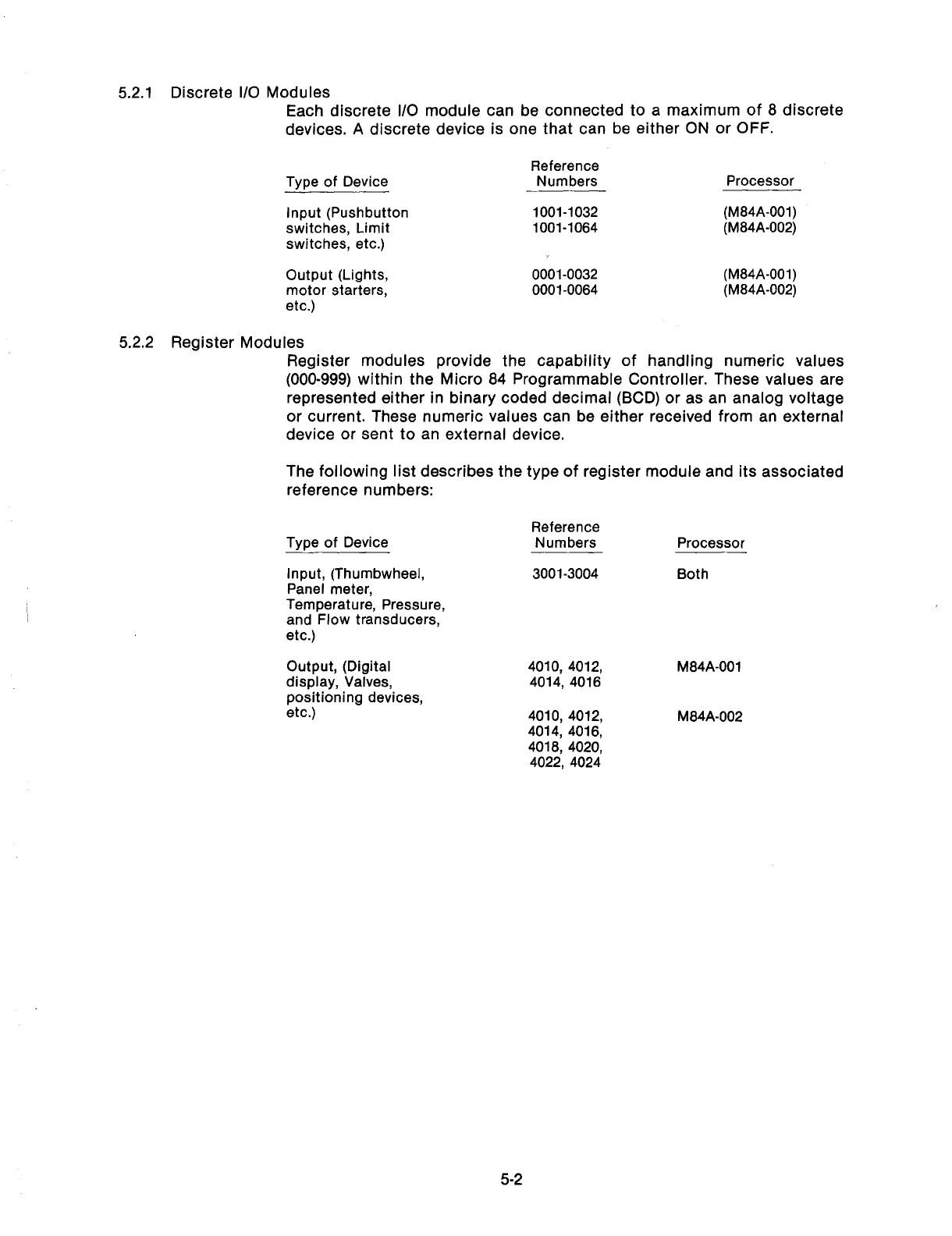

52.1 Discrete l/O Modules
Each discrete l/O module can be connected to a maximum of 8 discrete
devices. A discrete device is one that can be either ON or OFF.
Type of Device
Input (Pushbutton
switches, Limit
switches, etc.)
Reference
Numbers
1001-1032
1001-1064
Processor
(M84A-001)
(M84A-002)
Output (Lights,
motor starters,
etc.)
0001-0032
(M84A-001)
0001-0064
(M84A-002)
5.2.2 Register Modules
Register modules provide the capability of handling numeric values
(000-999) within the Micro 84 Programmable Controller. These values are
represented either in binary coded decimal (BCD) or as an analog voltage
or current. These numeric values can be either received from an external
device or sent to an external device.
The following list describes the type of register module and its associated
reference numbers:
Type of Device
Input, (Thumbwheel,
Panel meter,
Temperature, Pressure,
and Flow transducers,
etc.)
Reference
Numbers
3001-3004
Output,
(Digital
display,
Valves,
positioning devices,
etc.)
4010, 4012,
4014, 4016
4010, 4012,
4014, 4016,
4018, 4020,
4022, 4024
Processor
~-
Both
M84A-001
M84A-002
