7.5K
SBS (THRESWXD SWITCH 1
Al
WTICAL COUPLER
iZ”lRAL
75K
Fli!ziT

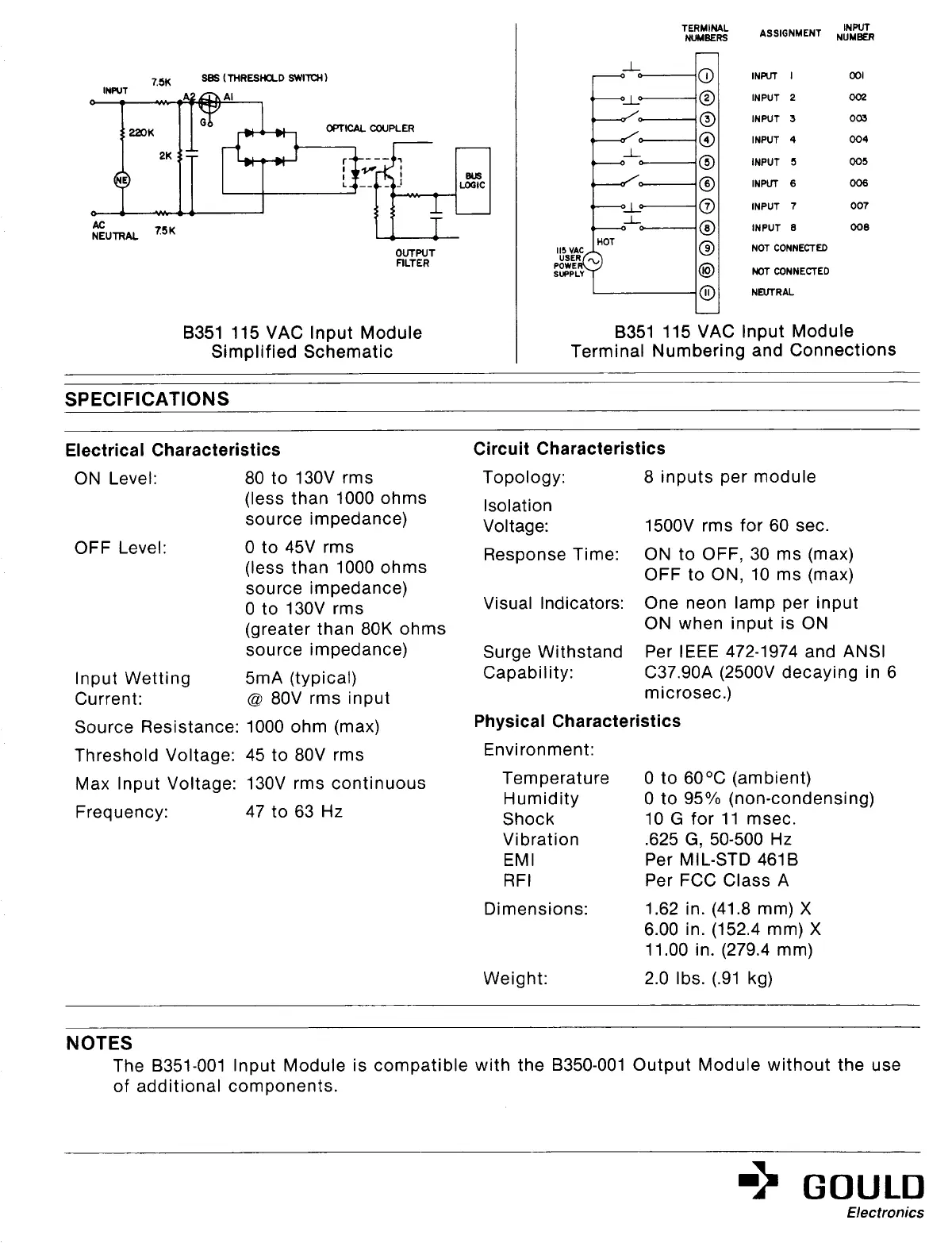

8351 115 VAC Input Module
Simplified Schematic
TERMINAL
NUMBERS
ASSIGNMENT
INPUT
NUMBER
INPUT
I 001
INPUT 2 002
INPUT 3 OD3
INPUT 4 004
INPUT 5 005
INPUT 6 006
INPUT 7 007
INPUT 6 006
NOT CONNECTED
NOTCONNECTED
NEUTRAL
B351 115 VAC Input Module
Terminal Numbering and Connections
SPECIFICATIONS
Electrical Characteristics
ON
Level:
OFF Level:
Input Wetting
Current:
Source Resistance:
Threshold Voltage:
Max Input Voltage:
Frequency:
80
to 130V rms
(less than 1000 ohms
source impedance)
0 to 45V rms
(less than 1000 ohms
source impedance)
0 to 130V rms
(greater than 80K ohms
source impedance)
5mA (typical)
@I 80V rms input
1000 ohm (max)
45 to 80V rms
130V rms continuous
47 to 63 Hz
Circuit Characteristics
Topology:
Isolation
Voltage:
Response Time:
Visual Indicators:
Surge Withstand
Capability:
8 inputs per module
1500V rms for 60 sec.
ON to OFF, 30 ms (max)
OFF to ON, 10 ms (max)
One neon lamp per input
ON when input is ON
Per IEEE 472-1974 and ANSI
C37.90A (2500V decaying in 6
microsec.)
Physical Characteristics
Environment:
Temperature 0 to 60°C (ambient)
Humidity 0 to 95% (non-condensing)
Shock
10 G for 11 msec.
Vibration .625 G, 50-500 Hz
EMI
Per MIL-STD 461B
RFI Per FCC Class A
Dimensions: 1.62 in. (41.8 mm) X
6.00 in. (152.4 mm) X
11.00 in. (279.4 mm)
Weight:
2.0 Ibs. (.91 kg)
NOTES
The B351-001 Input Module is compatible with the B350-001 Output Module without the use
of additional components.
-i GOULD
Electronics
