VOtiAGE
SOURCE

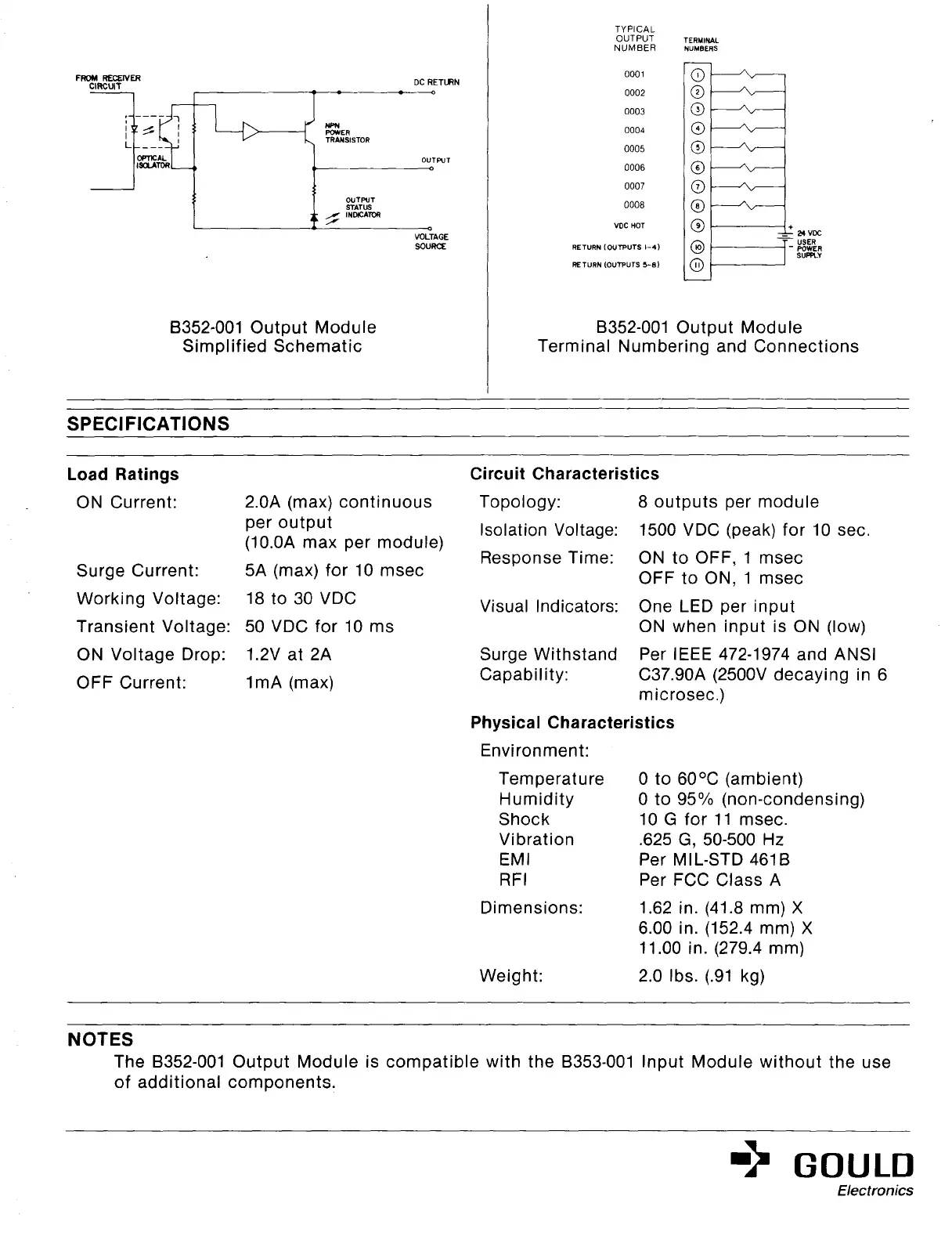

B352-001 Output Module
B352-001 Output Module
Simplified Schematic
Terminal Numbering and Connections
TYPICAL
OUTPUT
NUMBER
0001
0002
0003
0004
0005
0006
0007
0006
“DC HOT
SPECIFICATIONS
Load Ratings
ON
Current: 2.OA (max) continuous
per output
(lO.OA max per module)
Surge Current: 5A (max) for 10 msec
Working Voltage:
18 to 30 VDC
Transient Voltage: 50 VDC for 10 ms
ON Voltage Drop: 1.2V at 2A
OFF Current: 1mA (max)
Circuit Characteristics
Topology:
8 outputs per module
Isolation Voltage:
1500 VDC (peak) for 10 sec.
Response Time:
ON to OFF, 1 msec
OFF to ON, 1 msec
Visual Indicators: One LED per input
ON when input is ON (low)
Surge Withstand Per IEEE 472-1974 and ANSI
Capability:
C37.90A (2500V decaying in 6
microsec.)
Physical Characteristics
Environment:
Temperature 0 to 60°C (ambient)
Humidity
0 to 95% (non-condensing)
Shock
10 G for 11 msec.
Vibration
.625 G, 50500 Hz
EMI
Per MIL-STD 461B
RFI
Per FCC Class A
Dimensions:
1.62 in. (41.8 mm) X
6.00 in. (152.4 mm) X
11.00 in. (279.4 mm)
Weight:
2.0 Ibs. (.91 kg)
NOTES
The B352-001 Output Module is compatible with the B353-001 Input Module without the use
of additional components.
m> GOULD
Electronics
