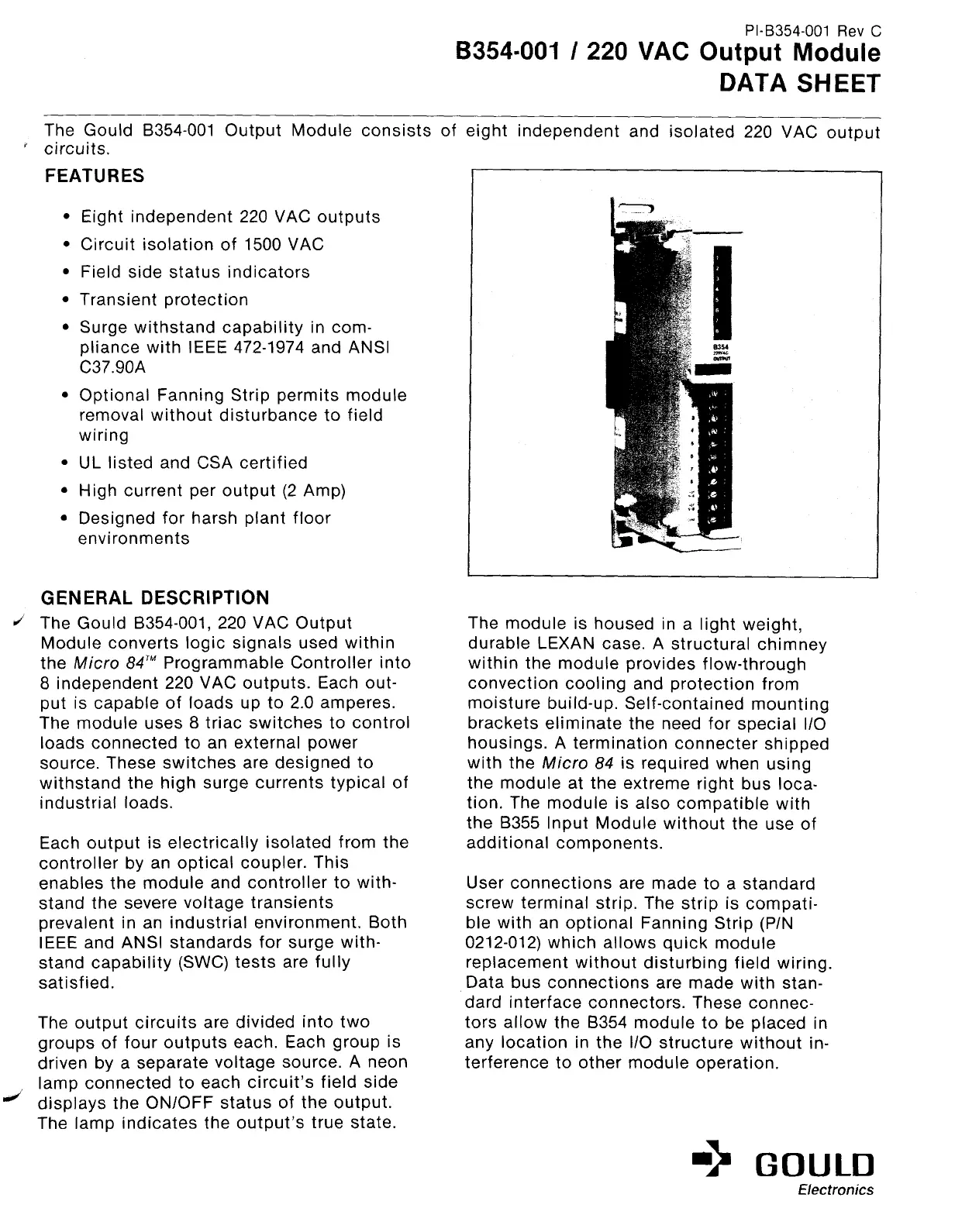

PI-B354-001 Rev C
B354=001 I 220 VAC Output Module
DATA SHEET
The Gould B354-001 Output Module consists of eight independent and isolated 220 VAC output
v
circuits.
FEATURES
Eight independent 220 VAC outputs
Circuit isolation of 1500 VAC
Field side status indicators
Transient protection
Surge withstand capability in com-
pliance with IEEE 472-1974 and ANSI
C37.90A
Optional Fanning Strip permits module
removal without disturbance to field
wiring
UL listed and CSA certified
High current per output (2 Amp)
Designed for harsh plant floor
environments
GENERAL DESCRIPTION
d
The Gould B354-001, 220 VAC Output
Module converts logic signals used within
the Micro 84’” Programmable Controller into
8 independent 220 VAC outputs. Each out-
put is capable of loads up to 2.0 amperes.
The module uses 8 triac switches to control
loads connected to an external power
source. These switches are designed to
withstand the high surge currents typical of
industrial loads.
Each output is electrically isolated from the
controller by an optical coupler. This
enables the module and controller to with-
stand the severe voltage transients
prevalent in an industrial environment. Both
IEEE and ANSI standards for surge with-
stand capability (SWC) tests are fully
satisfied.
The output circuits are divided into two
groups of four outputs each. Each group is
driven by a separate voltage source. A neon
,
lamp connected to each circuit’s field side
ri displays the ON/OFF status of the output.
The lamp indicates the output’s true state.
The module is housed in a light weight,
durable LEXAN case. A structural chimney
within the module provides flow-through
convection cooling and protection from
moisture build-up. Self-contained mounting
brackets eliminate the need for special l/O
housings. A termination connecter shipped
with the Micro 84 is required when using
the module at the extreme right bus loca-
tion. The module is also compatible with
the B355 Input Module without the use of
additional components.
User connections are made to a standard
screw terminal strip. The strip is compati-
ble with an optional Fanning Strip (P/N
0212-012) which allows quick module
replacement without disturbing field wiring.
Data bus connections are made with stan-
dard interface connectors. These connec-
tors allow the B354 module to be placed in
any location in the l/O structure without in-
terference to other module operation.
=i!> GOULD
Electronics
