TRIAC SNUBBER
OUTPUT
OUTPUT
INDICATOR
NEUTRAL

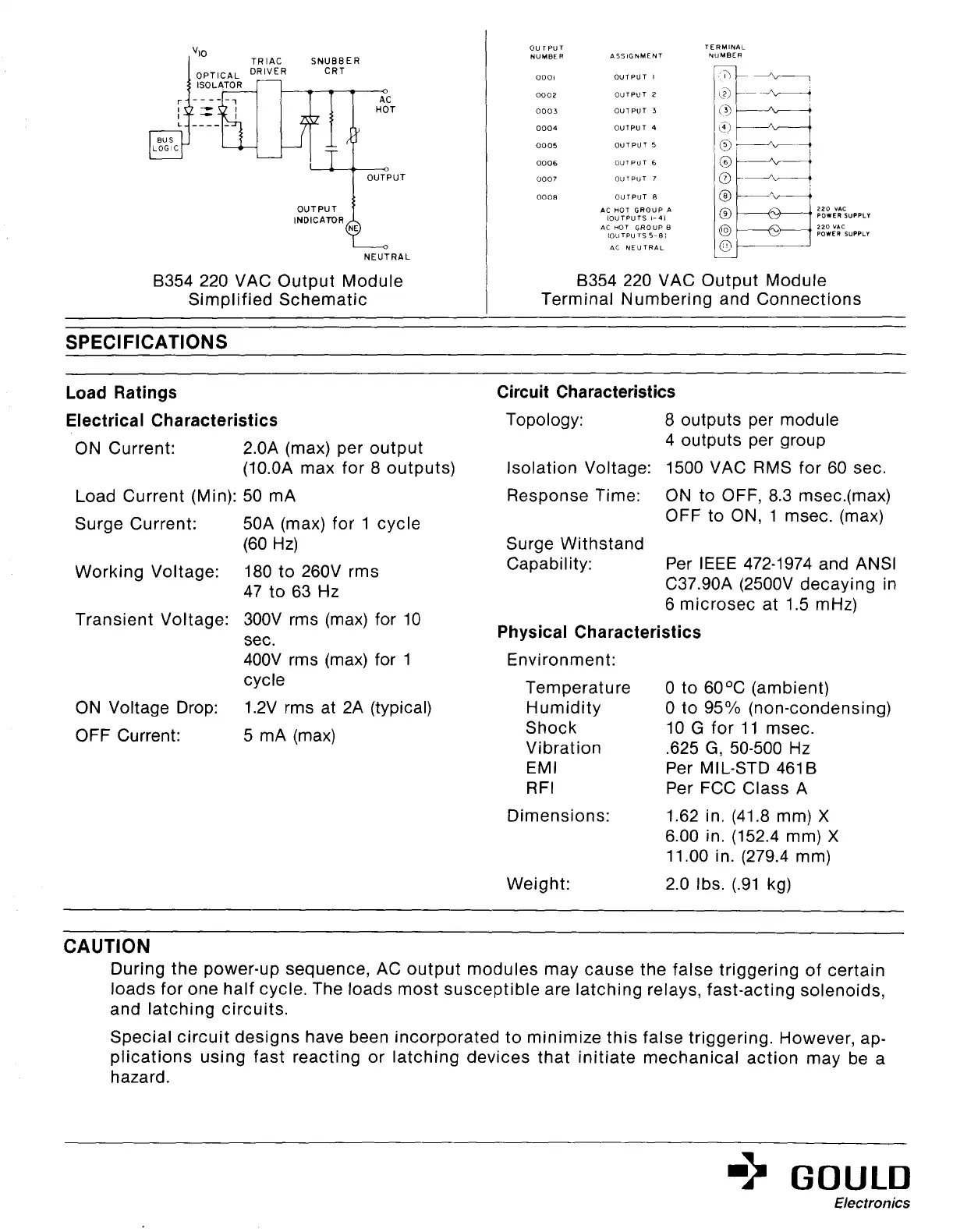

B354 220 VAC Output Module
6354 220 VAC Output Module
Simplified Schematic
Terminal Numbering and Connections
SPECIFICATIONS
Load Ratings
Electrical Characteristics
ON Current:
Circuit Characteristics
Topology:
8 outputs per module
2.OA (max) per output
(iO.OA max for 8 outputs)
50 mA
4 outputs per group
Isolation Voltage: 1500 VAC RMS for 60 sec.
Response Time: ON to OFF, 8.3 msec.(max)
OFF to ON,
1
msec. (max)
Surge Withstand
Capability:
Per IEEE 472-1974 and ANSI
C37.90A (2500V decaying in
6 microsec at 1.5 mHz)
Load Current (Min):
Surge Current:
Working Voltage:
Transient Voltage:
ON Voltage Drop:
OFF Current:
50A (max) for 1 cycle
(60 Hz)
180 to 260V rms
47 to 63 Hz
300V rms (max) for 10
sec.
400V rms (max) for 1
cycle
1.2V rms at 2A (typical)
5 mA (max)
Physical Characteristics
Environment:
Temperature 0 to 60°C (ambient)
Humidity
0 to 95% (non-condensing)
Shock
10 G for 11 msec.
Vibration .625 G, 50-500 Hz
EMI
Per MIL-STD 4616
RFI
Per FCC Class A
Dimensions:
1.62 in. (41.8 mm) X
6.00 in. (152.4 mm) X
11.00 in. (279.4 mm)
Weight:
2.0 Ibs. (.91 kg)
CAUTION
During the power-up sequence, AC output modules may cause the false triggering of certain
loads for one half cycle. The loads most susceptible are latching relays, fast-acting solenoids,
and latching circuits.
Special circuit designs have been incorporated to minimize this false triggering. However, ap-
plications using fast reacting or latching devices that initiate mechanical action may be a
hazard.
+ GOULD
Electronics
