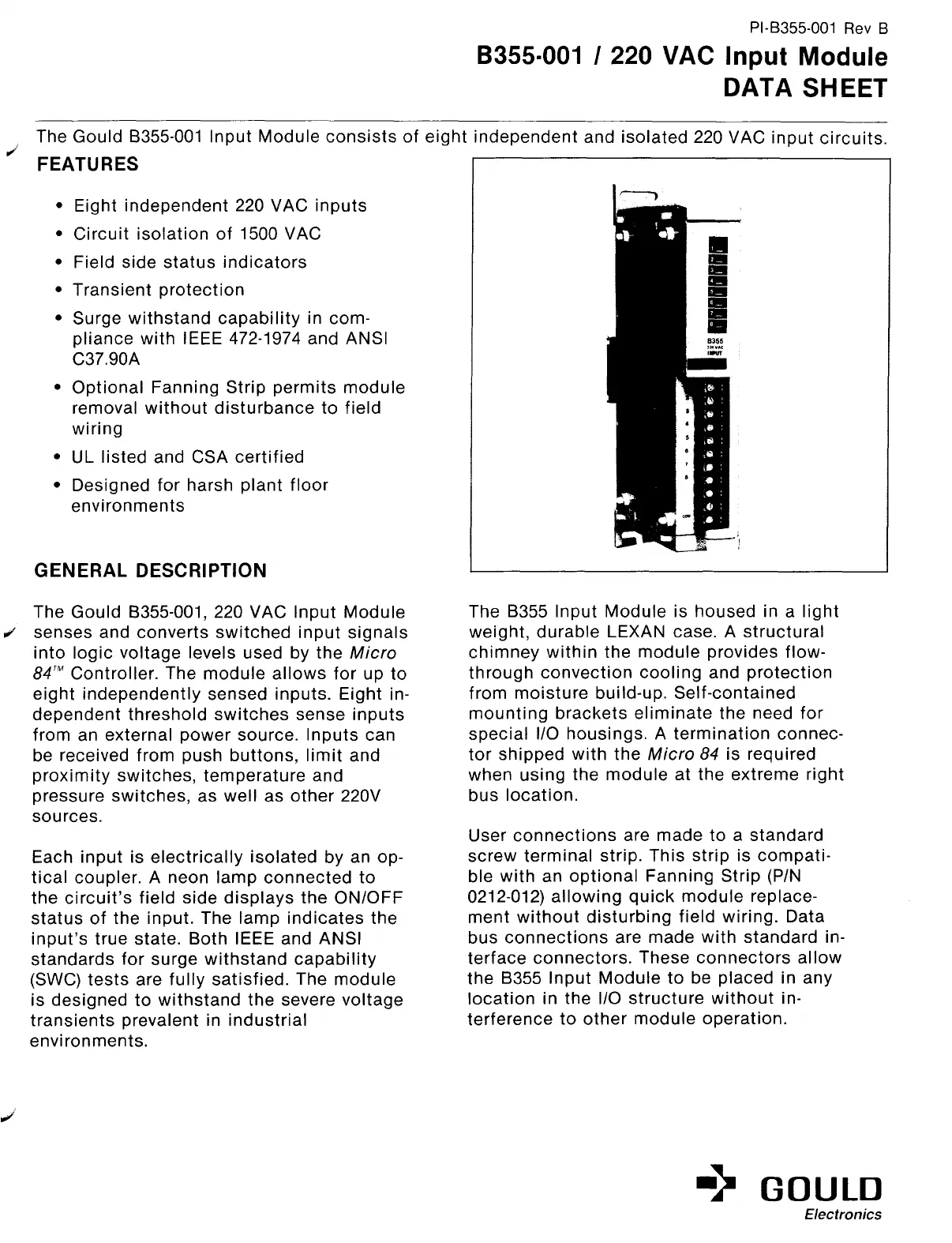

PI-B355001 Rev B
B355001 I220 VAC Input Module
DATA SHEET
The Gould B355001 Input Module consists of eight independent and isolated 220 VAC input circuits.
J FEATURES
Eight independent 220 VAC inputs
Circuit isolation of 1500 VAC
Field side status indicators
Transient protection
Surge withstand capability in com-
pliance with IEEE 472-1974 and ANSI
C37.90A
Optional Fanning Strip permits module
removal without disturbance to field
wiring
UL listed and CSA certified
Designed for harsh plant floor
environments
GENERAL DESCRIPTION
The Gould B355-001, 220 VAC Input Module
d senses and converts switched input signals
into logic voltage levels used by the Micro
84’” Controller. The module allows for up to
eight independently sensed inputs. Eight in-
dependent threshold switches sense inputs
from an external power source. Inputs can
be received from push buttons, limit and
proximity switches, temperature and
pressure switches, as well as other 220V
sources.
Each input is electrically isolated by an op-
tical coupler. A neon lamp connected to
the circuit’s field side displays the ON/OFF
status of the input. The lamp indicates the
input’s true state. Both IEEE and ANSI
standards for surge withstand capability
(SWC) tests are fully satisfied. The module
is designed to withstand the severe voltage
transients prevalent in industrial
environments.
-i GOULD
Electronics
