THUMBWHEEL OR OTHER
BCD DEVICE
0371
TERMINAL
UNITS
TENS HUNDREDS
STRIP
DIGIT DIGIT
DIGIT
REG I
I
I
(STROBE I1
-__
-1
DATA
CHANGE
SWITCH -
I I
(OPTIONAL) _
/ 2 4 e
$0 20 $0 80 100*004w ‘0.0
4
5
6
7
B
9
IO
II
J
/
’
BCD
o~PuTS gy
~~siQzL~
ACTIVE BCD DEVICE

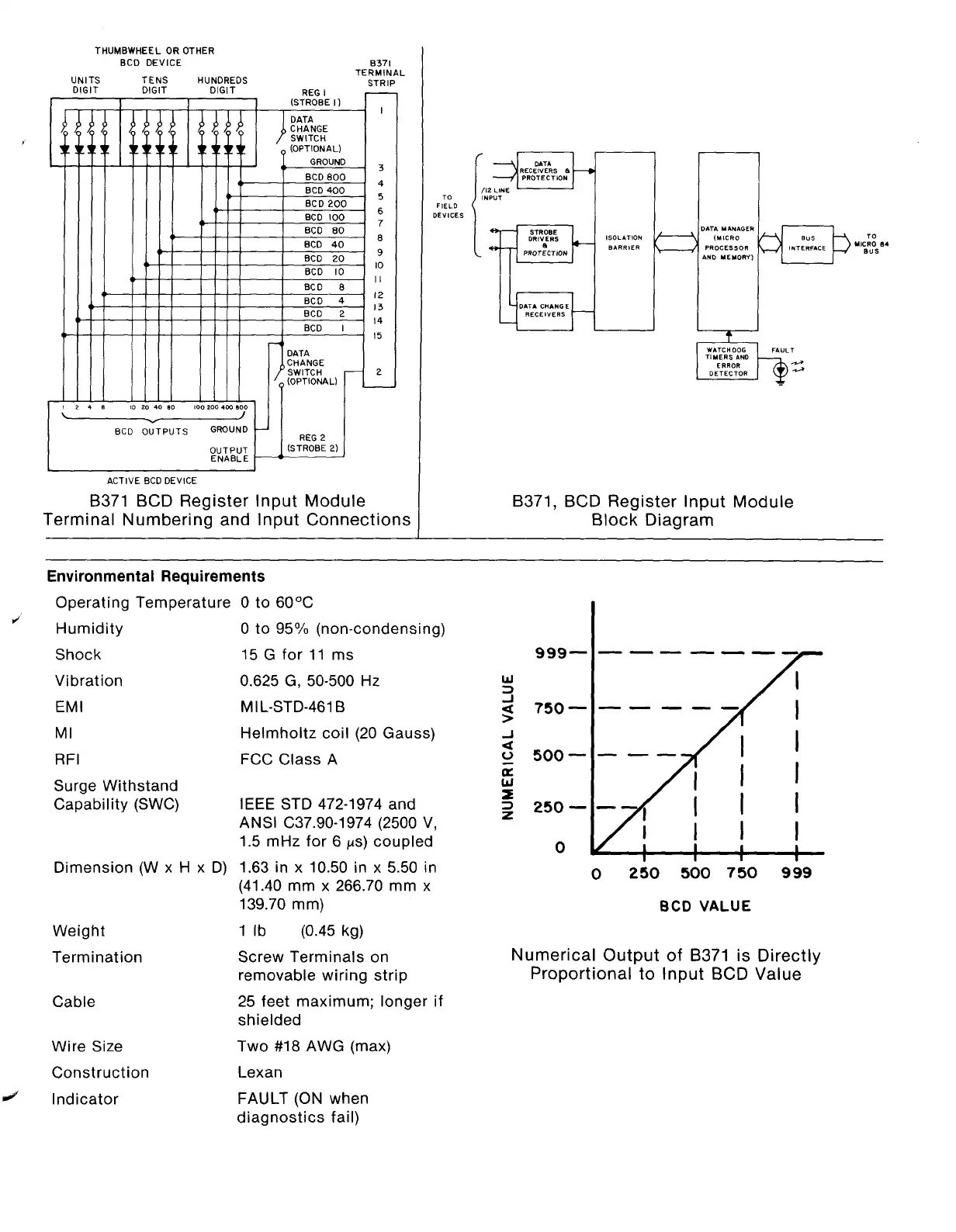

B371 BCD Register Input Module
B371, BCD Register Input Module
Terminal Numbering and Input Connections
Block Diagram
Environmental Requirements
Operating Temperature
0
to
60°C
/
Humidity
Shock
Vibration
EMI
MI
RFI
Surge Withstand
Capability (SWC)
Dimension (W x H
x
0
Weight
Termination
Cable
Wire Size
Construction
J
Indicator
0 to 95% (non-condensing)
15 G for 11 ms
0.625 G, 50-500 Hz
MIL-STD-461 B
Helmholtz coil (20 Gauss)
FCC Class A
IEEE STD 472-1974 and
ANSI C37.90-1974 (2500 V,
1.5 mHz for 6 vs) coupled
1.63 in x 10.50 in x 5.50 in
(41.40 mm x 266.70 mm x
139.70 mm)
1 lb
(0.45 kg)
Screw Terminals on
removable wiring strip
25 feet maximum; longer if
shielded
Two #18 AWG (max)
Lexan
FAULT (ON when
diagnostics fail)
0
260
500 750
999
BCD
VALUE
Numerical Output of B371 is Directly
Proportional to Input BCD Value
