WARNING: Before carrying out any intervention, use the
necessary Personal Protective Equipment.
WARNING: check that the power supply is disconnected
before carrying out any procedures on the unit.
WARNING: the electrical wirings, the installation of fan
coils and their accessories must only be carried out
by people with the proper technical and professional
qualifications for the installation, conversion, expansion
and maintenance of the systems and able to check that it is
working properly and safe.
In particular, the electrical wirings require checks relating to:
- Measurement of the electrical system insulation resistance
- Continuity of the protection wires
If the fan coil is working in cold continuous mode inside an
environment where the relative humidity is high, condensate
might form on the air delivery. This condensate might be
deposited on any objects underneath and on the floor. To avoid
the formation of condensate on the external structure of the
device while the fan is working, the average water temperature
must not be lower than the operating limits shown in this
manual (which depend on the thermo-hygrometric conditions
of the ambient air). These limits refer to unit operating with fan at
minimum speed.
In order to prevent air stratification in the room, and therefore to
achieve improved mixing, it is advisable not to supply the fan
coil with water at a temperature over 65°C. The use of water at
high temperatures could cause squeaking due to the different
thermal expansion levels of the elements (plastic and metal). This,
however, causes no damage to the unit unless the maximum
operating temperature is exceeded.
The essential indications to install the device correctly are
given here.
The installer's experience will be necessary however, to perfect
all the operations in accordance with the specific

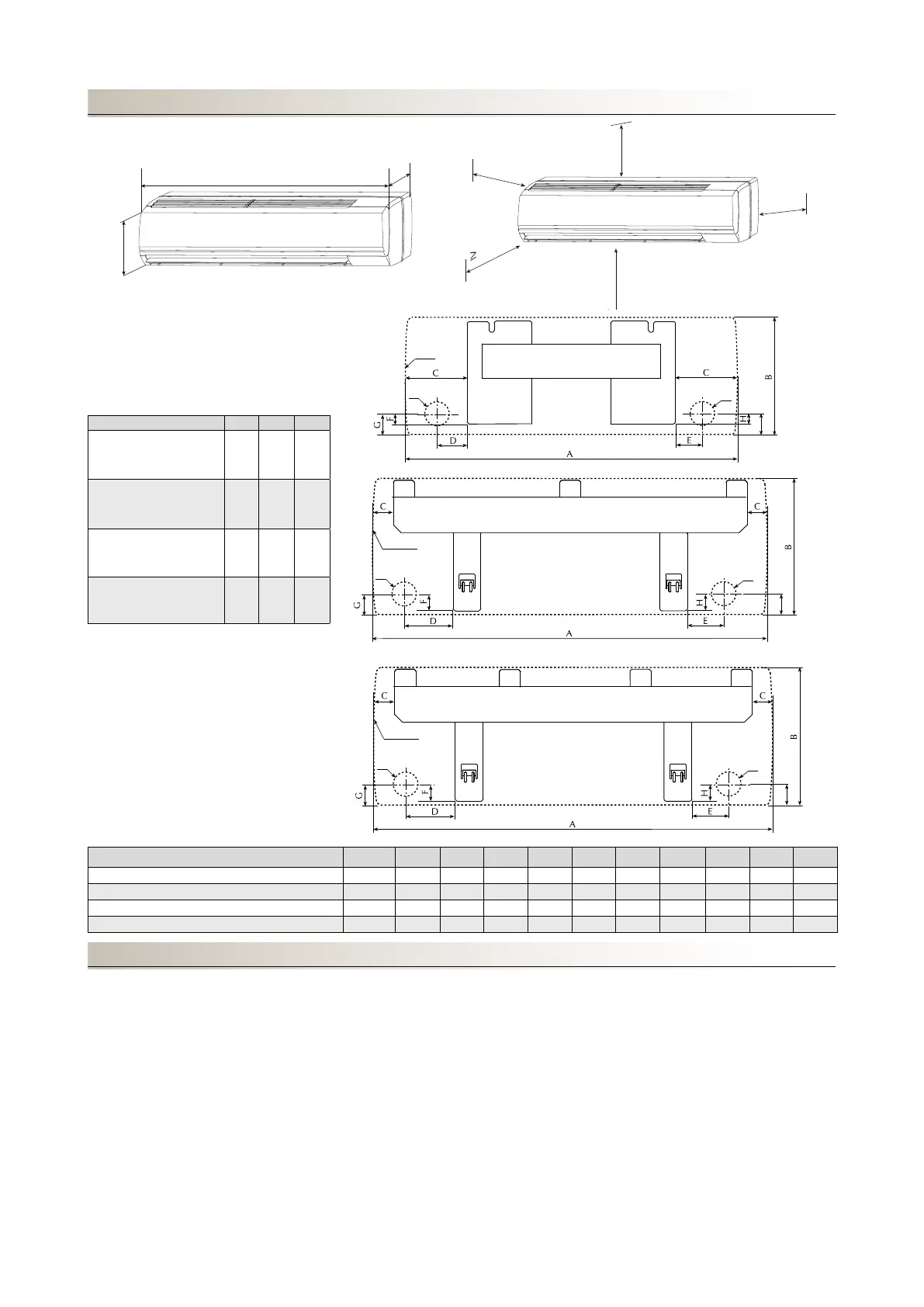

SIZE DATA mm
UNIT INSTALLATION
I
J
J
J
J
I
FCW 22
FCW 32
FCW 42
J
J
I
FCW 52
A B C
FCWI232V
FCWI233V
FCWI23VL
880 298 210
FCWI332V
FCWI333V
FCWI33VL
990 305 210
FCWI432V
FCWI433V
FCWI43VL
1170 330 230
FCWI532V
FCWI533V
FCWI53VL
1450 365 240
FCWI A B C D E F G H I J
232V - 233V - 23VL mm 880 298 190 90 68 21 36 25 40 Ø70
332V - 333V - 33VL mm 990 305 191 91 69 24 46 28 50 Ø70
432V - 433V - 43VL mm 1170 330 139 210 125 42 50 42 50 Ø70
532V - 533V - 53VL mm 1451 365 149 200 114 30 46 34 50 Ø70
FCWI 53
FCWI 43
FCWI 23
FCWI 33
A
B
C
1500
mm
150
mm
150
mm
150mm
mm
