7 INPUT/OUTPUT MENU

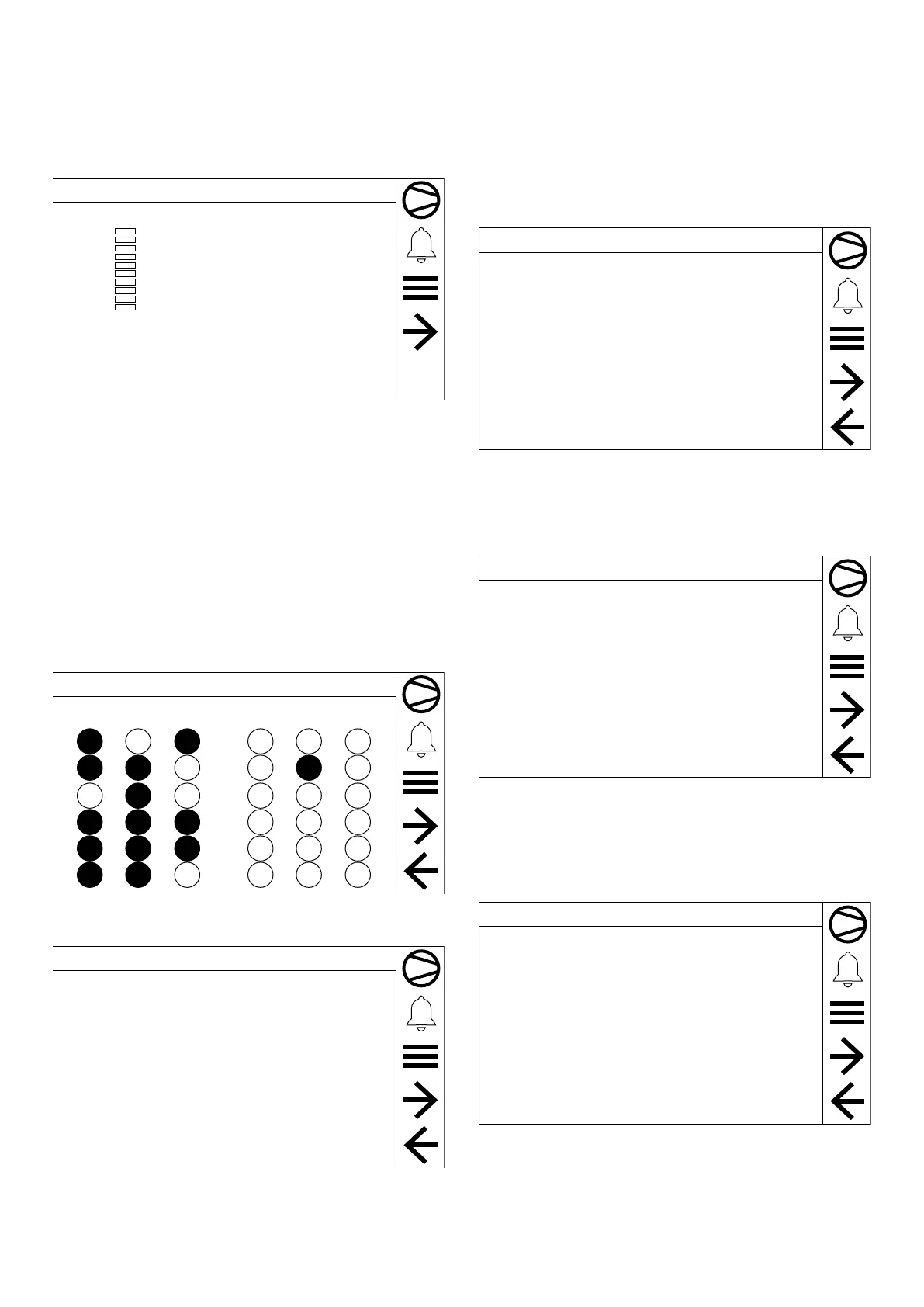

This menu is used to display the state of the inputs and outputs, both digital as well
as analogue.
The rst mask, which is present only in the master card parameters, summarises the
machine status with a graphic indication of the compressor power, input tempera-
ture, master water output and circuit operating status.
1
1/9 10:22:20
I/O
1
0%
11.6°C 0.0°C
Outlet
Temperature
Inlet Tempera-
ture
Alarm
This mask displays:
1. Water Inlet Temperature
2. Water Outlet Temperature
3. Cooling capacity of the compressors present from 1 to 4, expressed as a
percentage
4. Status indication of circuits from 1 to 4:
— ok: operative
— Disabled: not enabled for operation
— Alarm: stopped due to alarm
— Safety capacity control: safety
— Safety dierential: wait for safety dierential
— Pulldown: wait for PullDown
7.1 DIGITAL INPUT/OUTPUT GENERAL MONITOR
Digital input and output status:
1
2/9 10:22:20
I/O
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Digital OutputDigital Input
7.2 TRANSDUCER AND PROBE READING MONITOR
1
3/9 10:22:20
I/O
11.4 bar
11.6 °C
2.8 bar
43.1 °C
11.2 °C
7.0 °C
B6: ---
B8: ---
B7: Multifunction
Input
B5: Water Outlet
Temperature
B4: Discharge
Temperature
B3: Water Inlet
Temperature
B2: Low
Pressure
B1: High
Pressure
Analog Input
— B1: high pressure transducer reading
— B2: low pressure transducer reading
— B3: evaporator water inlet temperature probe reading (master only)
— B3: common water inlet temperature probe reading (in case of adjustment at
the outlet with multiple parallel connected evaporators) (slave 1 only)
— B4: discharge gas temperature probe reading
— B5: evaporator water outlet temperature probe reading
— B6: Ammetric transformer inlet (A)
— B7: Multifunction input (master only)
— B8: evaporator input gas temperature probe reading
7.3 CONDENSER WATER INLET AND OUTLET
TEMPERATURE MONITOR
1
4/9 10:22:20
I/O
44.4 °C 40.4 °C
0.00 V
Analog Output
(Y0)
Analog Output
B10: Conden-
ser Water Inlet
B9: Condenser
Water Outlet
Analog Input
— B9: condenser water outlet temperature
— B10: condenser water inlet temperature (master only)
— Voltage value at analogue output Y0
7.4 CONDENSER WATER OUTLET MONITOR
1
4/9 10:22:20
I/O
44.4 °C 40.4 °C
0.00 V
Analog Output
(Y0)
Analog Output
B10: Cond. Com.
Water Outlet
B9: Condenser
Water Outlet
Analog Input
— B9: condenser water outlet temperature
— B10: common condenser water outlet temperature (slave only)
— Voltage value at analogue output Y0
7.5 PUMP AND COMPRESSOR OPERATING HOURS
MONITOR
1
5/9 10:25:05
I/O
000
000
000
Condenser Pump
Evaporator Pump
Hour Counters
Compressor
— Evaporator pump operating hours
— Condenser pump operating hours
— Compressor operating hours
