Main Menu

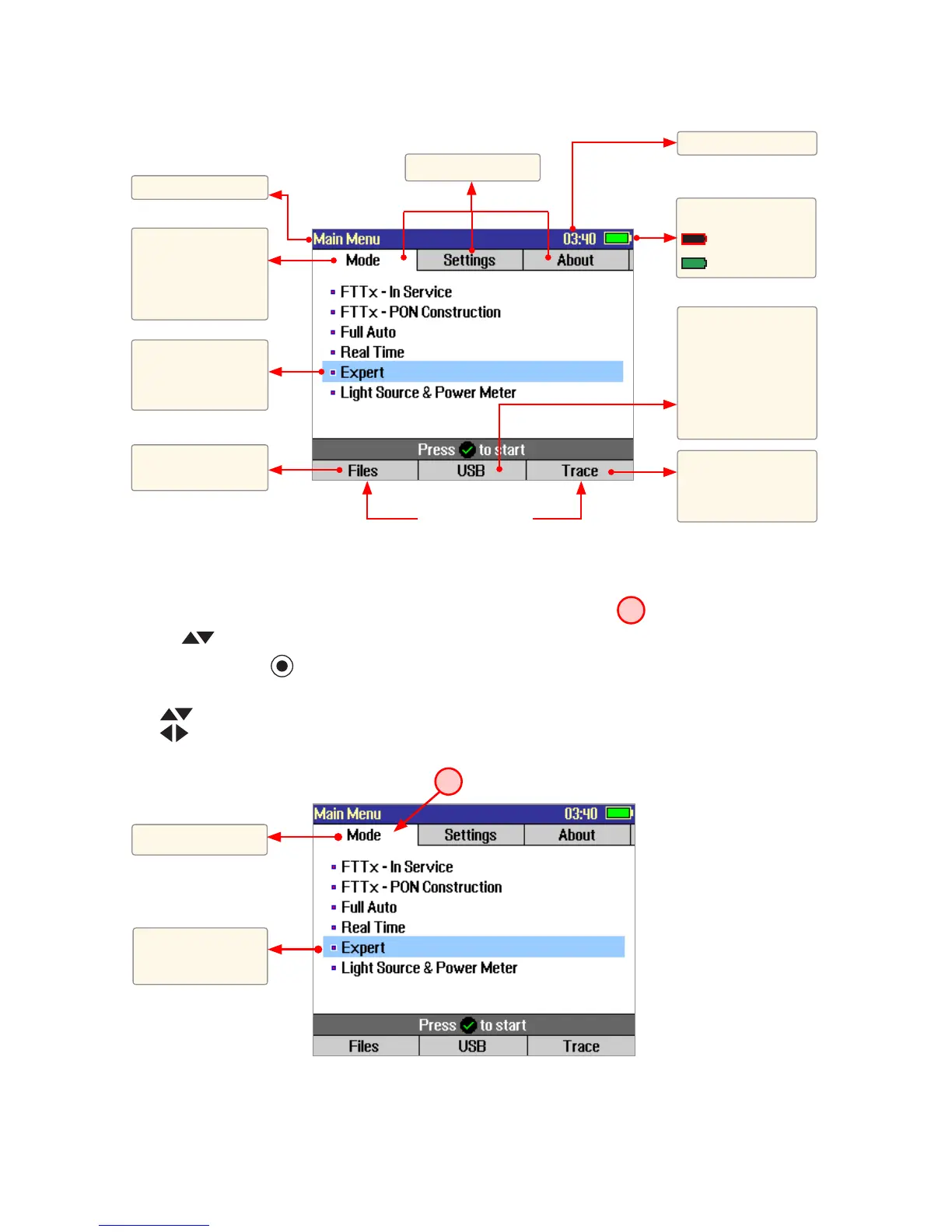

Main Menu - OFL280-103 model shown
Soft key labels
Main Menu tabs
Page header
Highlighted tab
indicates the
currently displayed
Menu Page
The currently
highlighted Menu
option
Press to open
saved les
Battery icon
- < 10%
- Fully charged
Time
Press USB to
transfer saved
results and
download software
upgrades (OTDR is
connected to a PC)
Press to display the
last OTDR trace
viewed
Selecting a Test Mode
1. Press the Menu key to display the Main menu. The Mode menu page
A
is displayed by default.
2. Use keys to highlight the desired Test Mode.
3. Press the Select - key to display a settings submenu for the highlighted Test Mode. From this
submenu:
Use keys to highlight the desired setup parameter.
Use keys to set/change the highlighted parameter.
Mode tab
Highlighted test
mode
A
