AFL OFL280 FlexTester User Manual

9

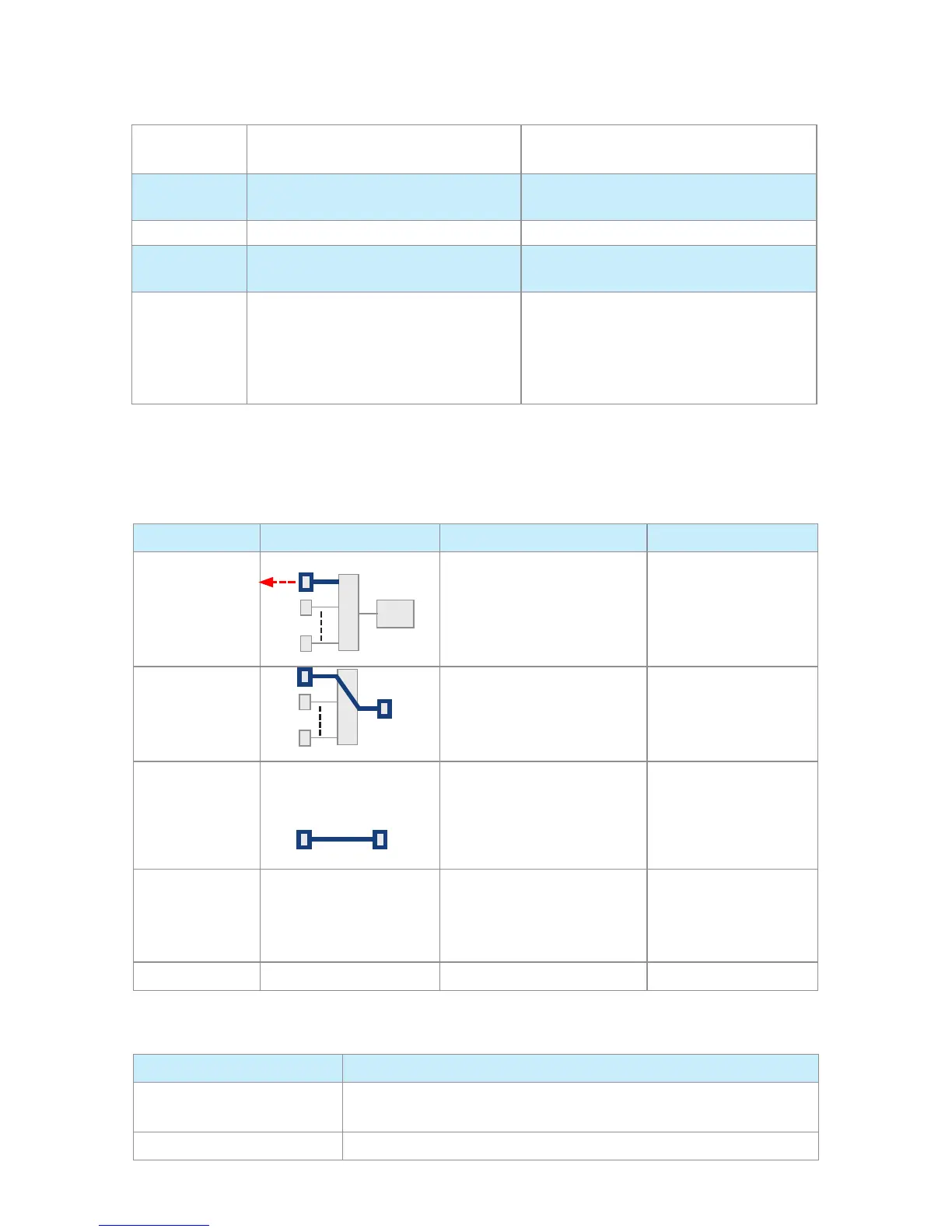

OFL280 Models
The OFL280 FlexTester is available in four models as indicated below:
AFL No. WAVELENGTHS and added fea-
tures
notes
OFL280-100 1310, 1550 nm Dual-wavelength OTDR/Loss test set for
both point-to-point and PON applications
OFL280-101 1310, 1550, 1625 nm Adds ability to test at 1625 nm (L band)
OFL280-102 1310, 1490, 1550 nm Adds ability to test at 1490 nm (FTTx
downstream data)
OFL280-103 1310, 1550, 1625 nm, Live Fiber lter,
PON meter
Adds ability to test (dark bers) at 1625
nm (L band), lter to test FTTx live bers
at 1625 nm, and PON meter to measure
FTTx downstream power at 1490 and
1550 nm
OFL280 Setup
OTDR Modes
Test Mode Network Applications Setup
FTTx – In
Service
PON power meter
Customer ber fault location
(ber may be live or dark).
Test live bers through
splitter.
Auto or Semi-Auto
FTTx – PON
Construction
End-to-end loss
Splitter loss
Feeder ber fault location
Semi-Auto
Full Auto
Long-haul
Metro
Access
Fault location
End-to-end loss
Connection loss & reection
Splice loss
Auto
Real Time
Any Short range fault location
First connector check
Fusion splice check
Mechanical splice tuning
Semi-Auto
Expert
Any For experienced users Manual or Semi-auto
PON
OLT
PON
Light Source and Power Meter Mode
Test Mode Application
SOURCE Measure end-to-end loss or trace bers using the tone feature and a
NOYES Optical Fiber Identier (OFI)
METER Measure optical power or ber loss

AFL OFL280 FlexTester Specifications

General

Brand	AFL
Model	OFL280 FlexTester
Category	Measuring Instruments
Language	English
