Saving and Reviewing Test Results
File Manager System
The OFL280 File Manager system consists of four pages as follows:
Page Name Description
Jobs Lists the Jobs (folders) stored in the OFL280 internal memory.
Use to open or delete the highlighted job folder.
Cables Lists the Cables (folders) in the currently open Job folder.
Use to open or delete the highlighted cable folder.
Traces Lists the OTDR trace (SOR) les in the currently open Cable folder.
Use to open (view) or delete the highlighted trace le.
Save As Lists the current job, the current cable, and the ber number that will be used the
next time a group of traces is saved.
Use to save the ‘new’ trace(s) created by the most recent test, or the trace(s) most
recently opened (recalled from memory).
To display File Manager, press the [Files] soft key on the Main Menu page or when it appears.

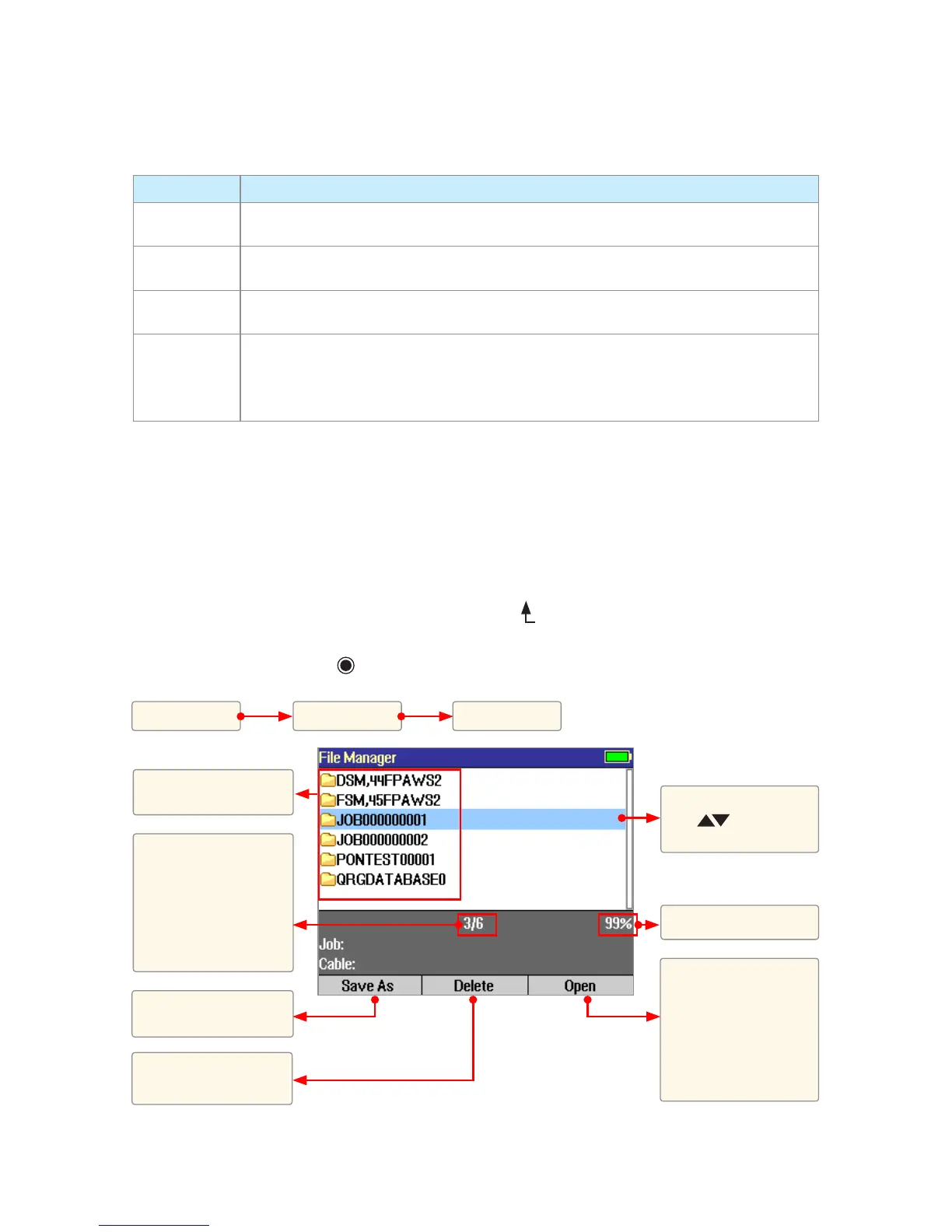

File Manager – Jobs Page
Depending on the prior settings, the File Manager may be displayed as [Jobs], [Cables], or [Traces]
page. To display [Jobs] page (top level menu page in the OFL280 File Manager):
• Press the [Files] soft key.
• If the [Cables]/[Traces] page is displayed, highlight the ( ..) symbol at the top of the [Cables]/
[Traces] page.
• Press the [Select] soft key - to display [Jobs] page.
Press to delete the
highlighted Job folder
Press to open the
highlighted Job
(which becomes the
current job) and see
a list of the cables
stored in this job
Press to display the
Save As page
List of saved Jobs
(folders)
This eld shows X/Y:
X = number of the
highlighted job
Y = total number
of jobs in OFL280
memory
Highlighted Job folder
(use to highlight
the desired folder)
Available memory
Jobs Page Cables Page Traces Page
To Next Page
