2.1.1 Flush Mounting Bracket
The flush mount is typically used to mount the console into the air craft instrument panel or switch panel. The brackets
mount to the side of the console with 10-32 1/2 stainless steel hardware and then to the aircraft using approved hardware
as shown below.
Figure #14
Mounting screw assembly
Figure #15
Mounting screw sizes for assembly

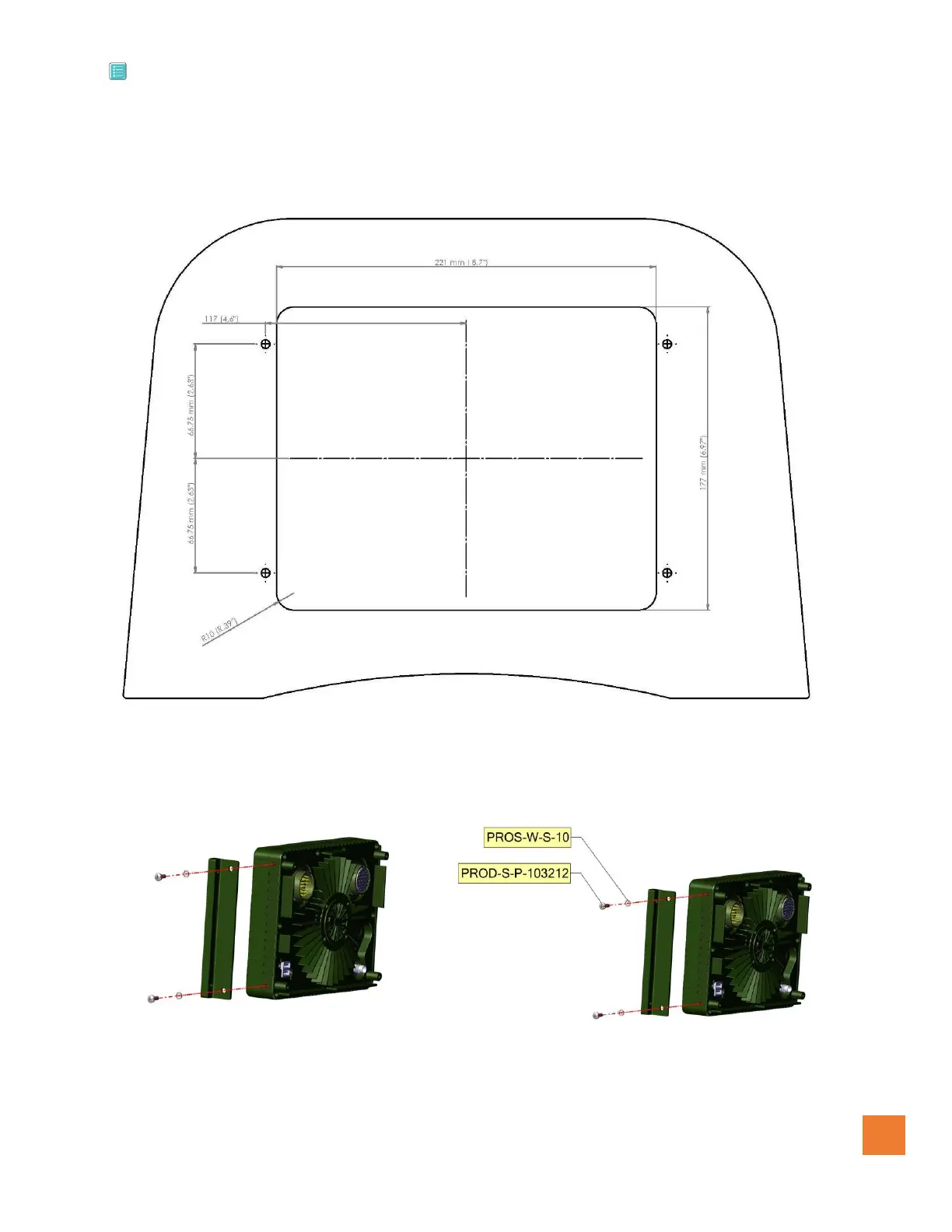

Figure #16
PANEL CUTOUT DIMENSIONS
