14

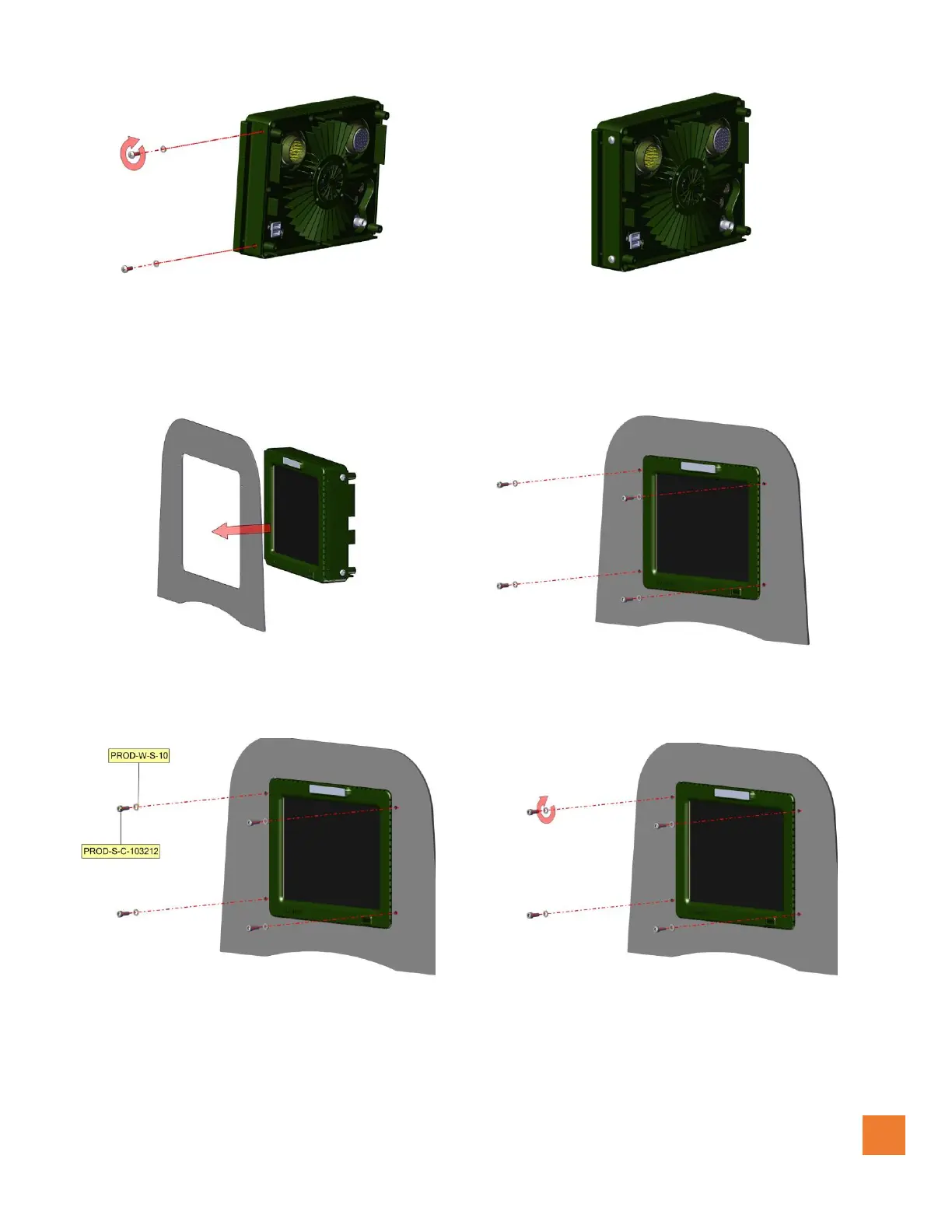

Mounting screw rotation for assembly
Figure #17
Flush mount assembly for Platinum
Figure #18
Mounting flush mount assembly to panel
Figure #19
Mounting screws used for assembled to panel
Figure # 20
Mounting screw size for assembling flush mount
Figure #21
Mounting screws rotation
Figure #22
