22 3200P pH Meter User Guide
2Operation
Setting Up the pH Meter
This section describes the tasks that an operator will
perform when starting up the 3200P pH Meter.
Using the meter involves:
1 Selecting the measurement mode and the display
parameters.
2 Preparing the electrode.
3 Measuring the pH.
To start up the 3200P pH Meter
Always operate the meter in an environment that meets the
requirements listed in “Normal operating conditions” on
page 18.
1 Connect the meter to the power supply.
2 Ensure the meter has a good ground.
3 Check the electrode connector and meter socket. The
electrode must have a reliable connection.
4 Press [On/Off] to turn the meter on.

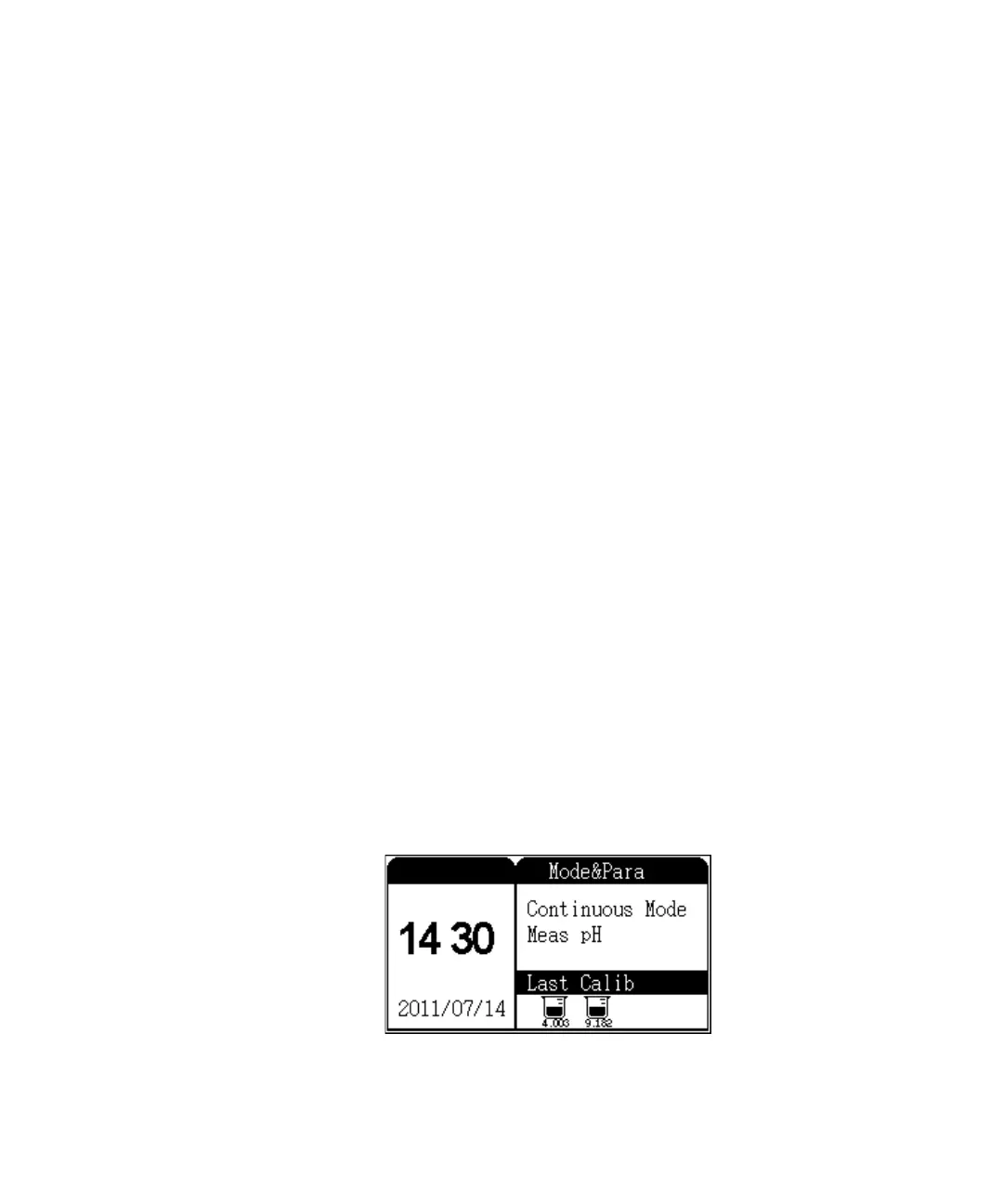

The initial state of the meter is shown in Figure 9. The left
side shows the system time. The right side shows the setting,
measuring mode, pH parameter, and the last calibration
data.
Figure 9 Function setup in the initial state
