Operation 2
3200P pH Meter User Guide 43
To view saved data
The 3200P pH Meter lets you view the last calibrated data
and stored data.
1 From the initial state display or measuring mode, press
[View] and select View Saved pH as shown in Figure 23.
2 For saved data, use the scroll keys to select the data to
view. Figure 24 shows example saved data:
The upper area displays the current viewing mode and
actual stored amount. Each page can display 10 saved
data. The display format varies with different viewing
modes. The data displayed include Save time and
Operator No.
3 If desired, press [Output] or [Delete] to print or delete data
respectively. The output format is shown in Figure 25 on
page 44. To access the output for either of these
functions, the meter must first be connected to the PC.

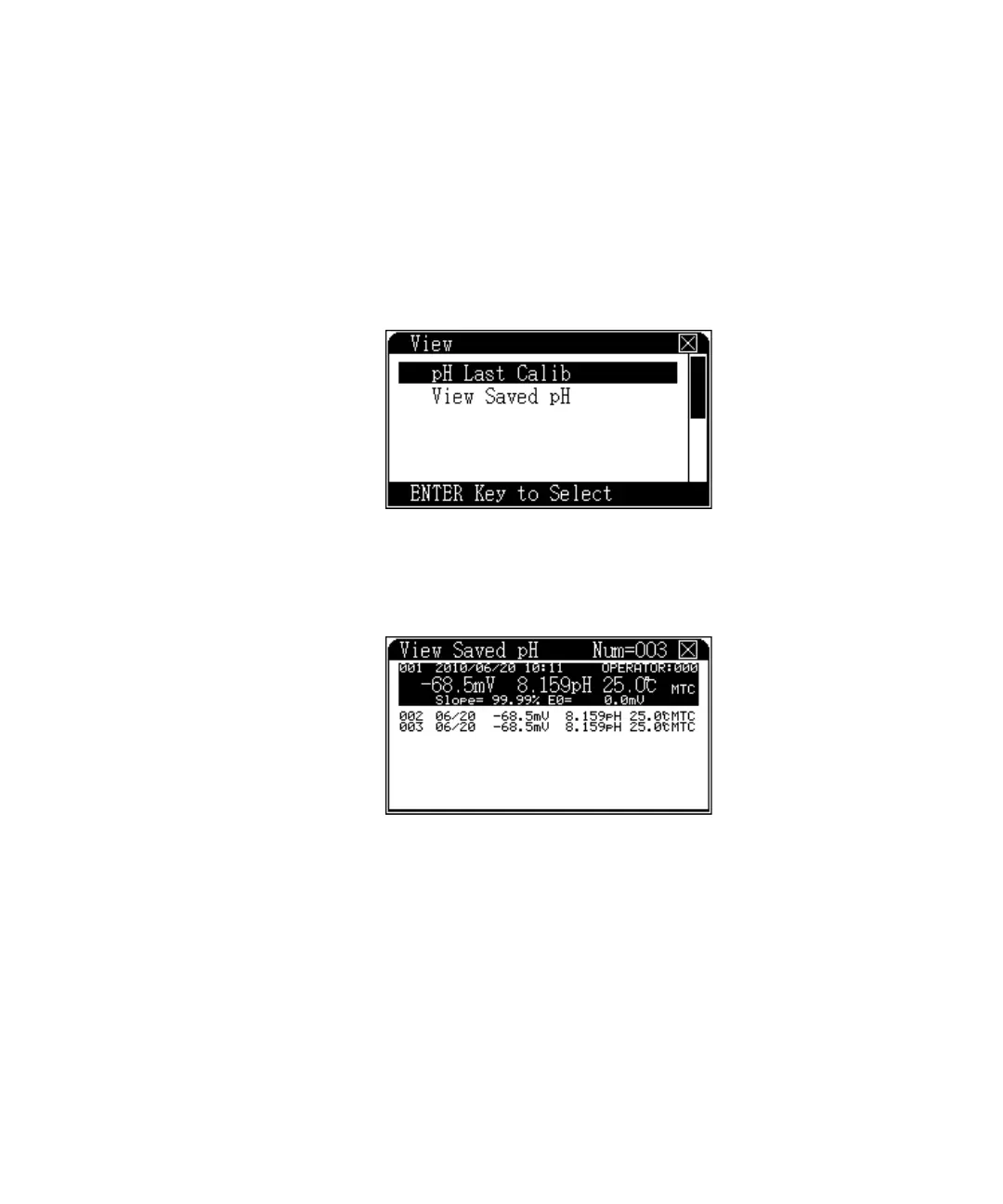

Figure 23 View menu
Figure 24 View saved data menu
