Installation 1
3200P pH Meter User Guide 7
Installing the 3200P pH Meter
Open the meter kit package case. Remove the pH Meter,
multifunction electrode holder, and other parts.
The sockets for the pH electrode and ATC probe are on the
back panel of the meter. Insert the connectors of the pH
electrode and ATC probe (5190- 3998) into their respective
sockets. See Figure 6 on page 13. Run the electrode cables
along the electrode holder as shown in Figure 2 on page 8.

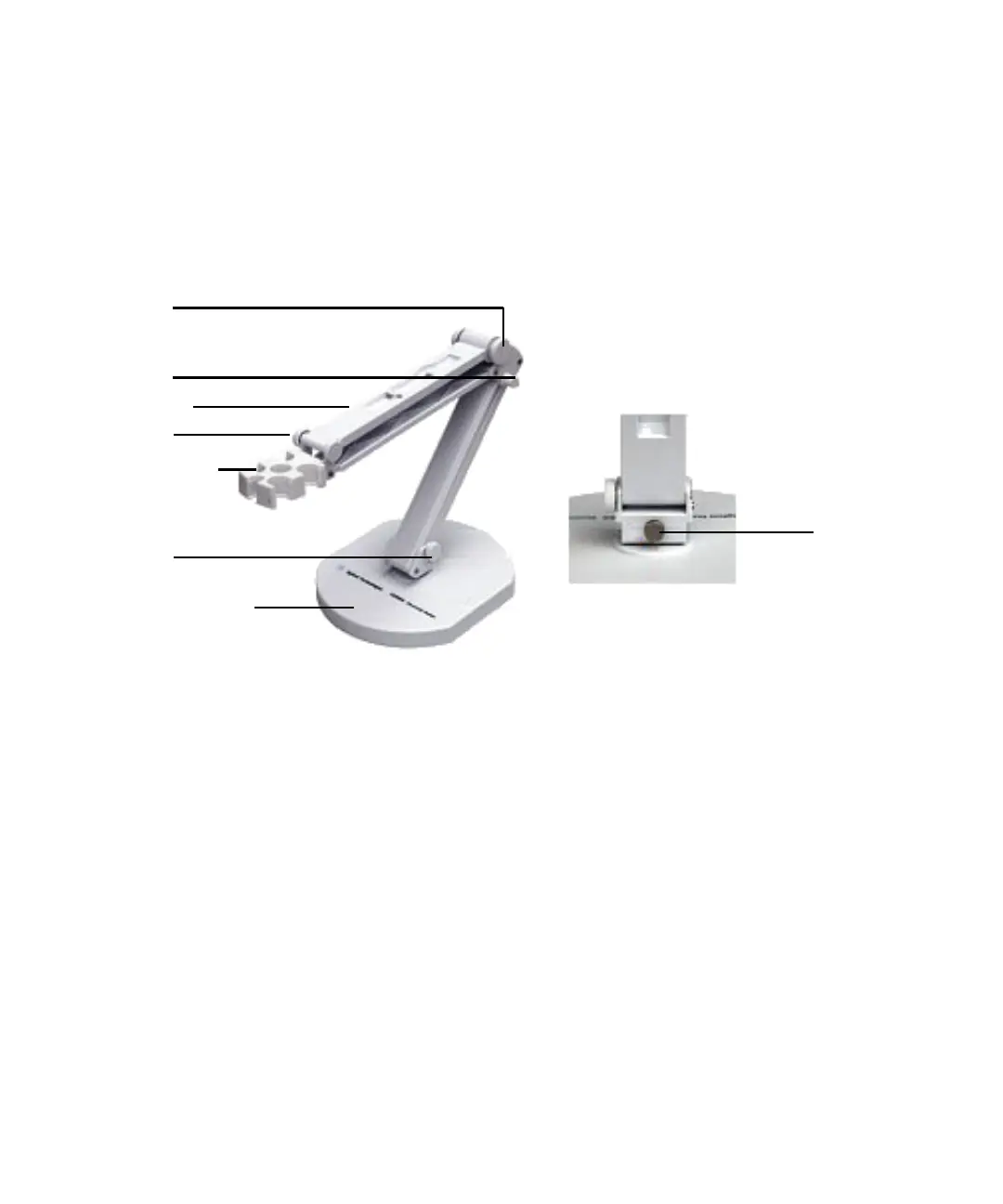

Figure 1 Installing the Electrode holder
Large nut
Small nut
Flexible arm
Small nut
Electrode holder
Large nut
Electrode holder base
Setscrew
