Chapter 2 13
Agilent 4072/4073 Preinstallation Guide, Edition 4
Site Preparation
Installation Site Requirements

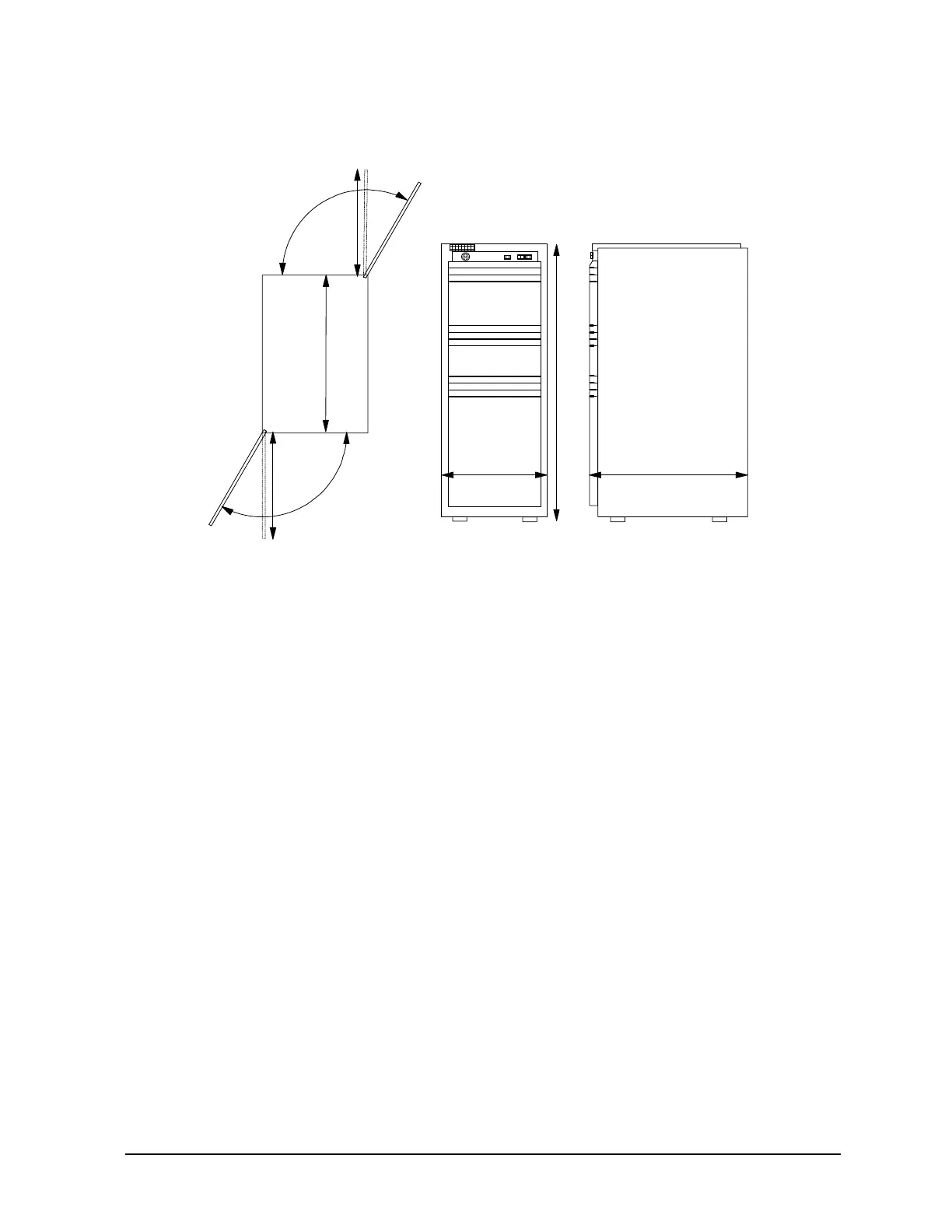

Figure 2-1 System cabinet dimensions
Other requirements
The site requires the following environment.
Air conditioning
To satisfy the temperature and air cleanliness requirements outlined in the “Environmental Considerations” on
page 28, air conditioning is recommended. The power consumed by a standard 4072/4073 tester, including the
system controller and peripherals, is about 1300 watts•hour (4.7 × 10
6
J). Also, consider the heat dissipated by
other instruments in the room, lighting, and operating personnel. A good rule for calculating the required BUT’s of
your air conditioning system is to assume 3500 BUT’s (3.6 × 10
6
J) for every 1000 watts•hour. Be sure to consider
room size also.
Floor
Requirements for the site floor are as follows.
• Verify the load capacity of the floor at the installation site and all floors on the way to the site. All floors must
have a minimum load capacity of 21 kg/cm
2
(300 lbs/in
2
).
• Make sure that tile, concrete, or other industrial floors are adequate for the system site. Use a special wiring
arrangement, or provide conduits or some type of protection for exposed power and signal cables.
• Use an antistatic rubber mat.
Table
Plan for a table to be placed next to the prober, to hold the testhead during servicing. The table must be able to bear
the weight of the testhead (approximately 75 kg)
Top
View
Front View Side View
906 mm
513 mm
600 mm
120 degrees
max.
120 degrees
max.
1600 mm
600 mm
906 mm
