20 Chapter 2
Agilent 4072/4073 Preinstallation Guide, Edition 4
Site Preparation
Installation Site Requirements

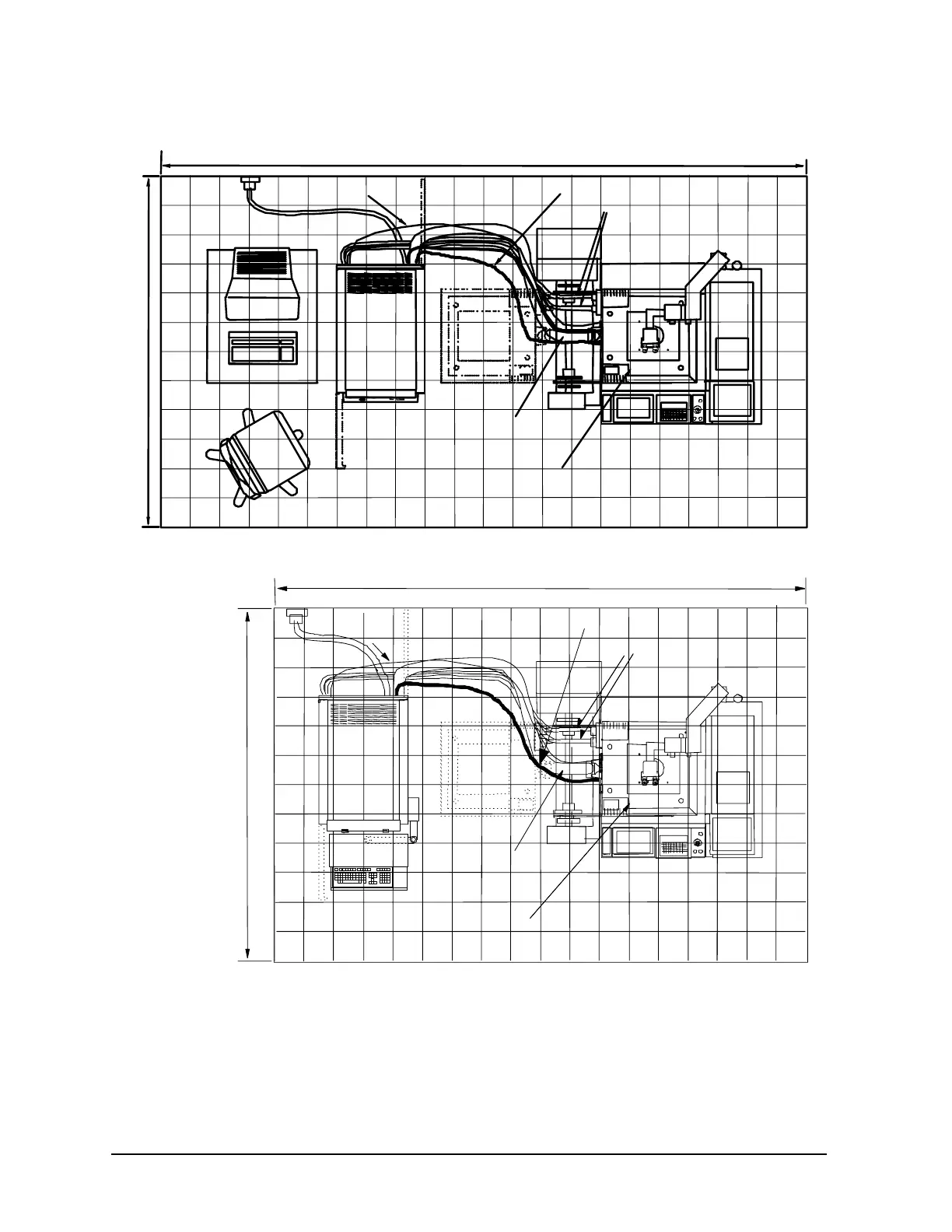

Figure 2-8 Layout example for Accretech A-PM-90A
2400 mm
4400 mm
Grid: 200 mm
air duct
test leads (DVM)
TH PS cables
testhead
wafer prober
ACCRETECH A-PM-90A
test leads (PG)
3600 mm
2400 mm
Grid: 200 mm
TH PS cables
test leads (PG)test leads (DVM)
air duct
testhead
wafer prober
ACCRETECH A-PM-90A
