Site Preparation
Installation Site Requirements

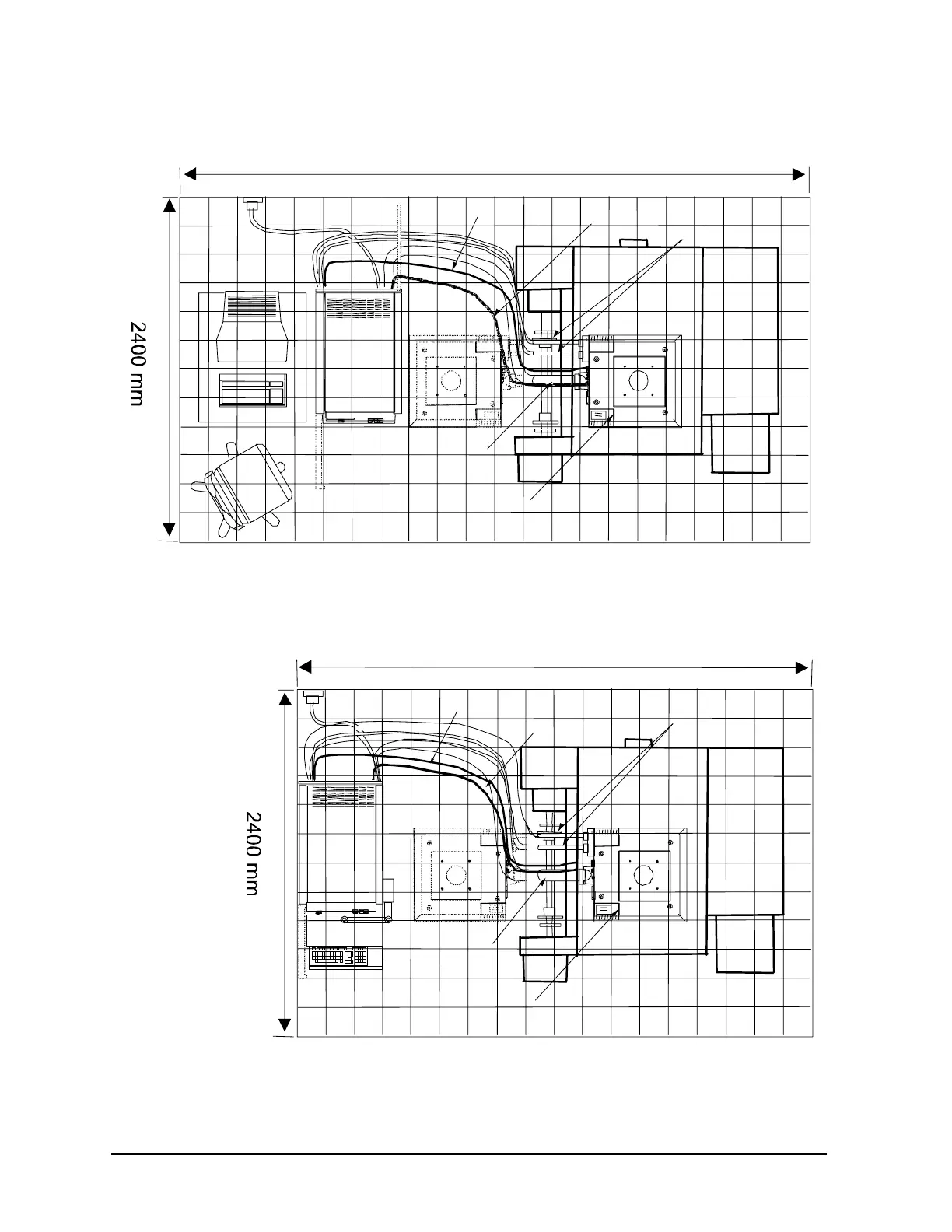

Figure 2-10 Layout example for Accretech UF 300
TH PS cables
air duct
testhead
ACCRETECH UF300
Grid: 200 mm
test leads (PG)
3600 mm
test leads (DVM)
test leads (PG)
TH PS cables
air duct
testhead
wafer prober
ACCRETECH UF300
Grid: 200 mm
test leads (DVM)
wafer prober
4400 mm
