7-40 Agilent 4155C/4156C VXIplug&play Driver User’s Guide, Edition 4
Sample Application Programs Using VEE
Customizing Sample Programs
To Set the Id Measurement Source
1. Open the Vth Measurement object program display, and change the title to
Vth/Id Measurement.
2. Add the Data-Constant-Real object, set the title to Vg_spot, and enter any value
for gate voltage in volts. This example enters 3.
3. Connect the line between the Vg_spot object and the Vg_spot terminal of the
Measurement object.
4. Create the spot_id and spot_id_s output terminals in Vth/Id Measurement object.
Then connect lines between the spot_id terminal of the Measurement object and
the spot_id output terminal, and between the spot_id_s terminal of the
Measurement object and the spot_id_s output terminal.

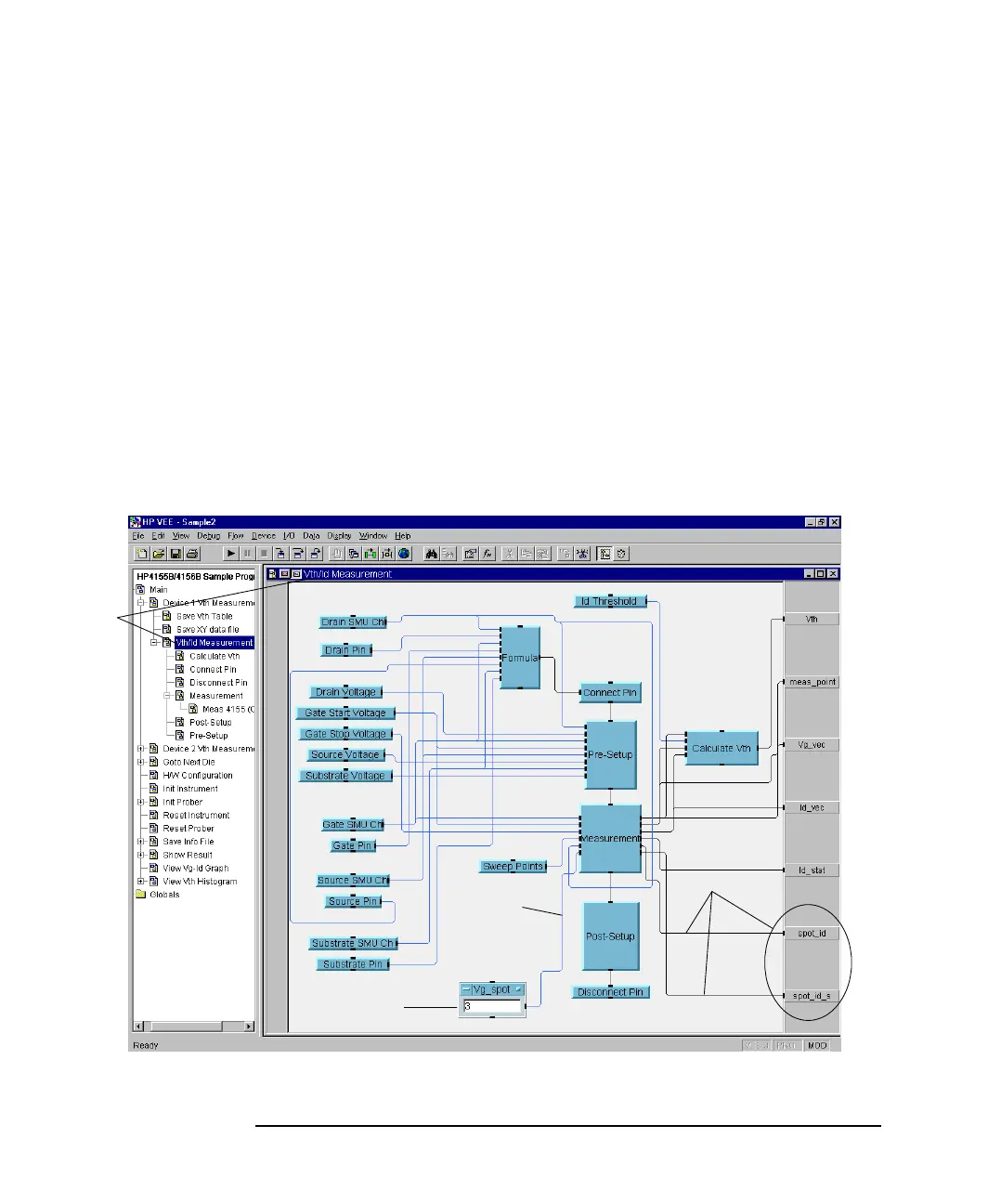

Figure 7-26 To Set the Id Measurement Source
1
2
3
4
