Agilent 4155C/4156C VXIplug&play Driver User’s Guide, Edition 4 7-41
Sample Application Programs Using VEE
Customizing Sample Programs
To Save Measurement Data
1. Open the Device 1 Vth Measurement object program display, and change the
title to Device 1 Measurement.
2. Create the spot_id and spot_id_s output terminals.
3. Connect the lines between the spot_id terminal of the Vth/Id Measurement
object and the spot_id output terminal, and between the spot_id_s terminal of the
Vth/Id Measurement object and the spot_id_s output terminal.
4. Copy and paste Save Vth Table, and change the title to Save Id Table.
5. Connect the lines between the Device Id String object and the devIdStr terminal
of the Save Id Table object, and between the spot_id terminal of the Vth/Id
Measurement object and the Vth terminal of the Save Id Table object.
6. Open the Save Id Table object panel display.
7. Change the characters Vth in the File Name entry field to Id.
8. Change the characters Vth in the Title entry field to Id.
9. Enter Id [A] into the Vth Label entry field.

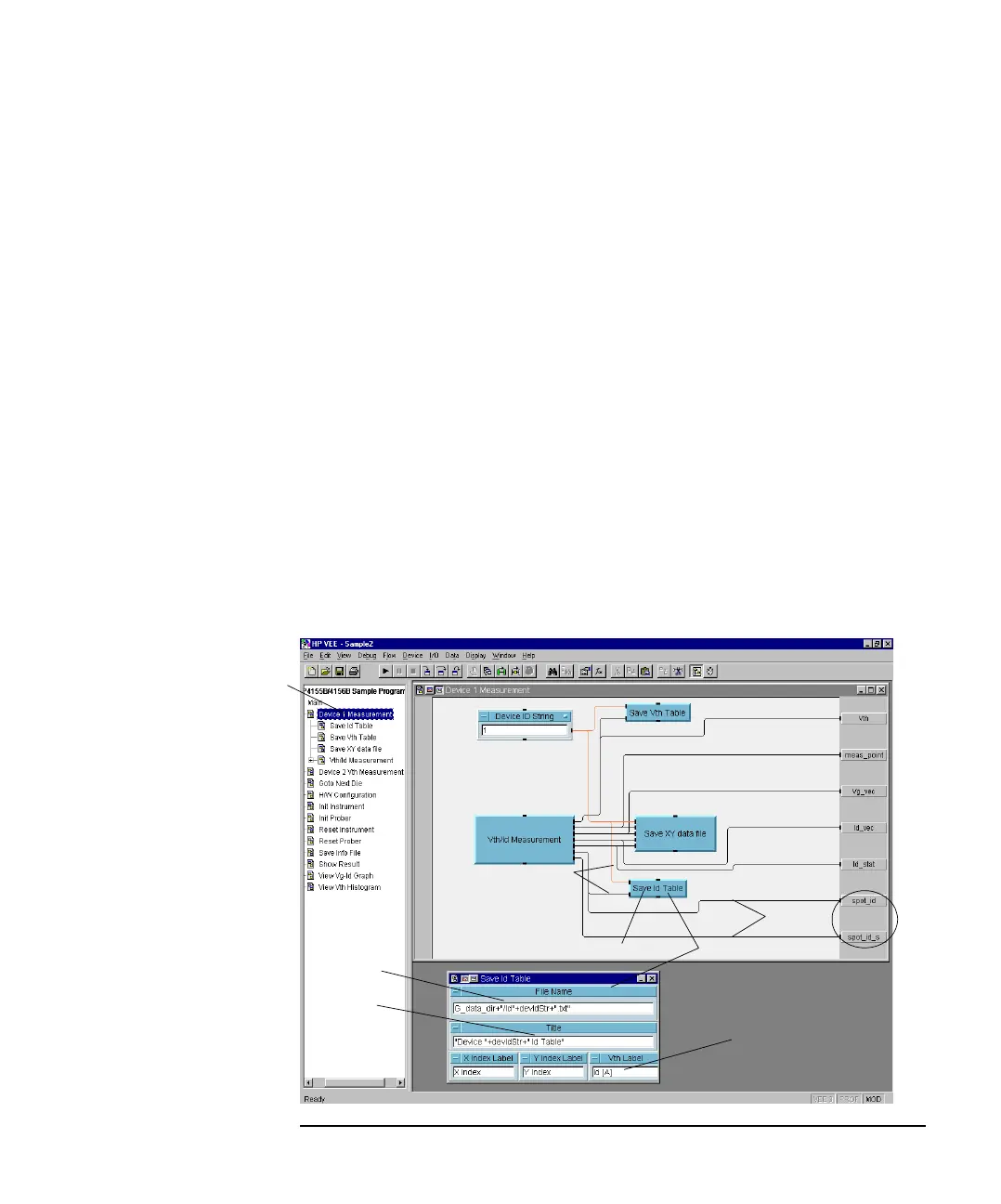

Figure 7-27 To Save Measurement Data
