7-42 Agilent 4155C/4156C VXIplug&play Driver User’s Guide, Edition 4
Sample Application Programs Using VEE
Customizing Sample Programs
To Modify the Show Result and Main Panel Displays
1. Open the Show Result object program display.
2. Add the Display-Alphanumeric object, and set the title to Dev1 Id.
3. Create the spot_id input terminal.
4. Connect the line between the spot_id terminal and the Dev1 Id object.
5. Click the Dev Id object, then click the Add to Panel button. The Dev Id object is
added to the panel display of the Show Result object. Adjust the position and
size of the object.
6. Open the Main program display, and connect the line between the Show Result
object spot_id terminal and the Device 1 Measurement object spot_id terminal.
7. Click the right mouse button on the Show Result object, and select Restore
menu. The restored Show Result object is displayed.
8. Click the restored Show Result object, and click the Add to Panel button. The
object is added to the Main panel display. Delete the old Show Result object
from the panel, and adjust the position and size of the new Show Result object.

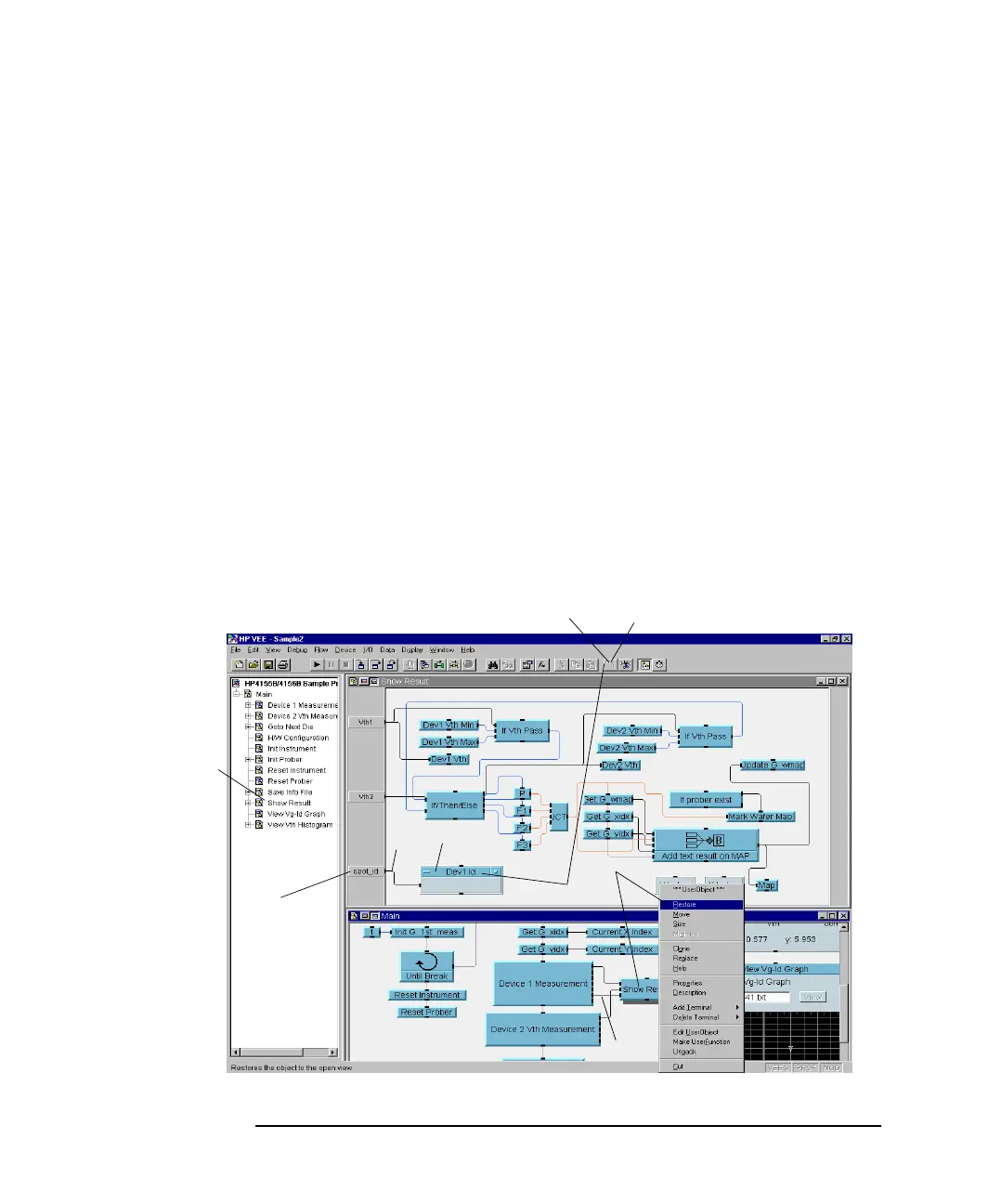

Figure 7-28 To Modify Show Result and Main Panel
1
2
3
Add to Panel button
4
5
6
8
7
