Agilent Technologies 4339B Service Manual

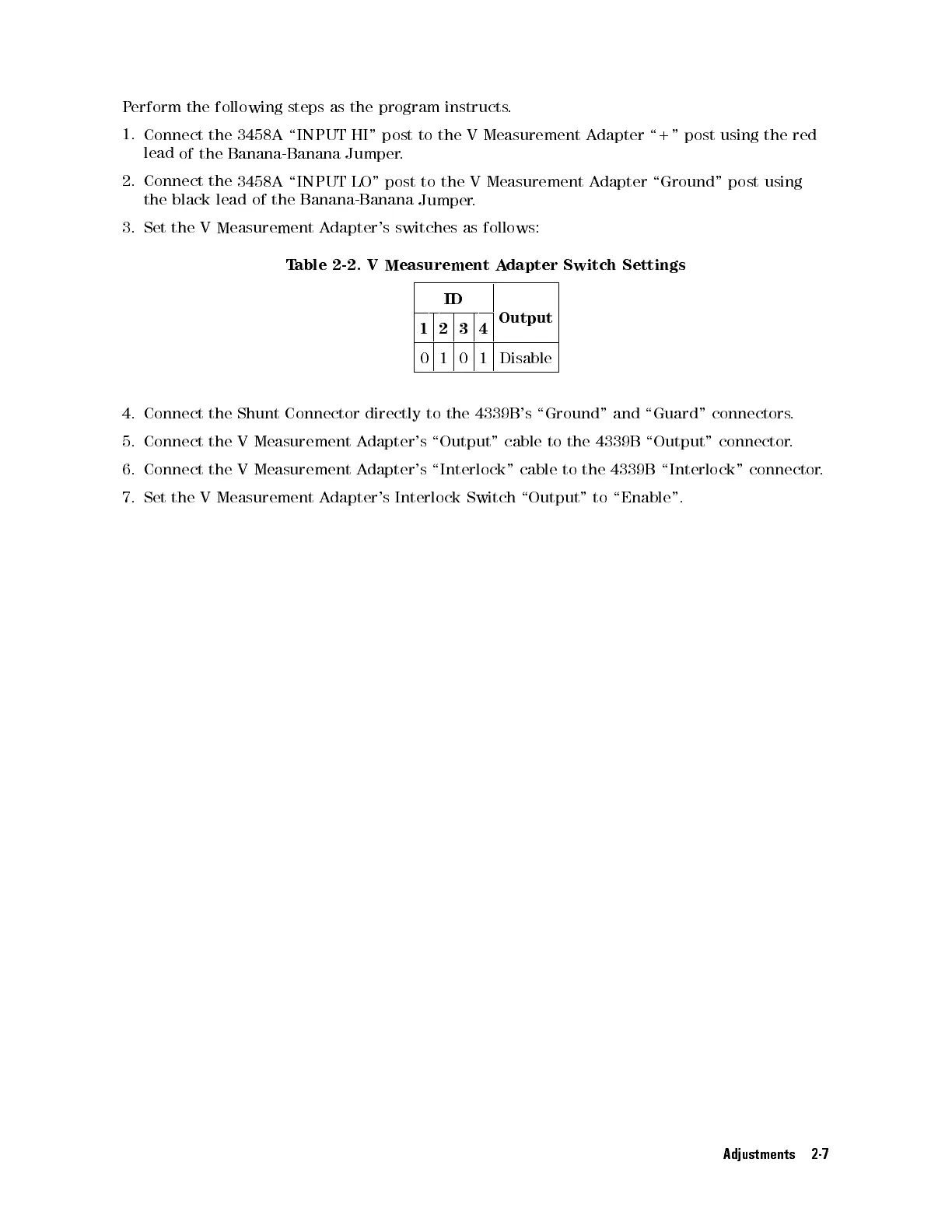

P
erform the
following steps
as the
program
instructs
.
1.
Connect the
3458A
\INPUT
HI"
post
to
the
V
Measurement
A
dapter
\+"
post using
the red
lead
of the
Banana-Banana
Jumper
.
2.
Connect the
3458A
\INPUT
LO"
post
to
the
V
Measurement
A
dapter
\Ground"
post
using
the
black lead
of
the
Banana-Banana
Jumper
.
3.
Set
the
V
Measurement
A
dapter's
switches
as
follows:
T
able
2-2.
V
Measurement
A
dapter
Switch
Settings
ID
Output
1234
0101 Disable
4.
Connect
the
Shunt
Connector
directly
to
the
4339B
's
\Ground" and
\Guard" connectors
.
5.
Connect
the
V
Measurement
A
dapter's
\Output"
cable
to
the
4339B
\Output" connector
.
6.
Connect
the
V Measurement
Adapter's
\Interlock" cable
to
the
4339B
\Interlock"
connector
.
7.
Set
the
V Measurement
Adapter's
Interlock Switch
\Output" to
\Enable".
Adjustments 2-7
