Agilent Technologies 4339B Service Manual

B
Default
Jumper and
Switch Settings
Introduction
This
appendix describes
the setting
of the
jumpers
and
switches
on
the
A2
CPU
Board
Assembly
. Use
this information
when replacing
the A2
Assembly
.
Jumper
and
Switch
Settings
Figure
B-1
shows
the
default
Jumper
and
Switch
Settings
.
When the
A2
CPU
Board
Assembly
is
replaced,
set
the
jumpers
and
switches
to
the
default
side
as
shown
in
the
gure
.

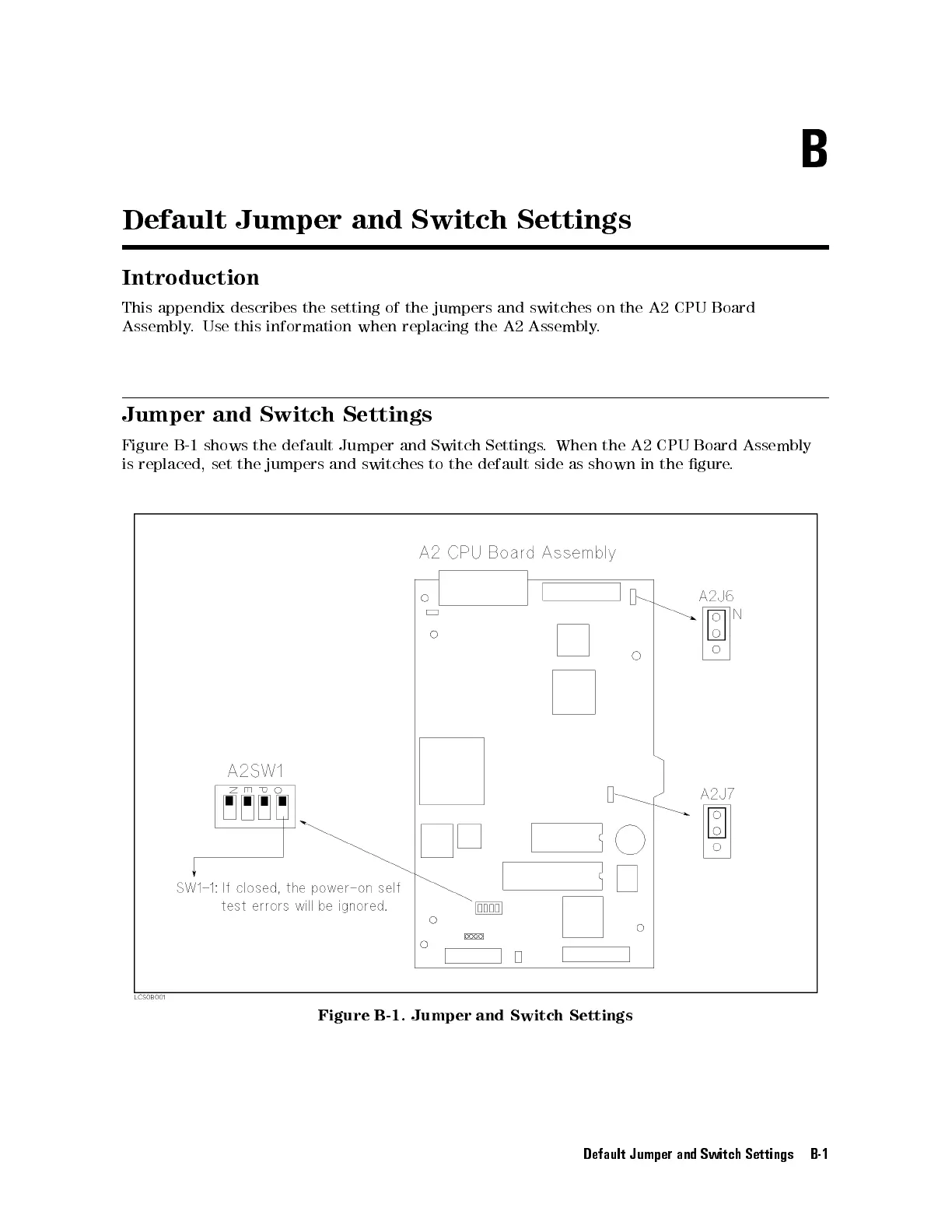

Figure B-1. Jumper and Switch Settings
Default Jumper and Switch Settings B-1
