Agilent Technologies 4339B Service Manual

Ammeter
A
djustment
This
adjustment
updates
the
ammeter
related
and
voltage
source
related
adjustment data
stored
in
the
EEPROM.
This
adjustment
consists
of
two setups
.
Equipment
Multimeter
3458A
RC
Box 16340A
Dual
Banana-BNC(m) Cable
Agilent PN
11001-60001
RC
Box A
dapter Agilent
PN 04339-65005
Setup
1/2
This
setup
obtains
the
voltage source
output resistance
,and
the ammeter
scaling
factors
.

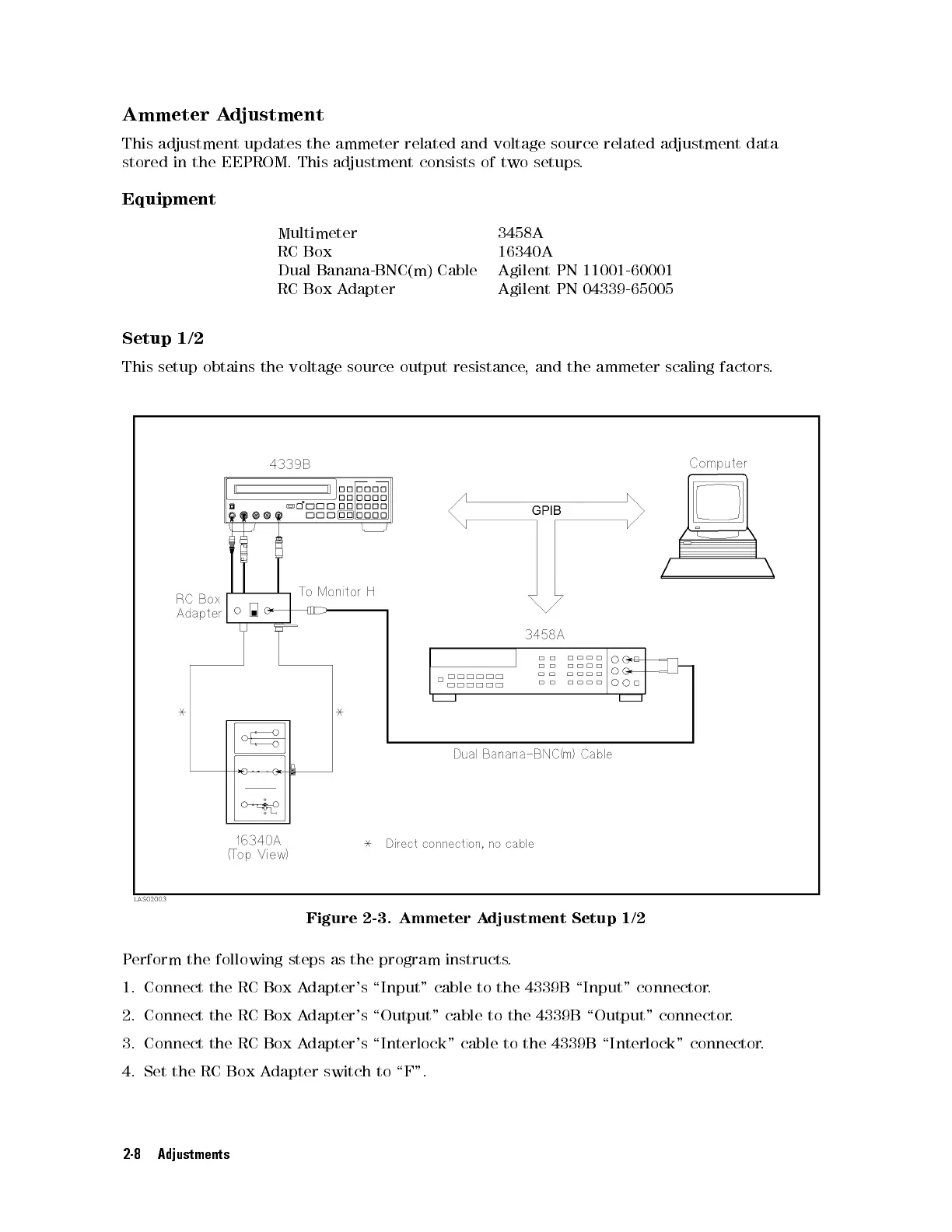

Figure 2-3. Ammeter A
djustment Setup 1/2
Perform the following steps as the program instructs
.
1. Connect the RC Box A
dapter's \Input" cable to the 4339B \Input"
connector.
2. Connect the RC Box Adapter's \Output" cable to the 4339B \Output" connector.
3. Connect the RC Box Adapter's \Interlock" cable to the 4339B \Interlock" connector.
4. Set the RC Box Adapter switch to \F".
2-8 Adjustments
