Disassembly Procedures
Caution
SUSCEPTIBLE
TO
D
AMA
GE
FROM ESD
.
P
erform
the
following
procedures
only at
a static-safety
workstation and
wear
a
grounding strap
.
Tools
and F
asteners
The 4339B
mechanical components
are secured
using
metric
threaded
fasteners
.
Many
fasteners in
the 4339B
may appear
to
be
Phillips
type
,
but
they
are
in
fact,
P
ozidrive
type
.
T
o
avoid damaging
them, use
only pozidrive
screwdrivers to
remove
or
tighten
pozidrive
type
fasteners.
Cover
Removal
The
following
procedure
is
common
for
gaining
access to
any of
the
assemblies
.

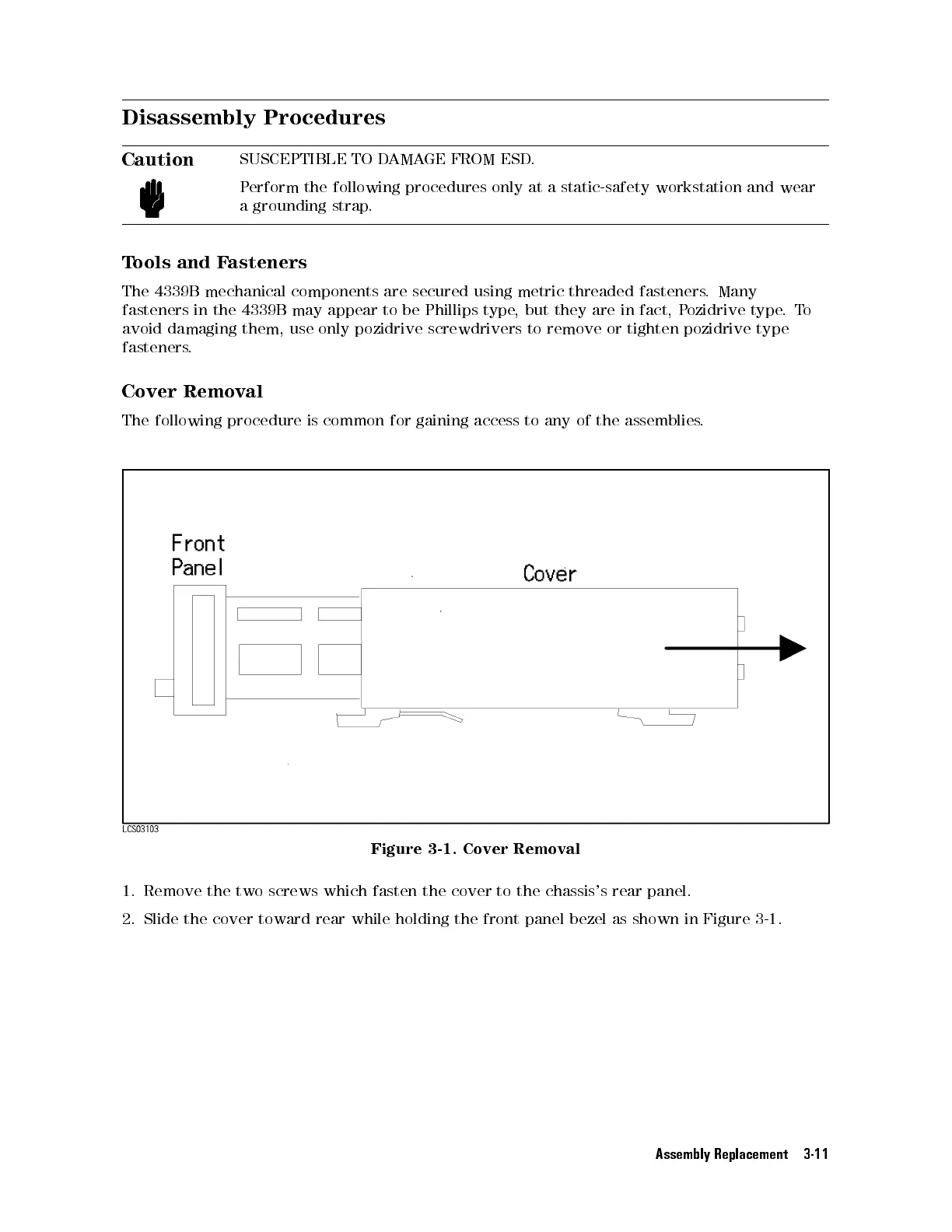

Figure 3-1. Cover Removal
1. Remove the two screws which fasten the cover to the chassis's rear panel.
2. Slide the cover toward rear while holding the front panel bezel as shown in Figure 3-1 .
Assembly Replacement 3-11
