Agilent Technologies 4339B Service Manual

Adjustments
Procedure References
This
section
provides
supplemental
information for
the adjustments
which are
performed by
the
program.
Connection
instructions
and
some
additional explanations
are provided.
Use this
chapter
as
a
reference
when
you
perform the
adjustments.
Source
Voltage
A
djustment
This
adjustment updates
the
voltage
source
adjustment
data
stored
in
the
EEPROM.
Equipment
Multimeter
3458A
Banana-Banana
Jumper
11058A
V
Measurement
A
dapter
Agilent
PN
04339-65006
Shunt
Connector
Agilent
PN
04339-60003
W
arning
T
o
avoid
the
electrical
shock
hazard
by
eventual
touch,
use
only
the
11058A
for
connection.
Each
of
the
jumper's
banana
plug
conductor
is
equipped
with
an retractive
protective sleeve
.
Setup
This
setup
obtains
the
data
to
adjust
the
actual
source
output
voltage
equal
to
the
set
value.

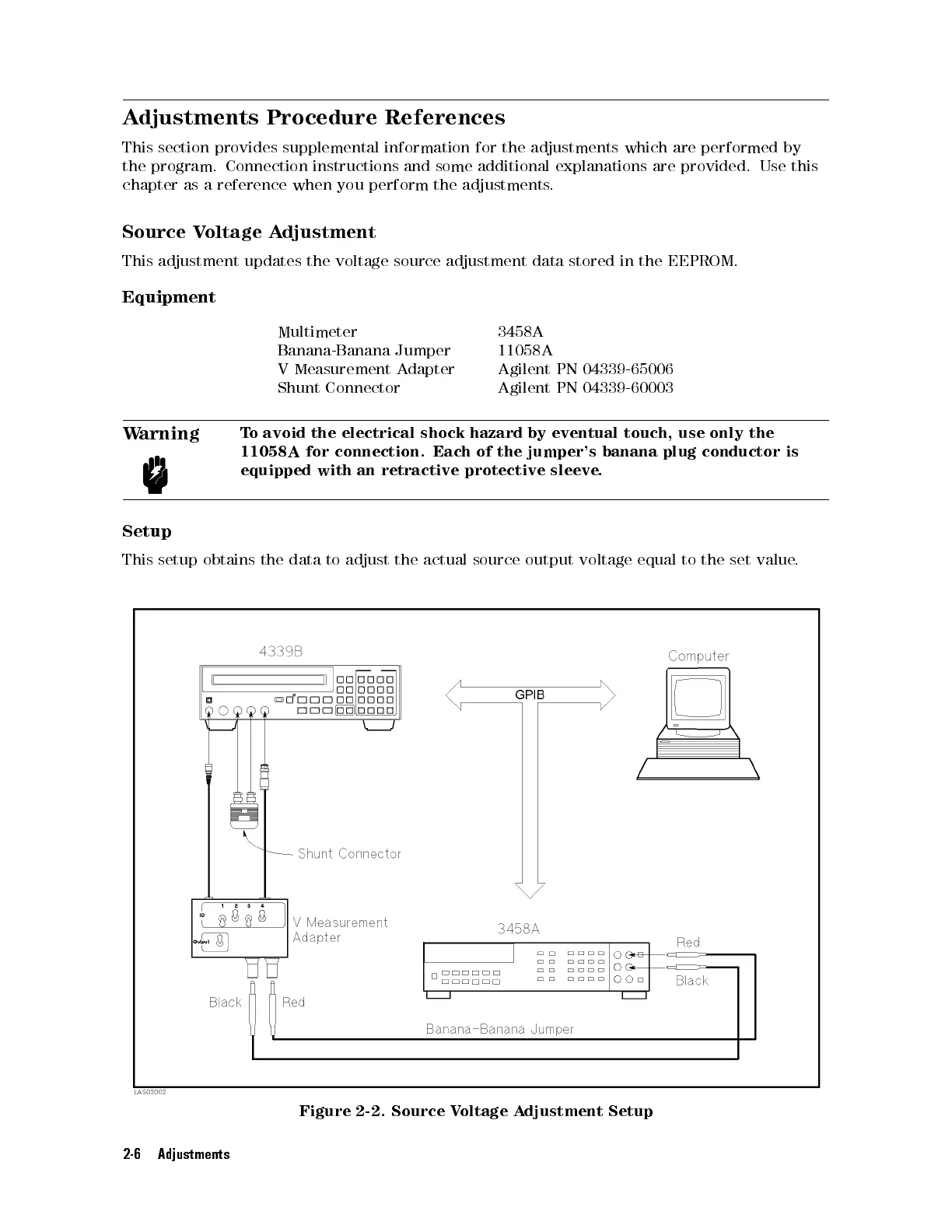

Figure 2-2. Source Voltage Adjustment Setup
2-6 Adjustments
