Agilent Technologies 4339B Service Manual

DC
Voltage
Source Section
The
voltage source
generates
a
dc
voltage
ranging
from
0
V
to
1,000
V
.The
voltage setting
resolution
is 0.1
V
when
the
output
is
less
than
and
equal
to
200
V,
and 1
V when
the output
is
greater than
200
V
.
The
current
limit
function
controls
the
source
output
voltage
so
that the
current
owing through
the
DUT
is
within
the
user
specied
range
.

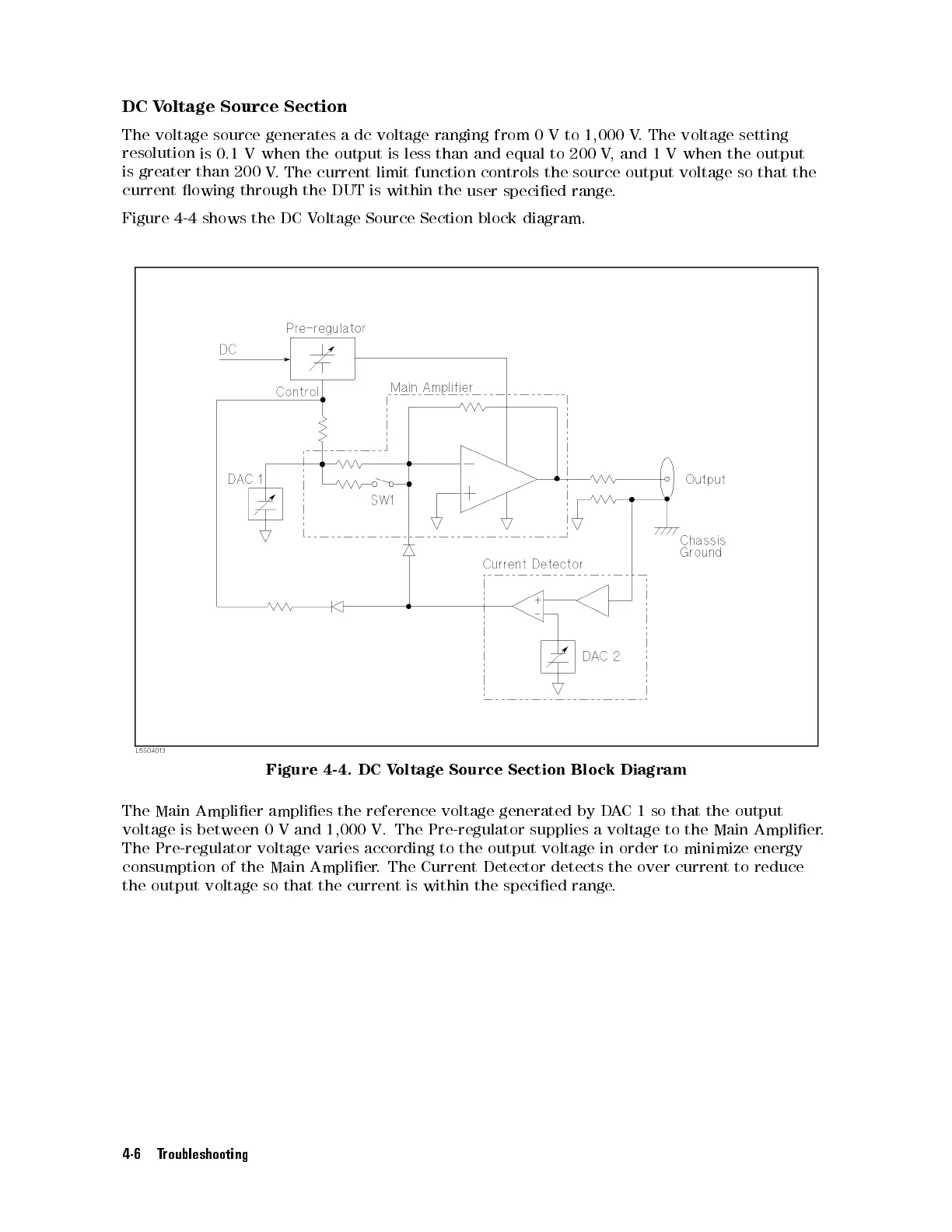

Figure
4-4
shows
the
DC
V
oltage
Source
Section
block
diagram.
Figure
4-4.
DC
V
oltage
Source
Section
Block
Diagram
The
Main
Amplier
amplies
the
reference
voltage
generated
by
D
AC
1so
that the
output
voltage
is
between
0
V
and
1,000
V
.
The Pre-regulator
supplies
a
voltage
to
the
Main
Amplier
.
The Pre-regulator voltage varies according to the output voltage in order to minimize energy
consumption of the Main Amplier
. The Current Detector detects the over current to reduce
the output voltage so that the current is within the specied range
.
4-6 Troubleshooting
