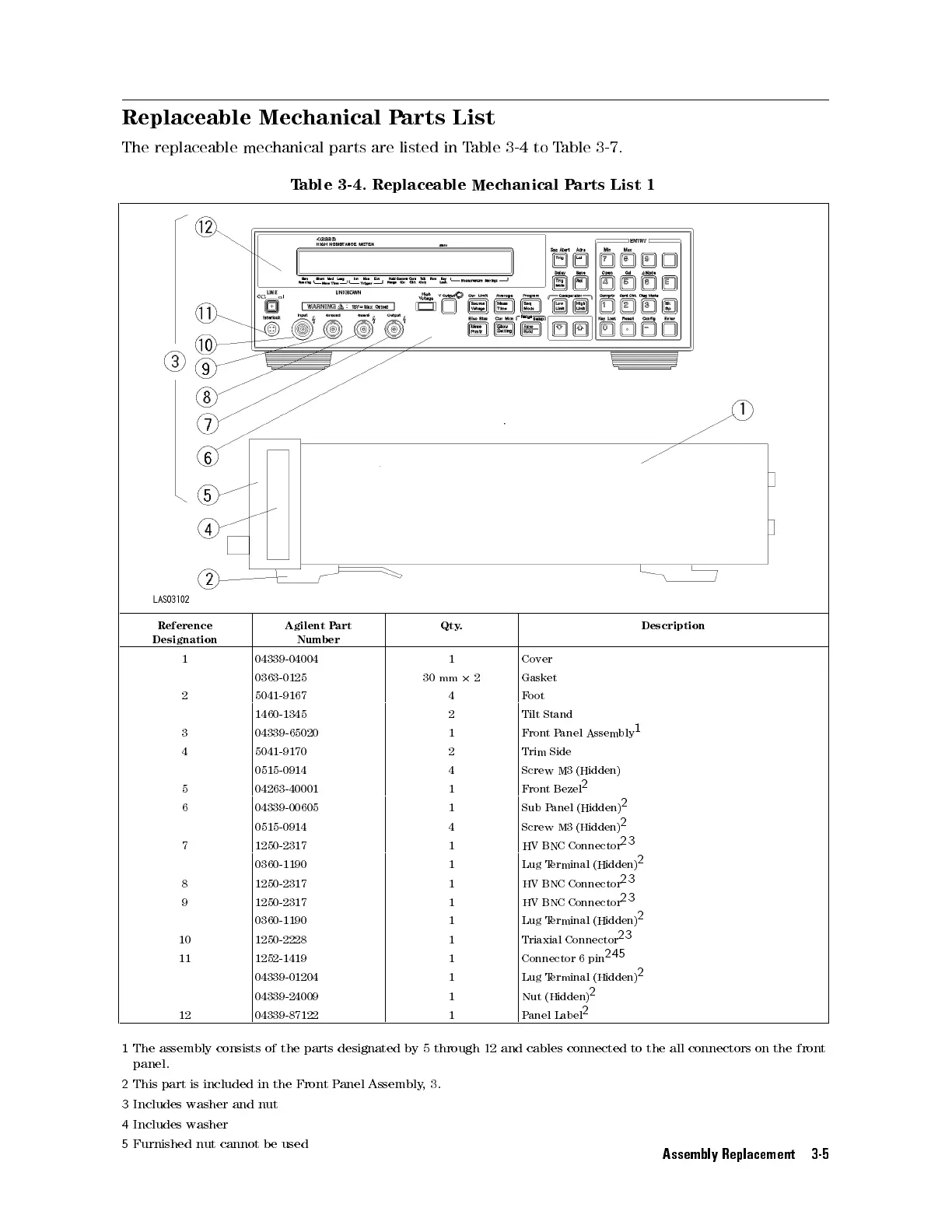

Agilent Technologies 4339B Service Manual

Replaceable Mechanical
Parts
List
The
replaceable
mechanical
parts
are listed
in T
able 3-4
to T
able 3-7
.
T
able
3-4.
Replaceable
Mechanical
P
arts List
1
Reference
Designation
Agilent
P
art
Number
Qty
.
Description
1 04339-04004 1 Cover
0363-0125 30
mm 2
2
Gasket
2 5041-9167 4 F
oot
1460-1345 2 Tilt
Stand
3 04339-65020 1 Front
P
anel
Assembly
1
4 5041-9170 2 Trim
Side
0515-0914 4 Screw
M3
(Hidden)
5 04263-40001 1 Front
Bezel
2
6 04339-00605 1 Sub
P
anel
(Hidden)
2
0515-0914 4 Screw
M3 (Hidden)
2
7 1250-2317 1 HV BNC Connector
2
3
0360-1190 1 Lug T
erminal (Hidden)
2
8 1250-2317 1 HV BNC Connector
23
9 1250-2317 1 HV BNC Connector
23
0360-1190 1 Lug T
erminal (Hidden)
2
10 1250-2228 1 Triaxial Connector
23
11 1252-1419 1 Connector 6 pin
245
04339-01204 1 Lug T
erminal (Hidden)
2
04339-24009 1 Nut (Hidden)
2
12 04339-87122 1 Panel Label
2
1 The assembly consists of the parts designated by 5 through 12 and cables connected to the all connectors on the front
panel.
2 This part is included in the Front Panel Assembly,3.
3 Includes washer and nut
4 Includes washer
5 Furnished nut cannot be used
Assembly Replacement 3-5
