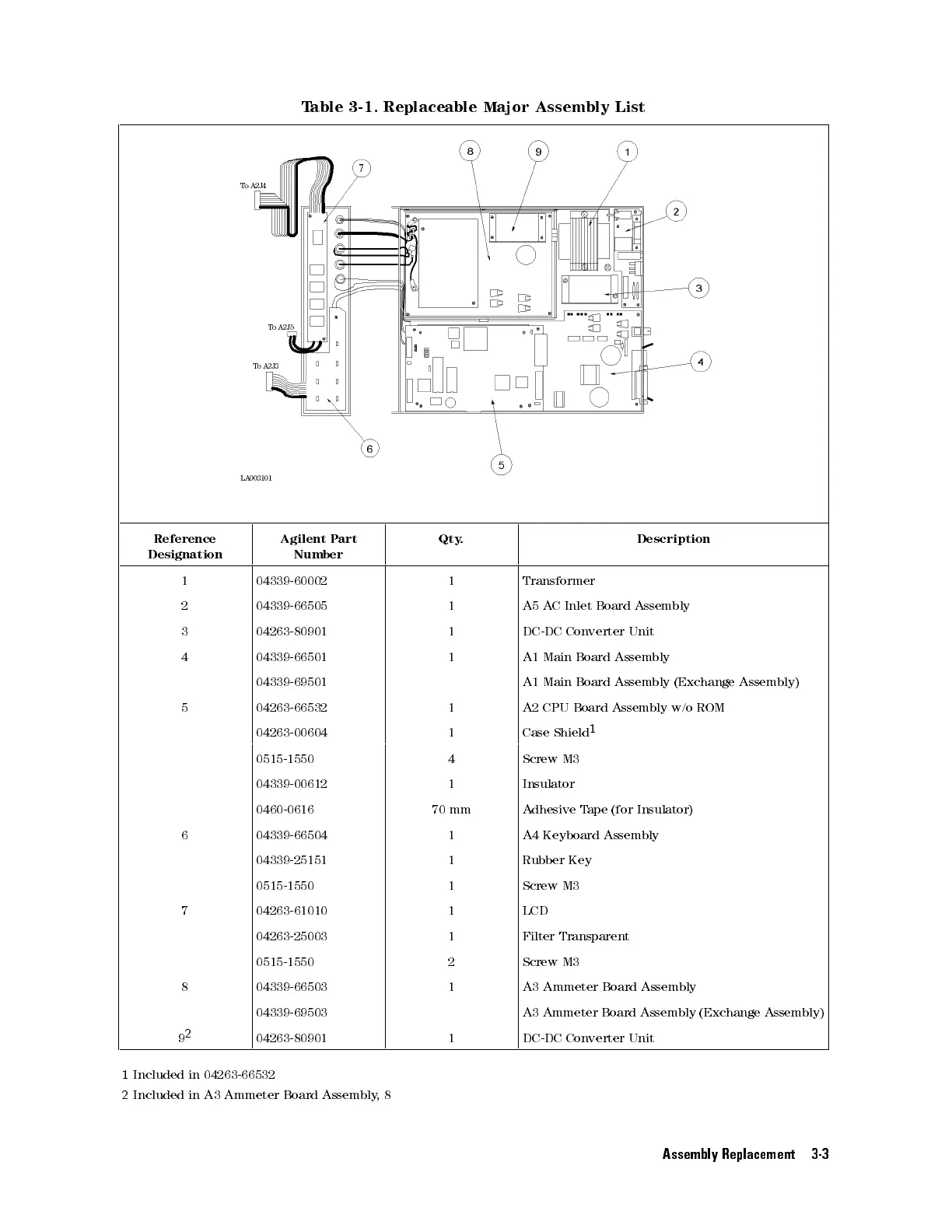

Agilent Technologies 4339B Service Manual

T
able 3-1.
Replaceable Major
Assembly List
Reference
Designation
Agilent
P
art
Number
Qty
.
Description
1 04339-60002 1 Transformer
2 04339-66505 1 A5
A
C
Inlet
Board
Assembly
3 04263-80901 1 DC-DC
Converter
Unit
4 04339-66501 1 A1
Main
Board
Assembly
04339-69501 A1
Main
Board
Assembly (Exchange
Assembly)
5 04263-66532 1 A2
CPU
Board
Assembly
w/o
ROM
04263-00604 1 Case
Shield
1
0515-1550 4 Screw
M3
04339-00612 1 Insulator
0460-0616 70
mm
A
dhesive
T
ape
(for
Insulator)
6 04339-66504 1 A4
Keyboard
Assembly
04339-25151 1 Rubber Key
0515-1550 1 Screw M3
7 04263-61010 1 LCD
04263-25003 1 Filter Transparent
0515-1550 2 Screw M3
8 04339-66503 1 A3 Ammeter Board Assembly
04339-69503 A3 Ammeter Board Assembly (Exchange Assembly)
9
2
04263-80901 1 DC-DC Converter Unit
1 Included in 04263-66532
2 Included in A3 Ammeter Board Assembly,8
Assembly Replacement 3-3
