Part # N7210 – 90006 NT 4.0 to Microsoft Windows XP Professional with Service Pack 2 Upgrade Procedure
Page 10 of 34
Printed in USA

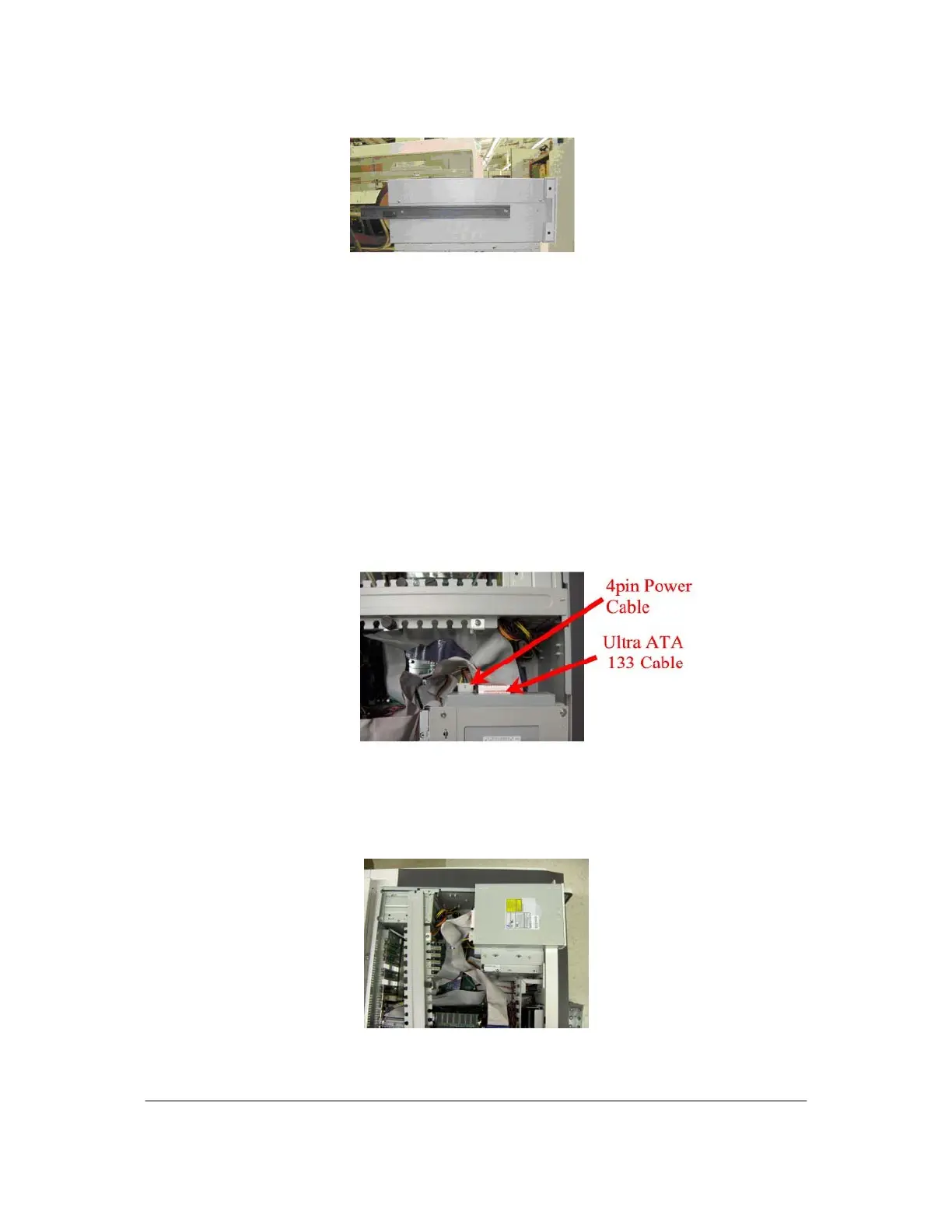

Figure 5 Tray fully extended on the 1.0 GHz IPC controller.
Note: If unable to pull the system controller tray completely out, it is ok to unplug any other connections in the back of the
controller. Any unplugged connections must be plugged back in to complete the process.
3. Remove the four (4) M-4 screws that secure the top cover using a torx T15 drive.
4. Remove the top cover of the system controller and set aside.
Install the New CD RW Drive
1. Locate the Ultra ATA 133 cable and the 4 pin power cables and disconnect both
from the existing CD RW Drive.
Figure 6 Ultra ATA 133 cable and 4 pin power cables on the 1.0 GHz IPC Controller.
2. Plug the Ultra ATA 133 cable and the 4 pin power cables into the new CD RW Drive.
3. Rest the new CD RW Drive on the top of the open system controller.
Figure 7 New CD RW Drive resting on top of the 1.0 Ghz IPC Controller with cables attached.
