Part # N7210 – 90006 NT 4.0 to Microsoft Windows XP Professional with Service Pack 2 Upgrade Procedure
Page 32 of 34
Printed in USA
Remove the CD Drive
Shutdown the System
1. Power off the system controller.
2. Power off the expansion chassis.
3. Unplug the power cord from the back of the IPC system controller.

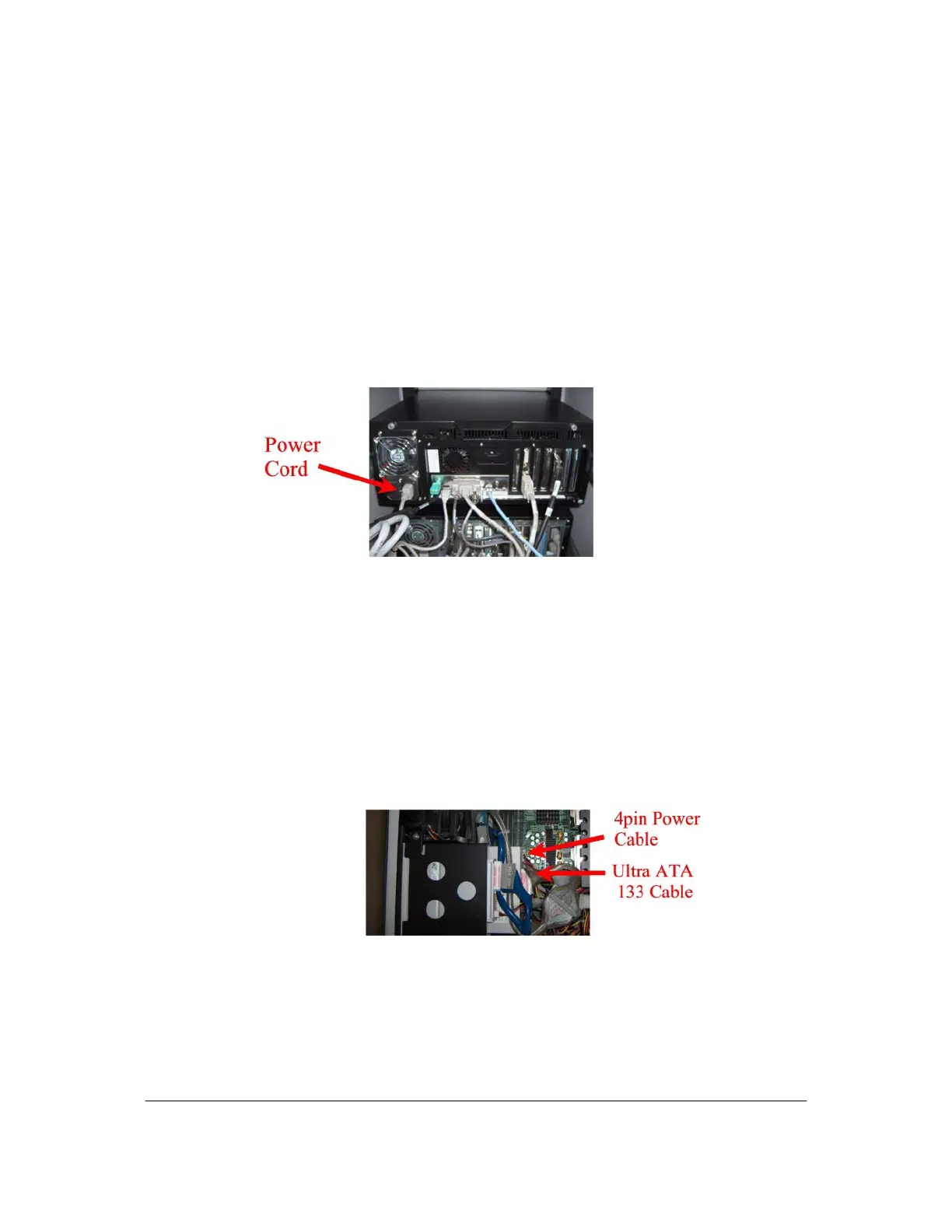

Figure 17 Power cord located on the back of the 2.8 Ghz IPC Controller
Remove the New CD RW Drive
1. Unplug the ultra ATA 133 cable and the 4 pin power cable from the new CD RW
drive.
2. Remove the new CD RW drive
3. Plug the ultra ATA 133 cable and the 4 pin power cables back into the DVD drive.
Figure 18 Ultra ATA 133 cable and the 4 pin power cables located on the back of the DVD drive.
Returning the 2.8 Ghz IPC Controller to the Electronics Bay
1. Replace the top cover of the system controller.
