Part # N7210 – 90006 NT 4.0 to Microsoft Windows XP Professional with Service Pack 2 Upgrade Procedure
Page 22 of 34
Printed in USA
21. In the “Advanced” tab, select “I/O Device Configuration.”
22. In the “Device” menu, the first option should be the KBC Clock Input.
23. Currently, this is set to 12Mhz. Select <ENTER>, select 6Mhz and hit <ENTER>
24. Select <F10>. Select Yes and press <Enter> to the Setup Confirmation window to
save the configuration changes and exit.
25. The system will automatically reboot.
Install the CD Drive

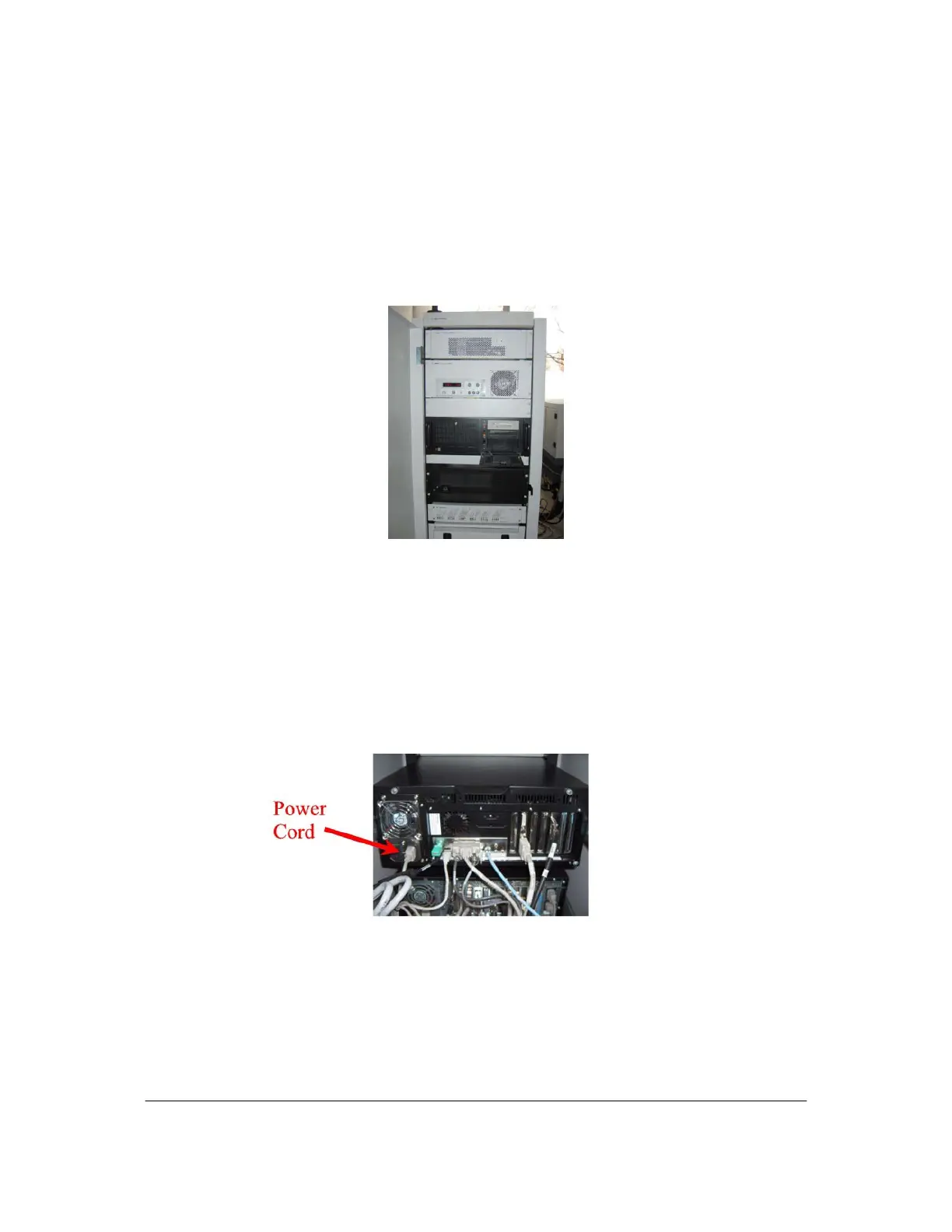

Figure 10 Front View of the Advantech 2.8 Ghz IPC Controller
Shutdown the System
1. Power off the system controller.
2. Power off the expansion chassis.
3. Unplug the power cord from the back of the IPC system controller.
Figure 11 Power cord located on the back of the Advantech 2.8 Ghz IPC controller.
Access the DVD Drive on the 2.8 Ghz Controller
1. Remove the four 10-32 screws securing the controller to the electronics bay (Figure
10). The screws are located on the front of the controller.
