14 Maintenance
2 Removing Covers and Components
5
If necessary, disconnect the transfer line from the
pneumatics assembly or GC.
a Remove the valve thermal enclosure. See “To Remove
the Valve Thermal Enclosure”.
b Depending on your hardware configuration, remove the
valve cover, or the valve/loop cover. See “To Remove
the Valve Cover” or “To Remove the Valve/Loop Cover”.
c Loosen the 3/16- inch nut in the internal reducer
(Figure 5).

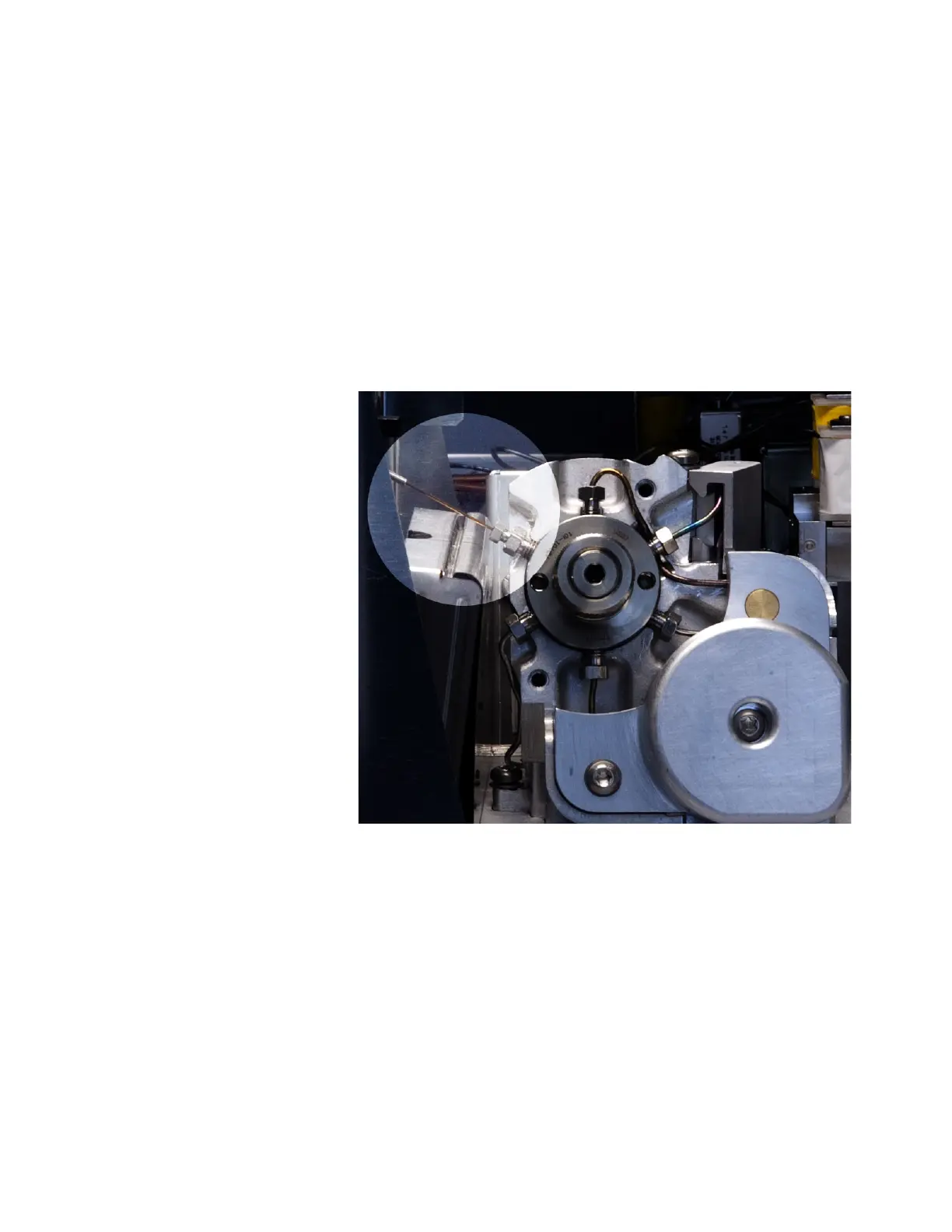

Figure 5 3/16-inch internal reducer with valve cover removed and loop
cover shown (the valve/loop cover is similar)
d Remove the fused silica column from the internal
reducer.
e Hold the transfer line by the mounting bracket, and
carefully slide the transfer line out of the Headspace
and set it aside.
