Completely loosen the two T- 20 Torx captive thumbscrews
that are inset at the front of the pneumatics assembly
(Figure 6).

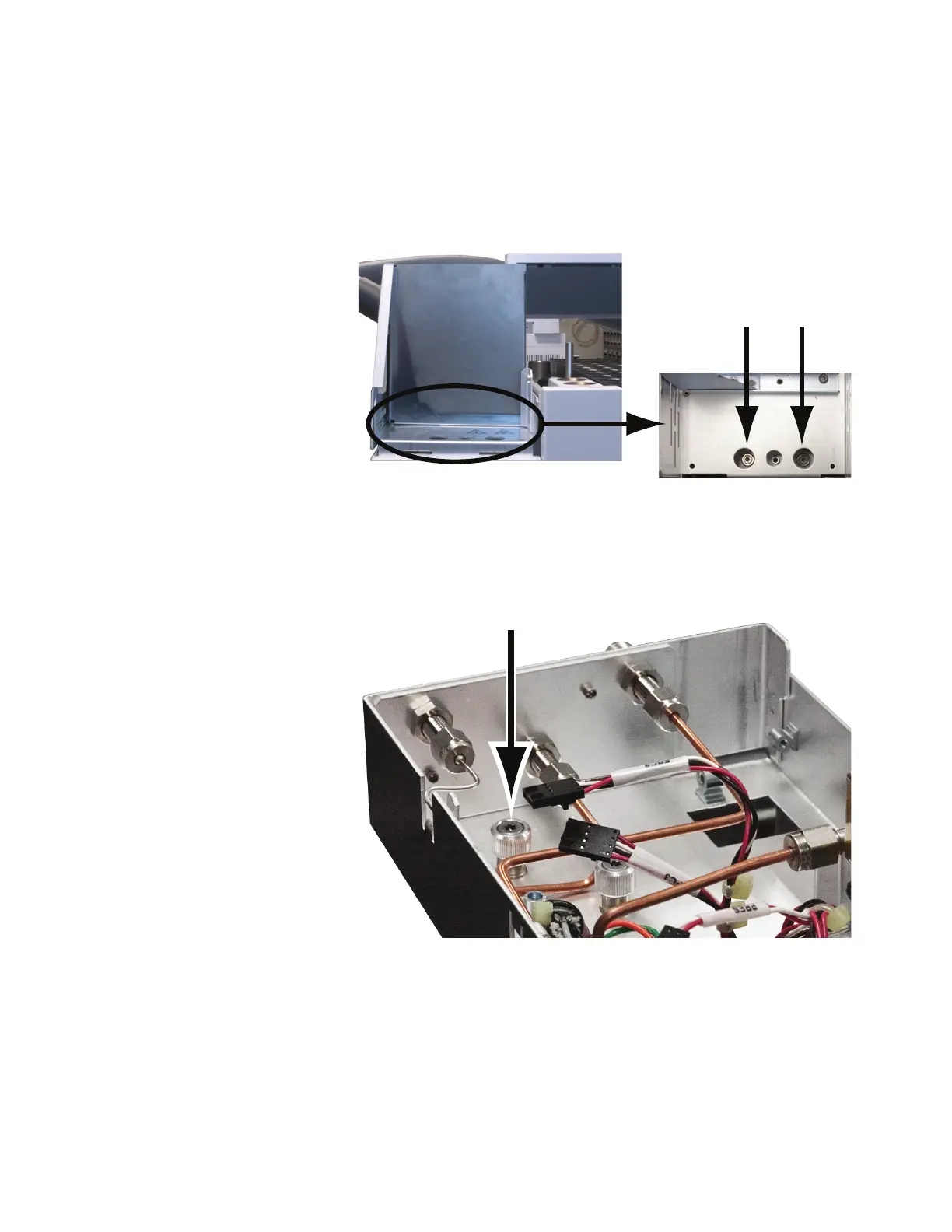

Figure 6 Locate and loosen the two front thumbscrews
7 Completely loosen the T- 20 Torx captive thumbscrew at
the back of the pneumatics assembly (Figure 7).
Figure 7 Overhead view of the back thumbscrew securing the
pneumatics assembly
