Maintenance 3
Maintenance 41
16
Rotate the sample loop towards the sample loop block (to
the right). Fit the upper end of the sample loop over and
behind connection 5 on the valve. Continue rotating the
sample loop until it fits into the recessed fitting in the
sample loop block as shown in Figure 29.

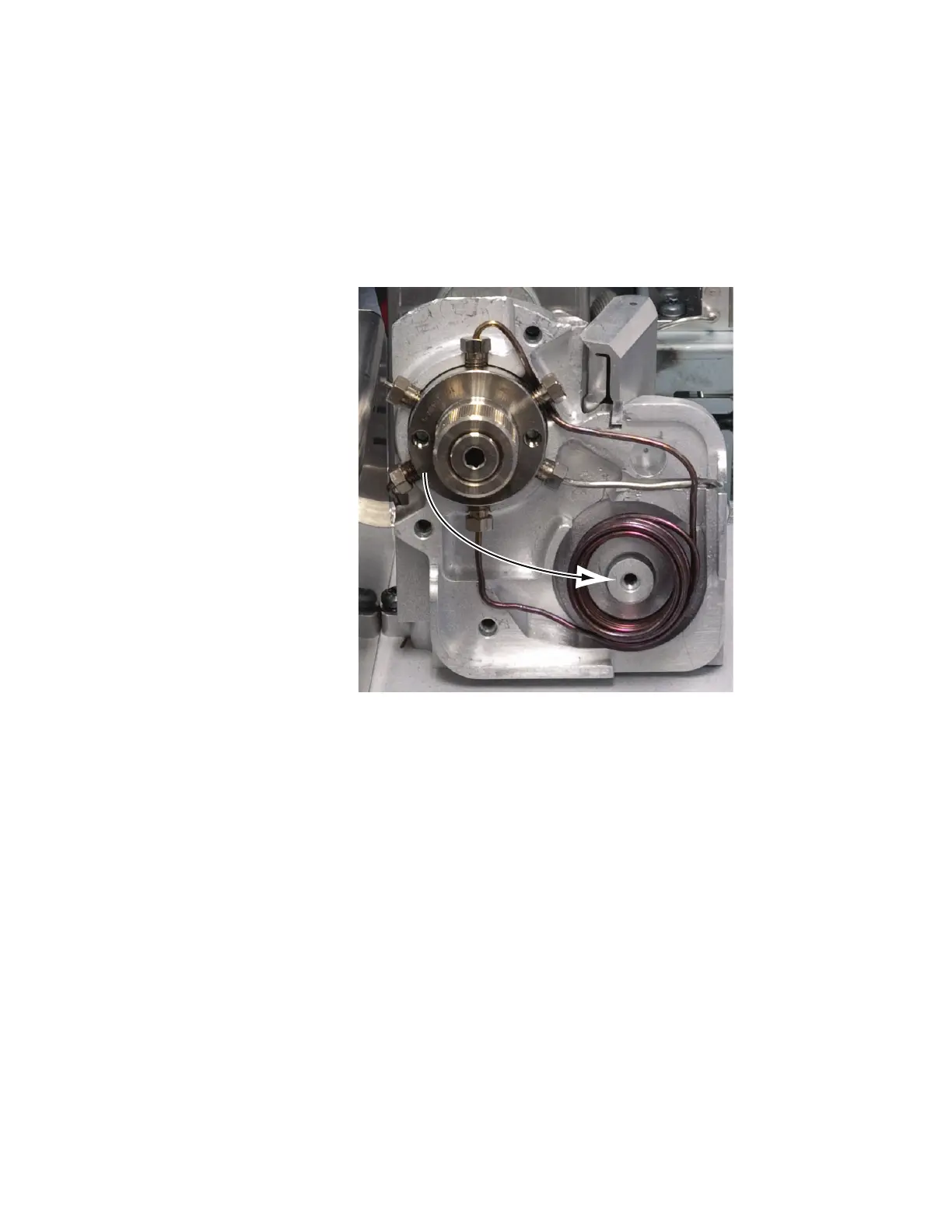

Figure 29 Rotate the sample loop into place
17 Tighten both nuts securing the sample loop to the 6 port
valve about 1/4- turn past finger tight.
18 Reinstall the sample probe (see “To Replace the Sample
Probe”), replace all covers, restore all gas flows, and plug
in the Headspace power cord.
