Agilent Technologies 7697A Maintenance

Maintenance 3
Maintenance 65
12
Gently slide the fused silica tubing into the internal
reducer until it bottoms. Tighten the 3/16- inch nut finger
tight, then an additional 1/4- turn. Test the connection by
gently pulling on the transfer line. The transfer line
should not slide out of the newly- made fittings. See
Figure 38.

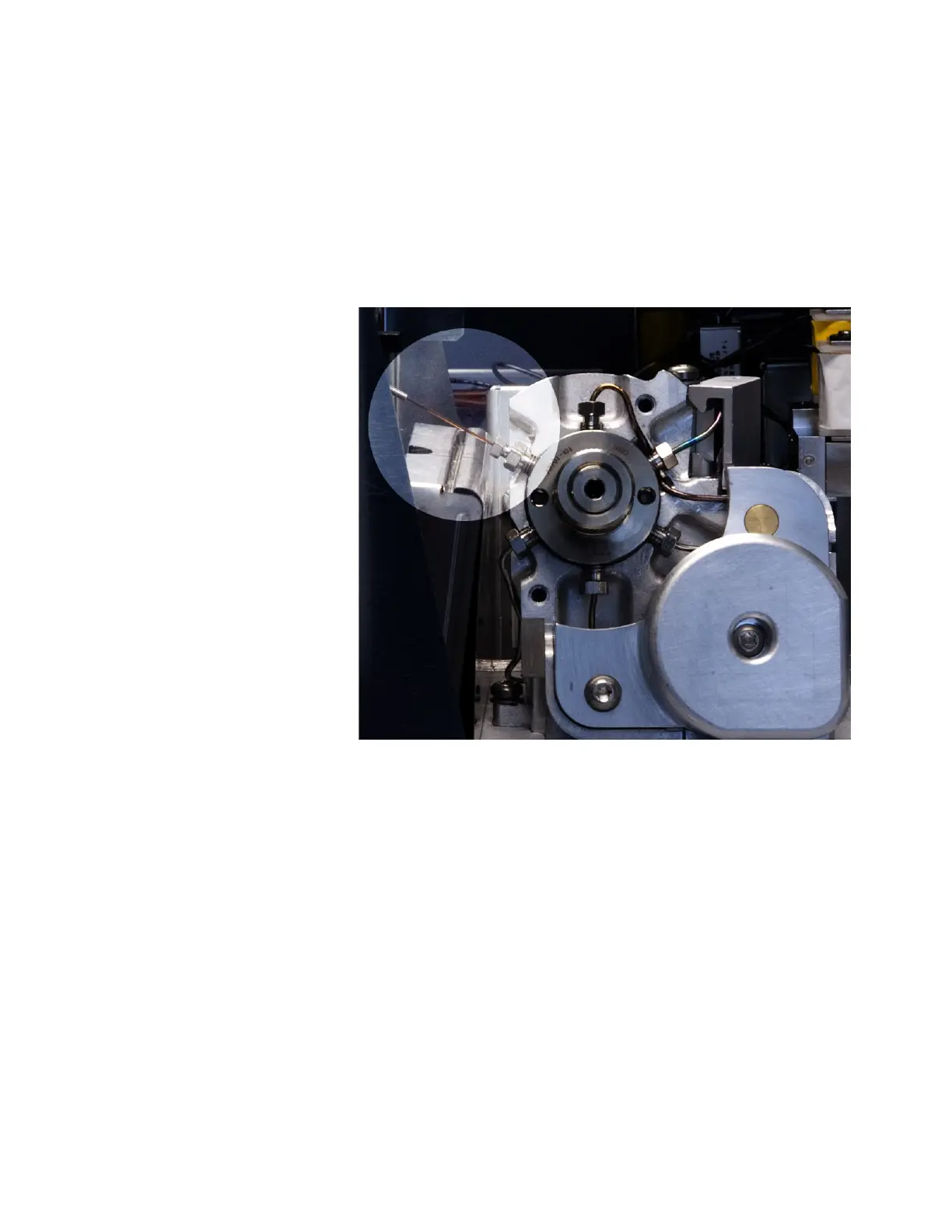

Figure 38 Transfer line installed into 6 port valve
13 Attach the other end of the transfer line to the GC inlet.
• To attach the transfer line to a split splitless or
multimode inlet, see “To Attach the Transfer Line to a
Split Splitless or Multimode Inlet”.
• To attach the transfer line to a volatiles interface, see
“To Attach the Transfer Line to a Volatiles Interface”.
• To attach the transfer line to a purged packed inlet,
see “To Attach the Transfer Line to a Purged Packed
Inlet”.
• To attach the transfer line to a cool on- column inlet,
see “To Attach the Transfer Line to a Cool On- Column
Inlet”.
