Chromatographic Symptoms
3
Agilent 7890 Series Troubleshooting
87

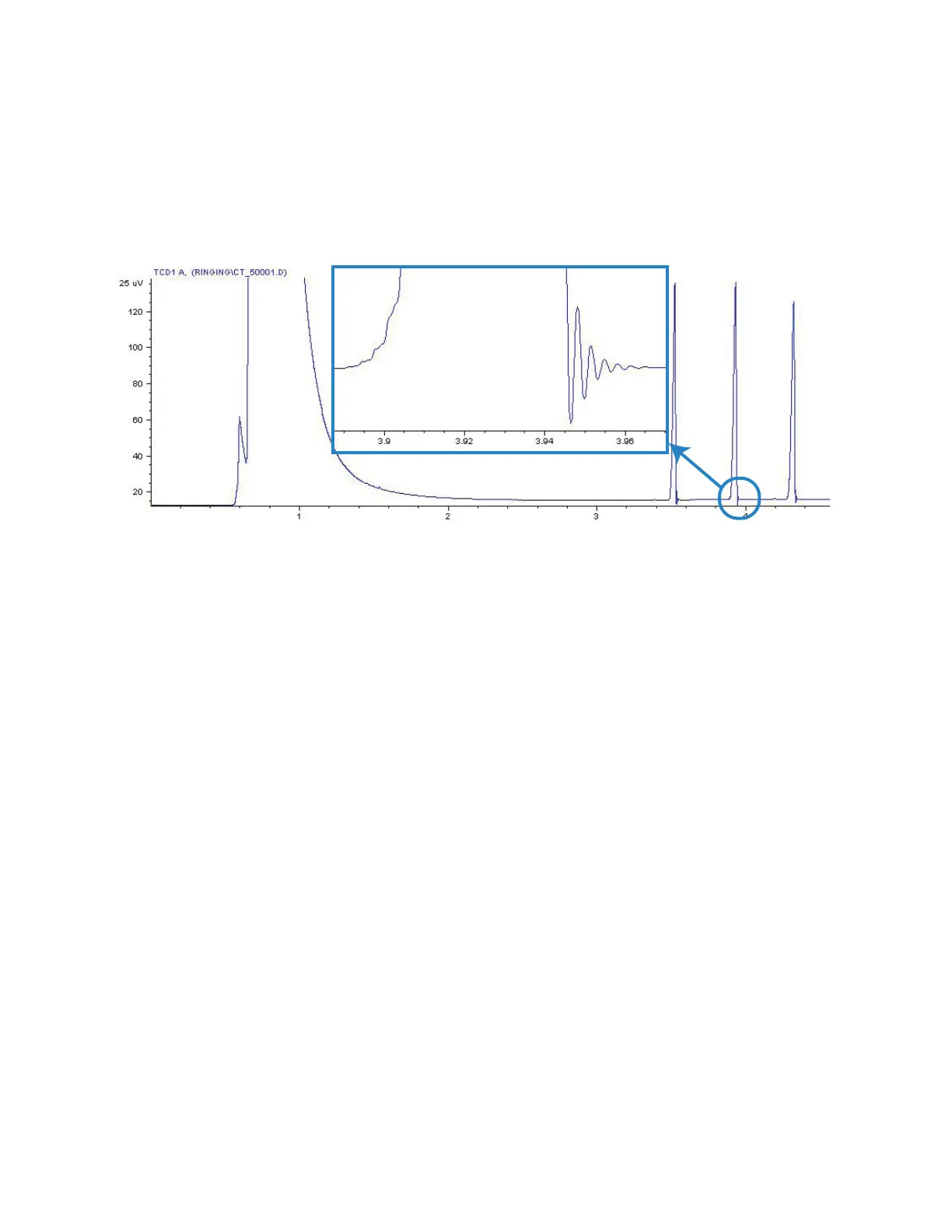

TCD Baseline Has Dampened Sinusoidal Noise T
railing Peaks (Ringing
Baseline)
W
rong
data r
ate i
s sel
ected
in the
data s
ystem
. F
or
TC
D, the
dat
a rate should be
5 Hz.
