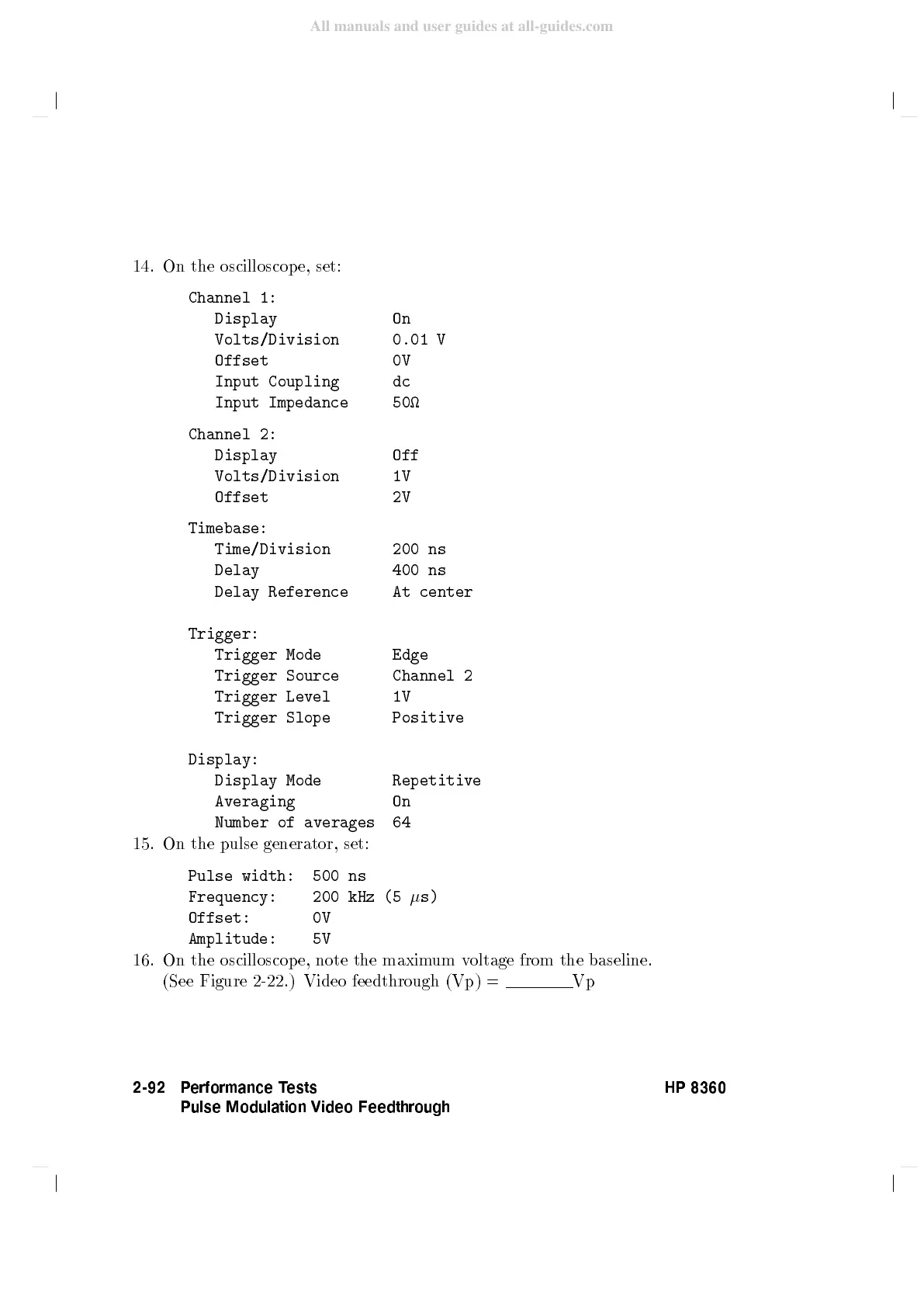

14.
On
the
oscilloscop
e,
set:
Channel
1:
Display On
Volts/Division
0.01
V
Offset
0V
Input Coupling
dc
Input
Impedance
50
Channel
2:
Display
Off
Volts/Division
1V
Offset
2V
Timebase:
Time/Division
200 ns
Delay
400
ns
Delay
Reference
At
center
Trigger:
Trigger
Mode
Edge
Trigger
Source
Channel
2
Trigger
Level
1V
Trigger
Slope
Positive
Display:
Display
Mode
Repetitive
Averaging
On
Number of
averages
64
15. On
the pulse
generator,
set:
Pulse
width: 500
ns
Frequency: 200 kHz (5
 s)
Offset: 0V
Amplitude: 5V
16. On the oscilloscop e, note the maxim
um v
oltage from the baseline.
(See Figure 2-22.) Video feedthrough (Vp) = Vp
2-92 Performance Tests
Pulse Modulation Video Feedthrough
