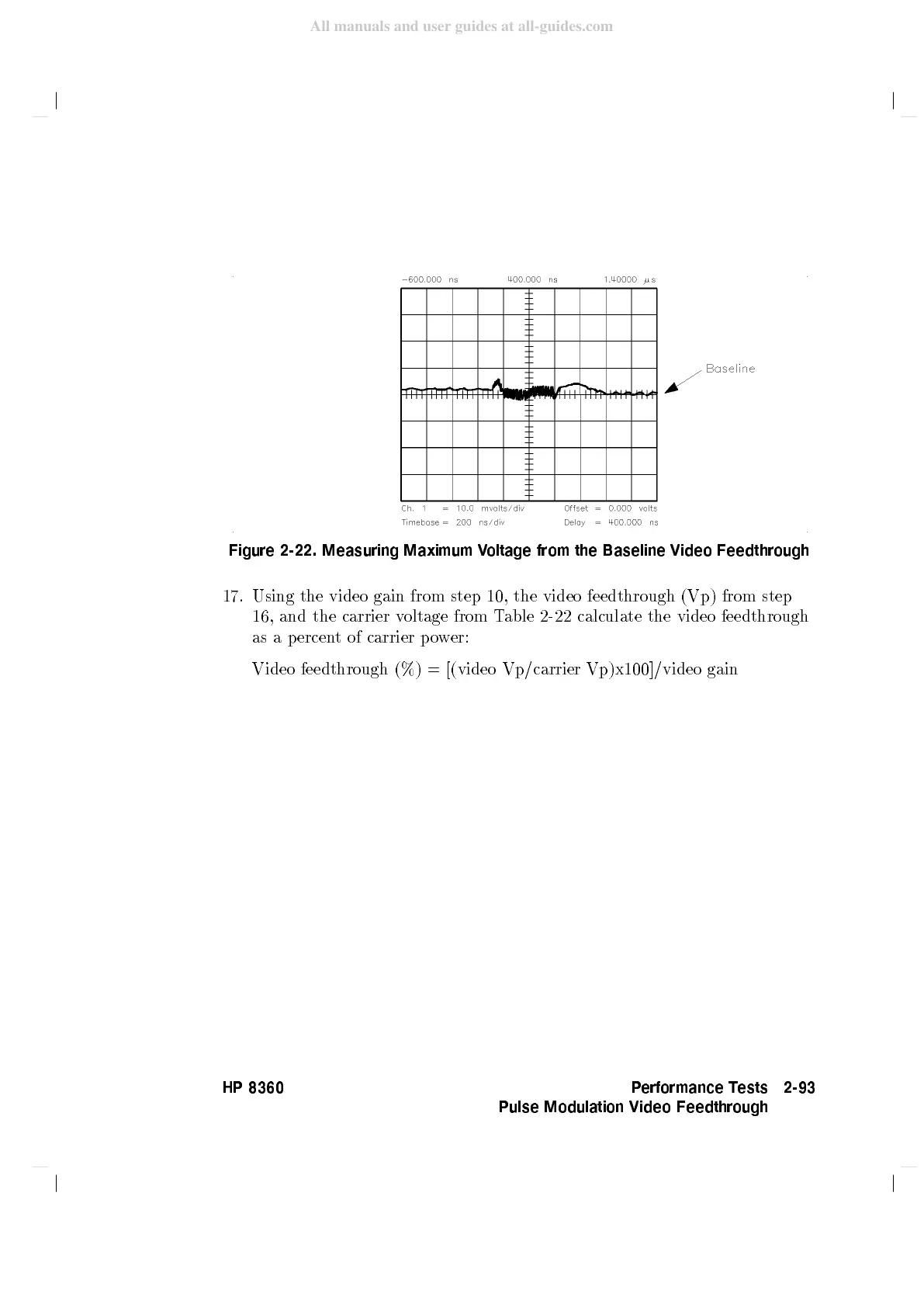

Figure 2-22.
Measuring Maximum
V
oltage
from
the
Baseline
Video
Feedthrough
17.
Using
the
video
gain
from
step
10,
the
video
feedthrough
(Vp) from
step
16,
and
the
carrier
v
oltage
from
T
able
2-22
calculate
the
video feedthrough
as
a
p
ercen
t
of
carrier
p
o
w
er:
Video
feedthrough
(%)
=
[(video
Vp/carrier
Vp)x100]/video
gain
HP 8360 Performance Tests
Pulse Modulation Video Feedthrough
2-93
