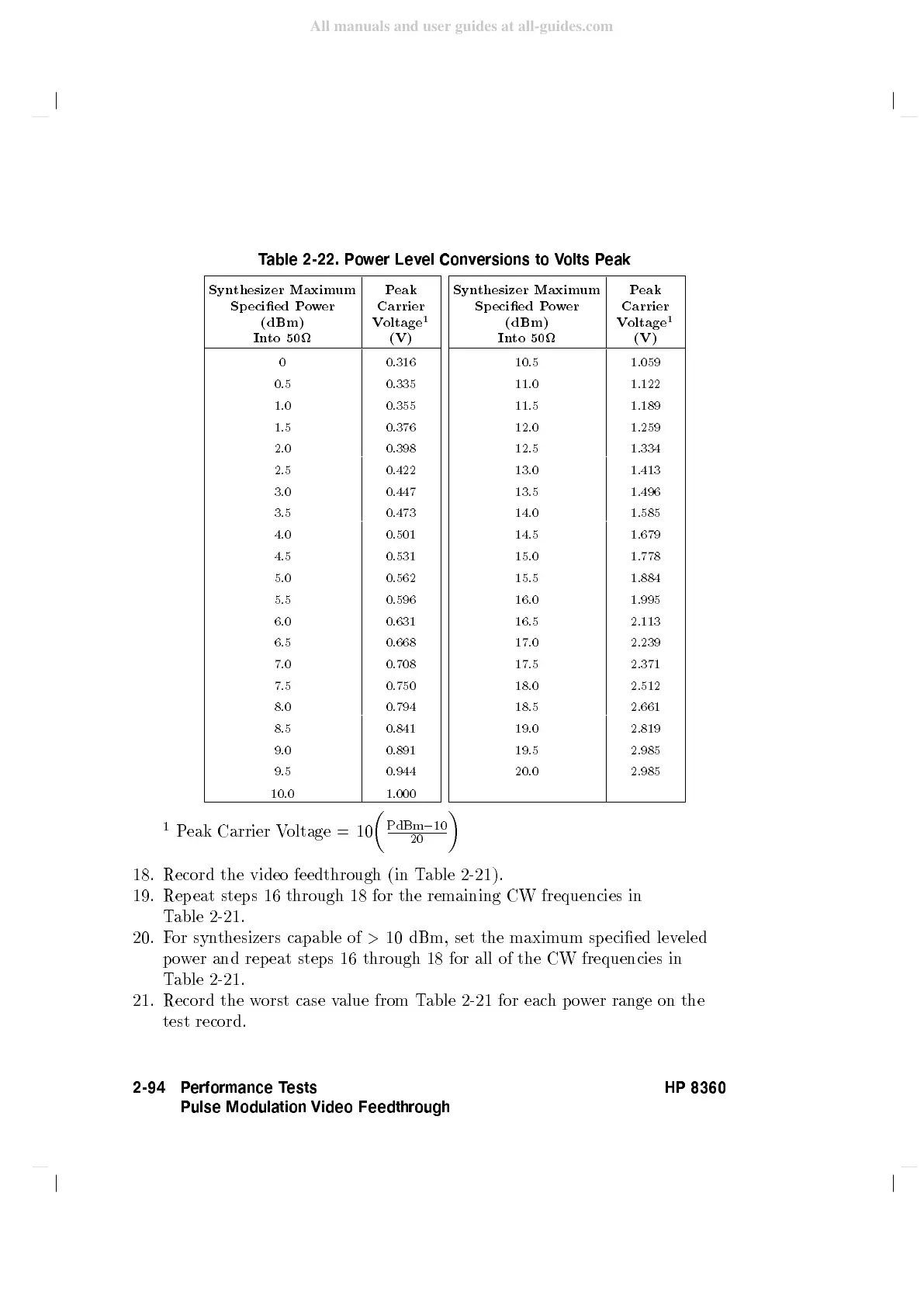

2-22.
P
o
w
er
Lev
el
Conv
ersions
to
V
olts
P
eak
Synthesizer
Maximum
Sp
ecied
P
o
w
er
(dBm)
Into
50
Peak
Carrier
V
oltage
1
(V)
0 0.316
0.5 0.335
1.0 0.355
1.5 0.376
2.0 0.398
2.5 0.422
3.0 0.447
3.5 0.473
4.0 0.501
4.5 0.531
5.0 0.562
5.5 0.596
6.0 0.631
6.5 0.668
7.0 0.708
7.5 0.750
8.0 0.794
8.5 0.841
9.0 0.891
9.5 0.944
10.0 1.000
Synthesizer
Maximum
Sp
ecied
P
o
w
er
(dBm)
Into
50
Peak
Carrier
V
oltage
1
(V)
10.5 1.059
11.0 1.122
11.5 1.189
12.0 1.259
12.5 1.334
13.0 1.413
13.5 1.496
14.0 1.585
14.5 1.679
15.0 1.778
15.5 1.884
16.0 1.995
16.5 2.113
17.0 2.239
17.5 2.371
18.0 2.512
18.5 2.661
19.0 2.819
19.5 2.985
20.0 2.985
1
P
eak
Carrier
V
oltage
=
10

PdBm
0
10
20

18.
Record
the
video
feedthrough
(in
T
able
2-21
).
19. Rep eat steps 16 through 18 for the remaining CW
frequencies in
T
able 2-21.
20. F
or syn
thesizers capable of
> 10 dBm, set the maximum sp
ecied leveled
po
wer and
repeat steps 16 through 18 for all of the CW frequencies in
Table 2-21 .
21. Record the w
orst case v
alue from T
able 2-21 for eac
hpo
wer
range on the
test record.
