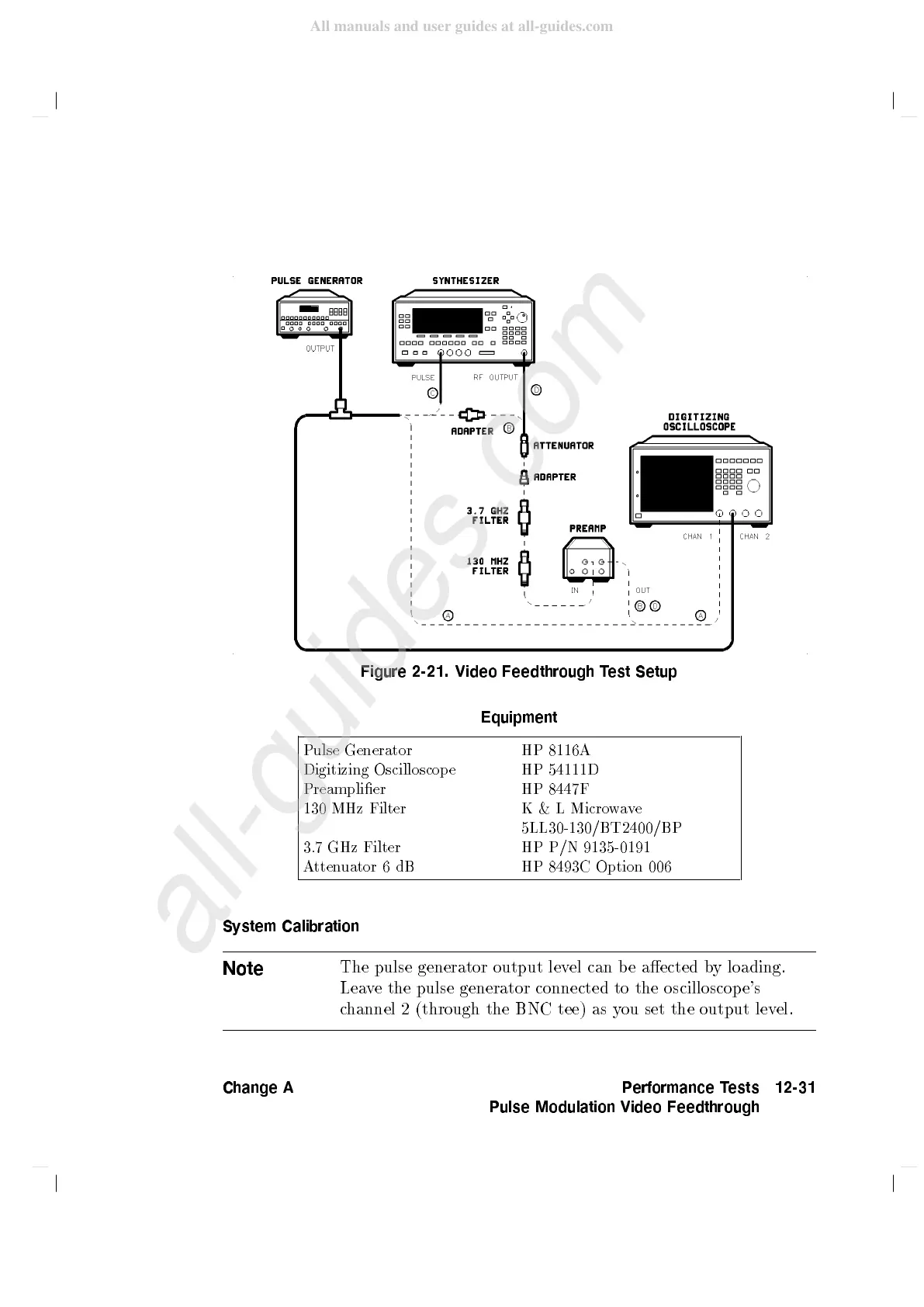

Figure 2-21.
Video
Feedthrough
T
est
Setup
Equipment
Pulse
Generator
HP
8116A
Digitizing
Oscilloscop
e
HP
54111D
Preamplier
HP
8447F
130
MHz
Filter
K
&
L
Microw
av
e
5LL30-130/BT2400/BP
3.7
GHz
Filter
HP
P/N 9135-0191
A
tten
uator
6
dB HP
8493C
Option
006
System
Calibration
Note
The pulse generator output lev
el can b
e aected b
y loading.
Leave the pulse generator connected to the oscilloscop e's
channel 2 (through the BNC tee) as y
ou set the
output level.
Change A Performance Tests
Pulse Modulation Video Feedthrough
12-31
