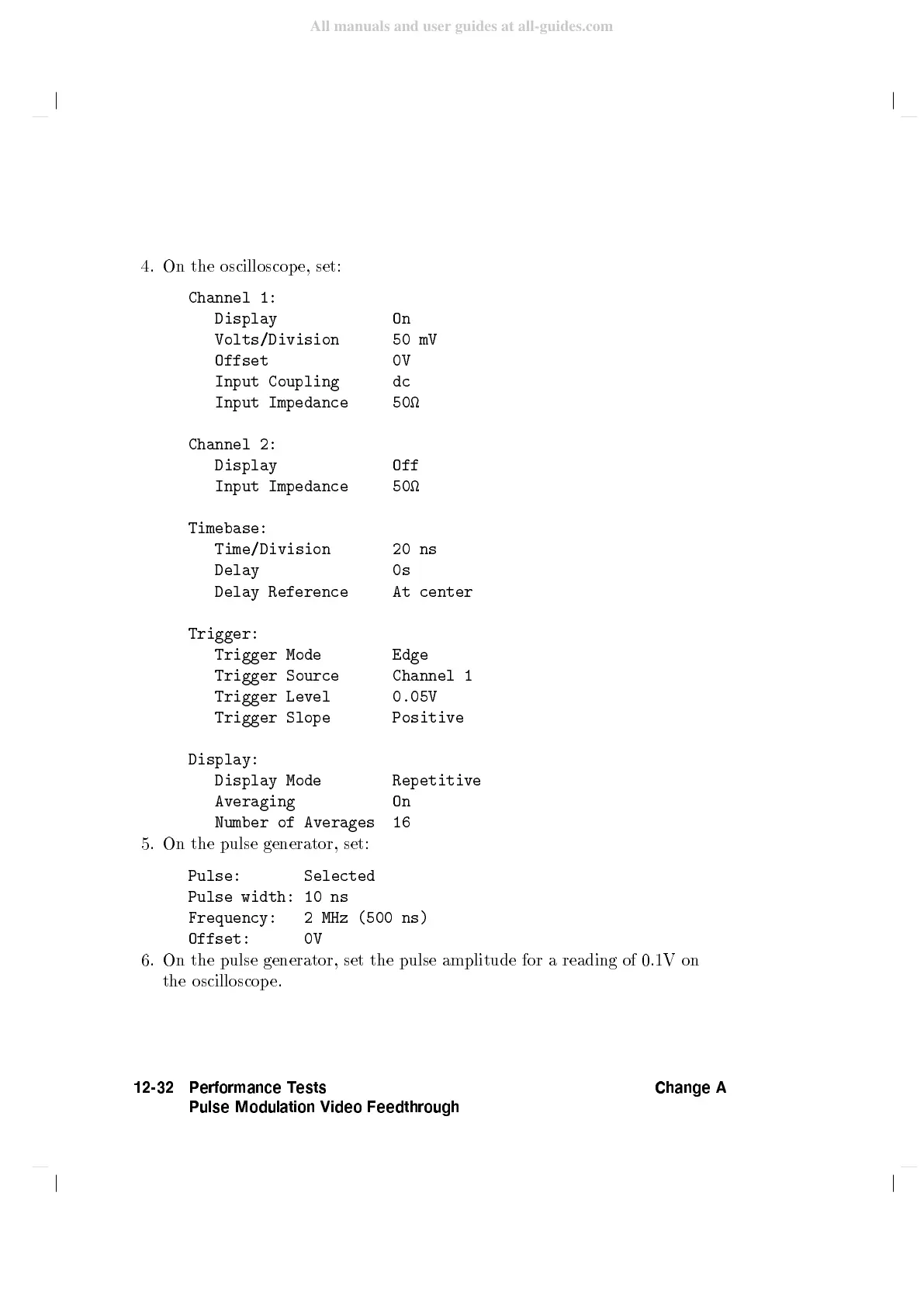

4.
On
the
oscilloscop
e,
set:
Channel
1:
Display On
Volts/Division
50
mV
Offset
0V
Input Coupling
dc
Input
Impedance
50
Channel 2:
Display
Off
Input
Impedance 50
Timebase:
Time/Division
20 ns
Delay
0s
Delay
Reference
At
center
Trigger:
Trigger
Mode
Edge
Trigger
Source
Channel
1
Trigger
Level
0.05V
Trigger
Slope
Positive
Display:
Display
Mode
Repetitive
Averaging
On
Number of
Averages
16
5. On
the pulse
generator,
set:
Pulse:
Selected
Pulse width: 10 ns
Frequency: 2 MHz (500 ns)
Offset: 0V
6. On the pulse generator, set the pulse amplitude for
a reading of 0.1V on
the oscilloscop e.
12-32 Performance Tests
Pulse Modulation Video Feedthrough
Change A
