2-18
Making Mixer Measurements
Conversion Loss Using the Frequency Offset Mode
4. Turn on frequency offset operation by pressing .
Notice in this high-side LO, down conversion configuration, the analyzer's source is actually sweeping
backwards, as shown in
Figure 2-13.
The measurement setup diagram is shown in Figure 2-14.. Note the RF frequency values are shown in
this illustration.

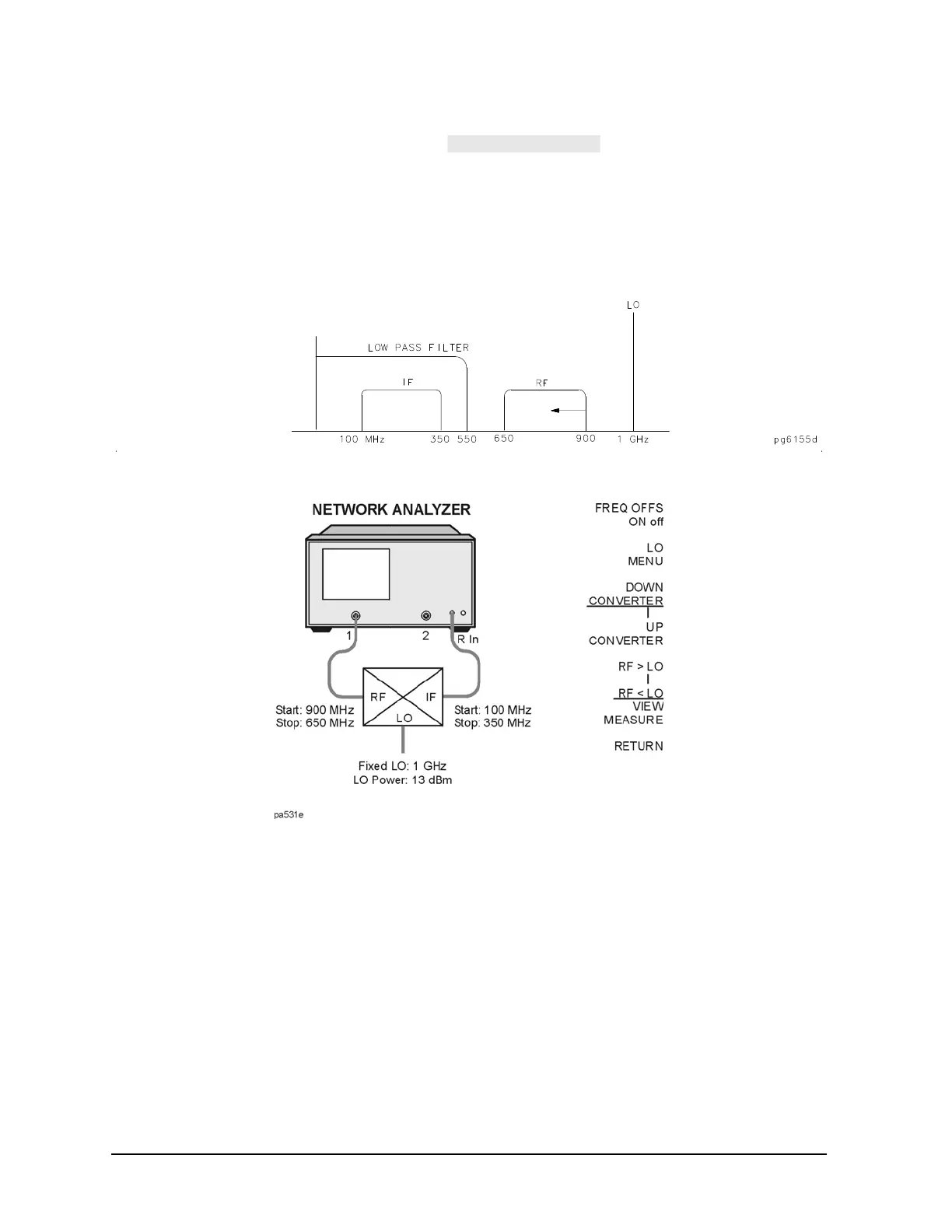

Figure 2-13 Diagram of Measurement Frequencies
Figure 2-14. Measurement Setup from Display
