Calibrating for Increased Measurement Accuracy
Calibrating for Noninsertable Devices
Figure 6-15.

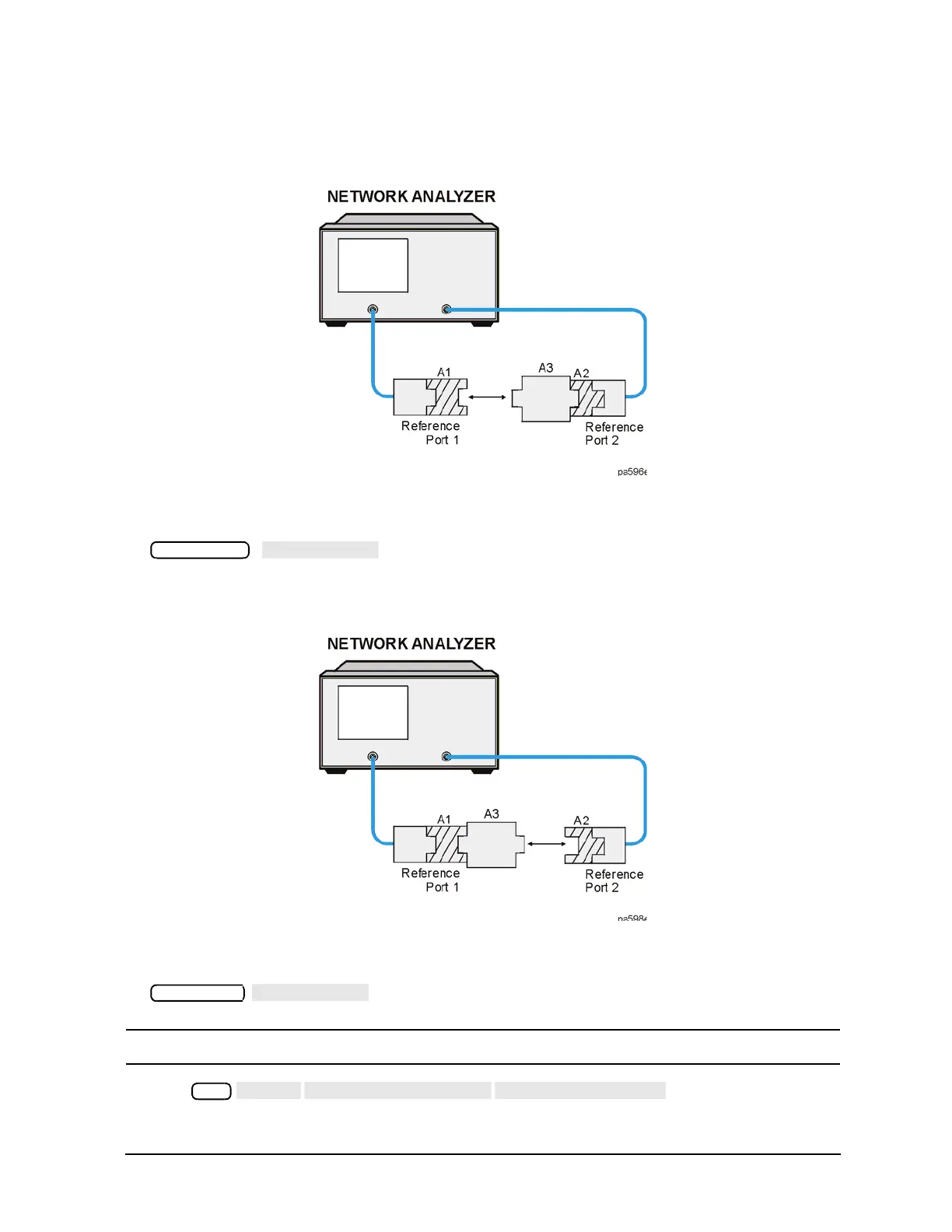

Figure 6-15 Two-P ort Cal Set 1
4. Perform a full 2-port calibration between ports 1 and 2 using calibration standards appropriate for the
connector type at port 1 (the connector type for adapter A1). Save the calibration by selecting
. Name the file "PORT1."
5. Connect adapter A3 to adapter A1 on port 1 as shown in Figure 6-16.
Figure 6-16 Two-P ort Cal Set 2
6. Perform a full 2-port calibration between ports 1 and 2 using calibration standards appropriate for the
connector type at port 2 (the connector type for adapter A2). Save the calibration by selecting
. Name the file "PORT2."
NOTE In the following steps, calibration data is recalled, not instrument states.
7. Press .
Save/Recall
SAVE STATE
Save/Recall
SAVE STATE
Cal
MORE
ADAPTER REMOVAL
RECALL CAL SETS
